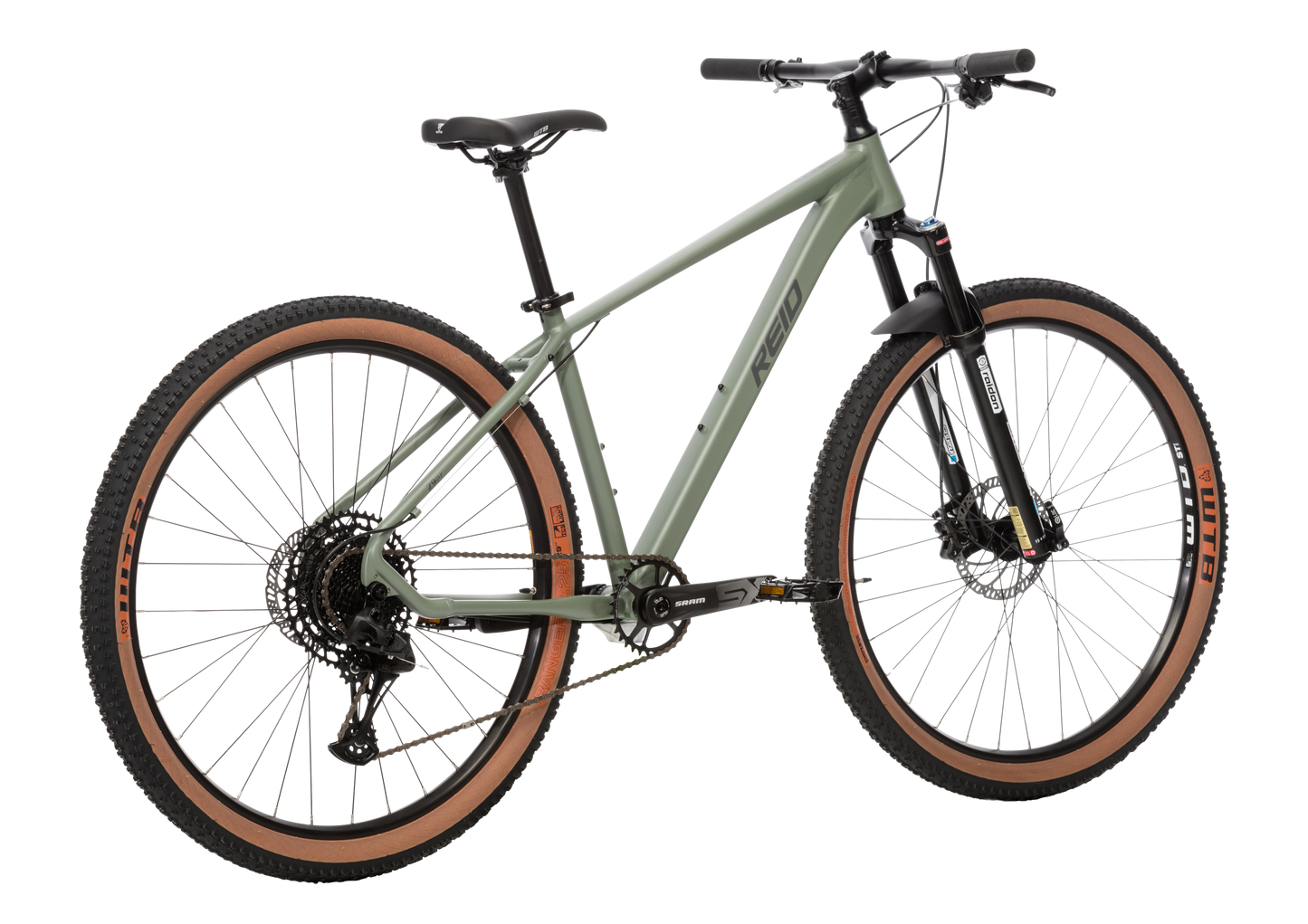

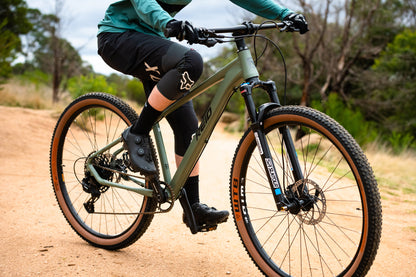

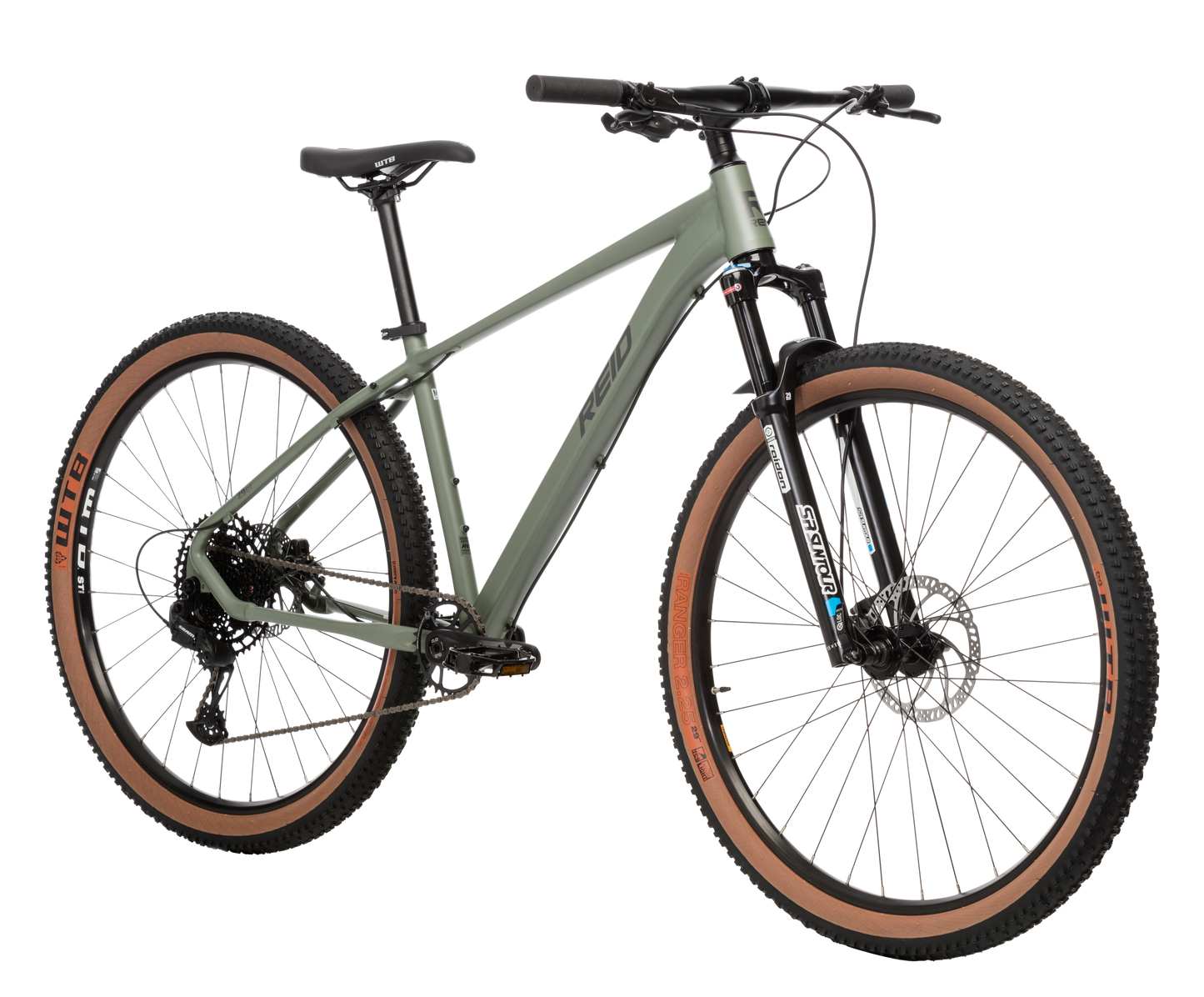

The Neon mountain bike is the choice for riders who appreciate details. Finished with SRAM and WTB kit - this bike represents a refinement of the modern hardtail. Rocks, dirt and jumps are all in a day’s work.
The Neon is a performance 29er hardtail mountain bike designed for impressive handling and control. In the dirt and in the air, this is a confidence-inspiring mountain bike that begs to be pushed.
Geometry and spec choices on this mountain bike were made to deliver maximum fun at an impressive price.

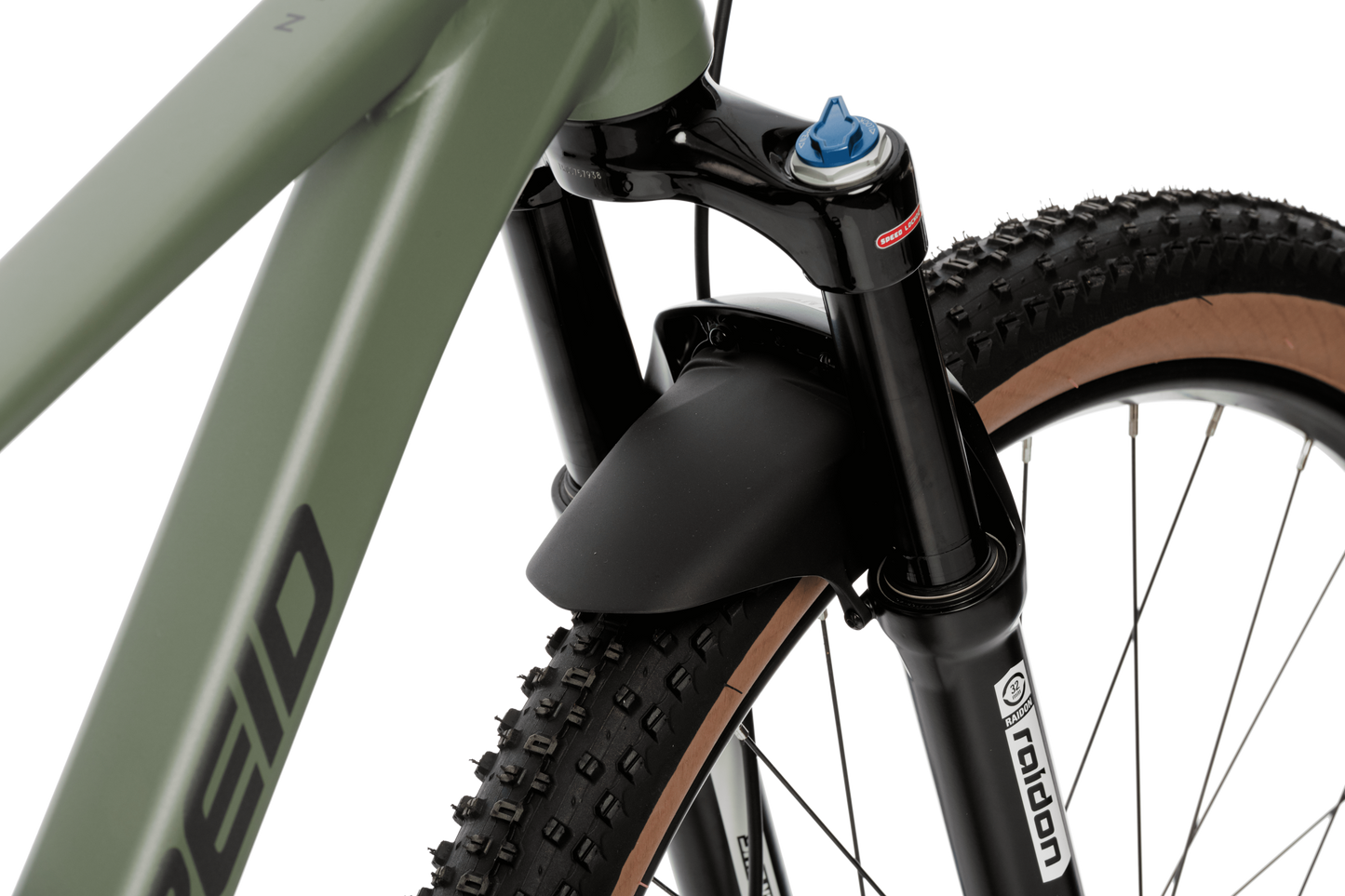

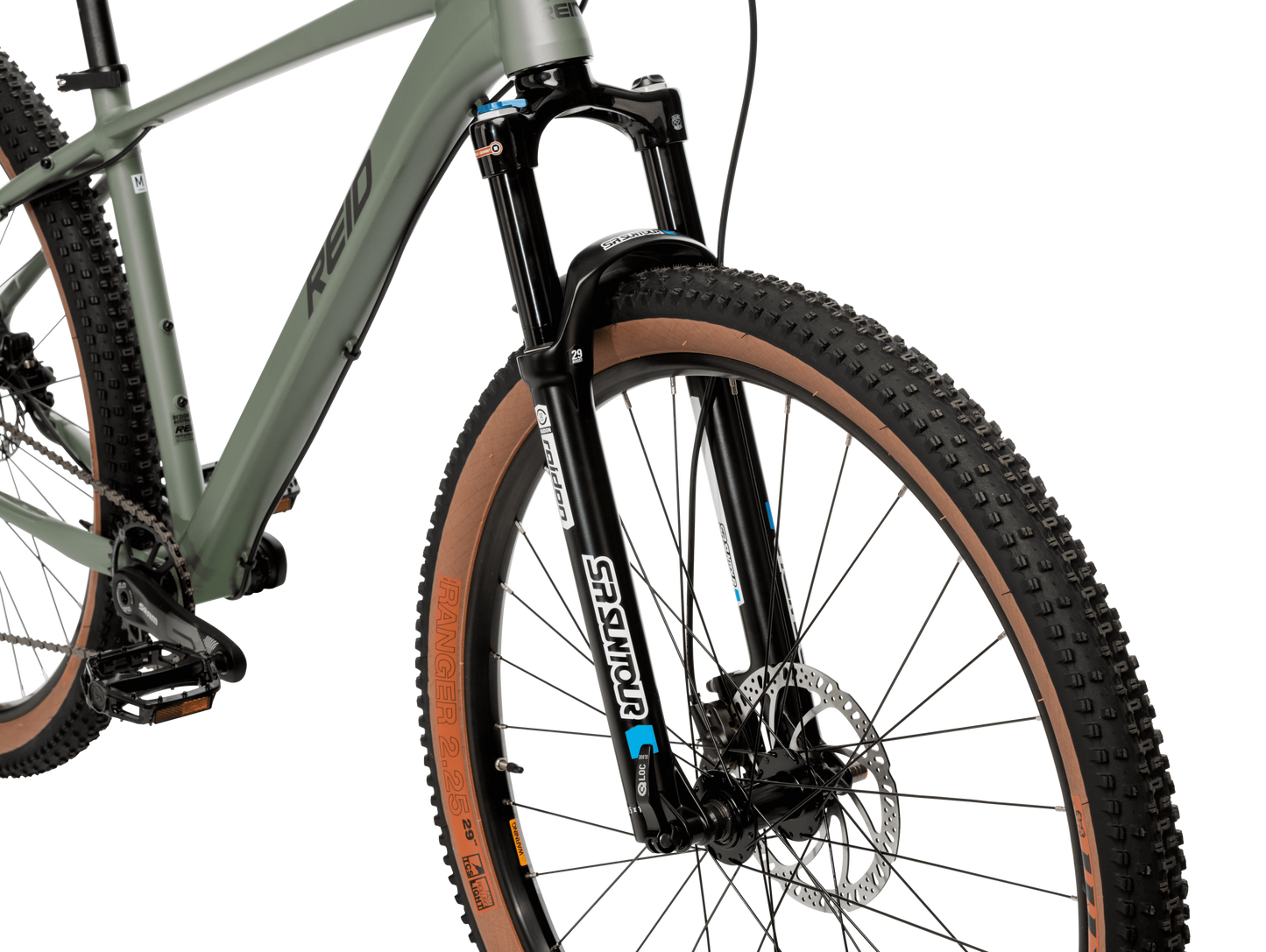

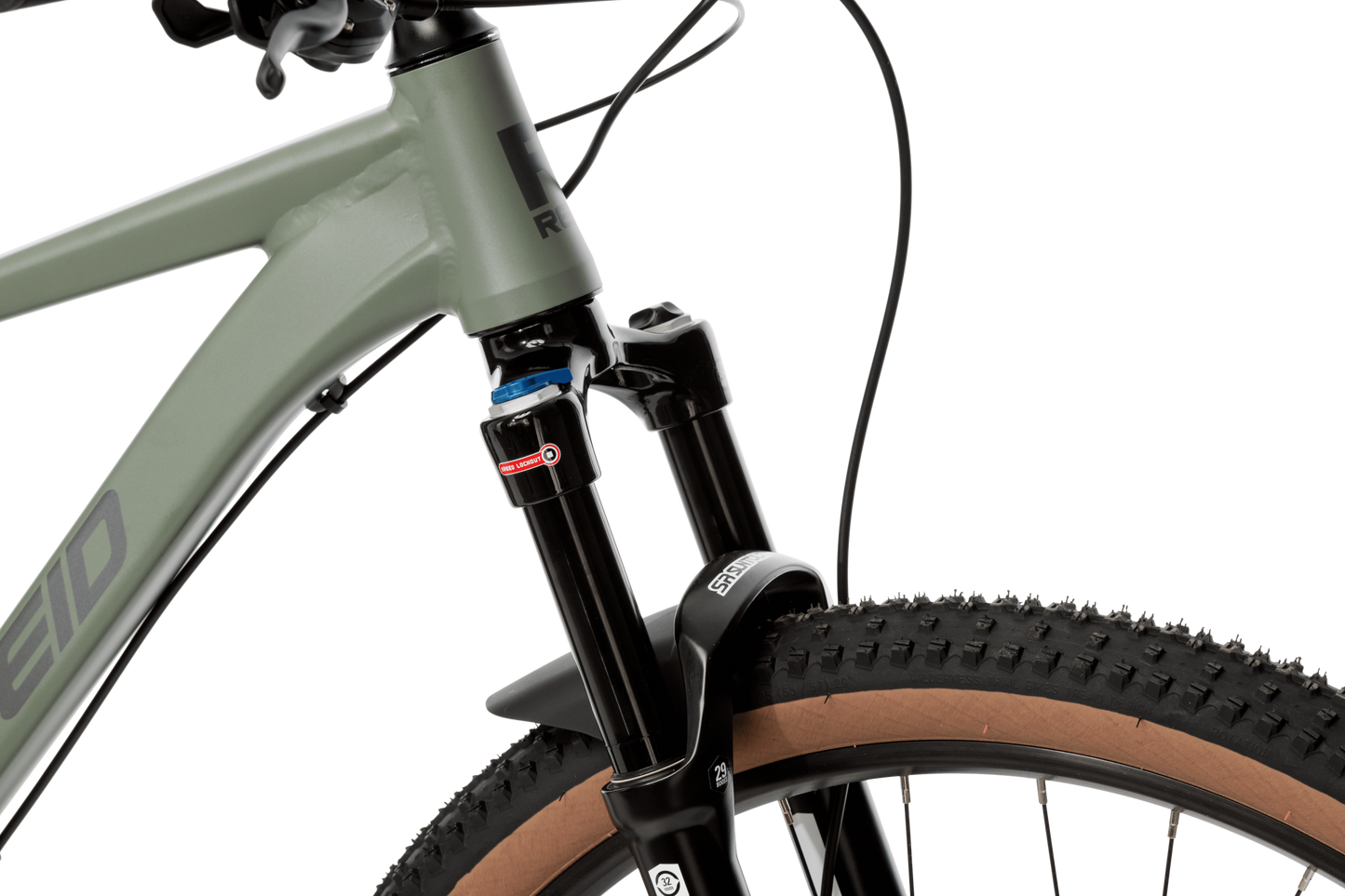

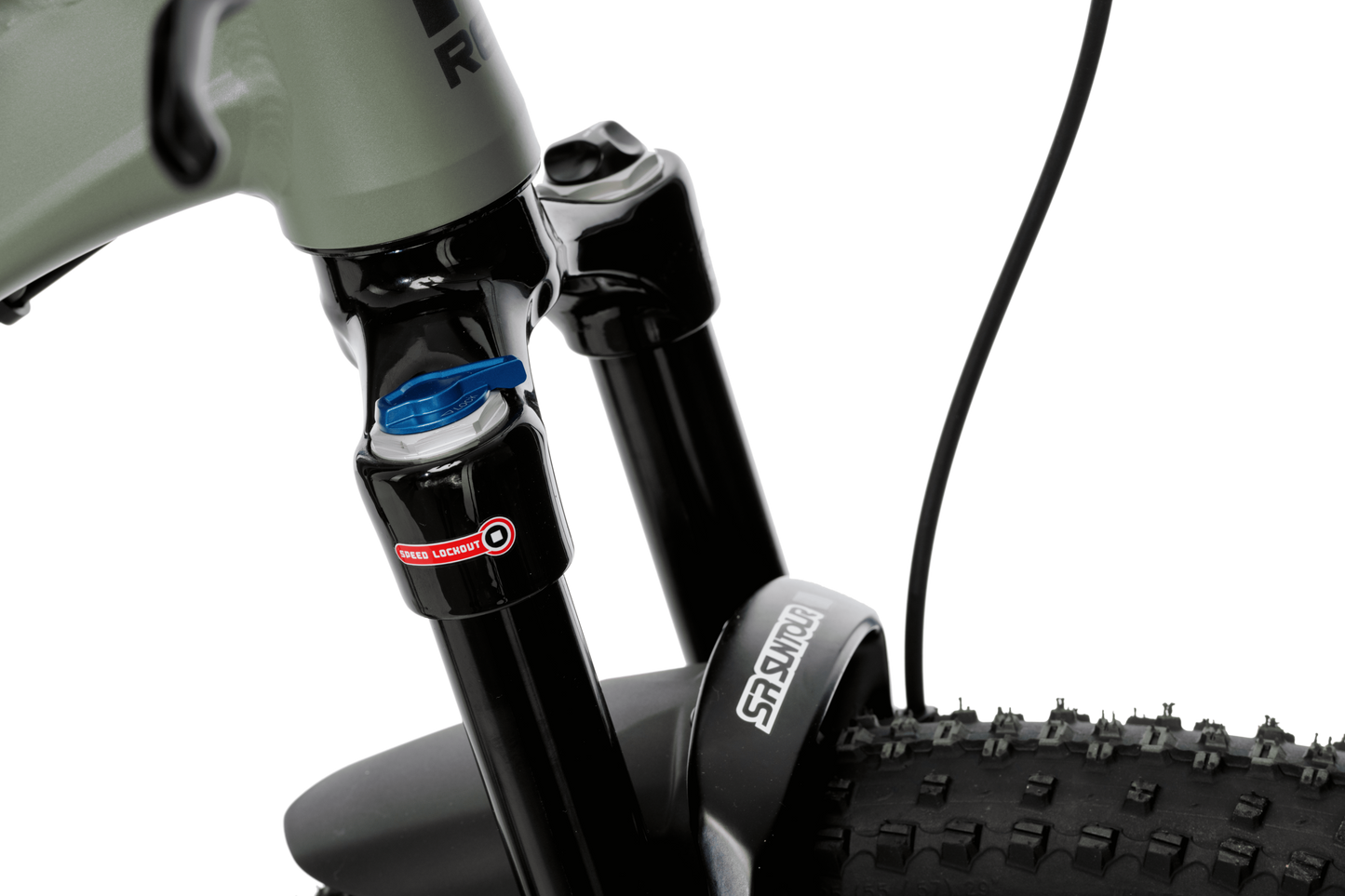

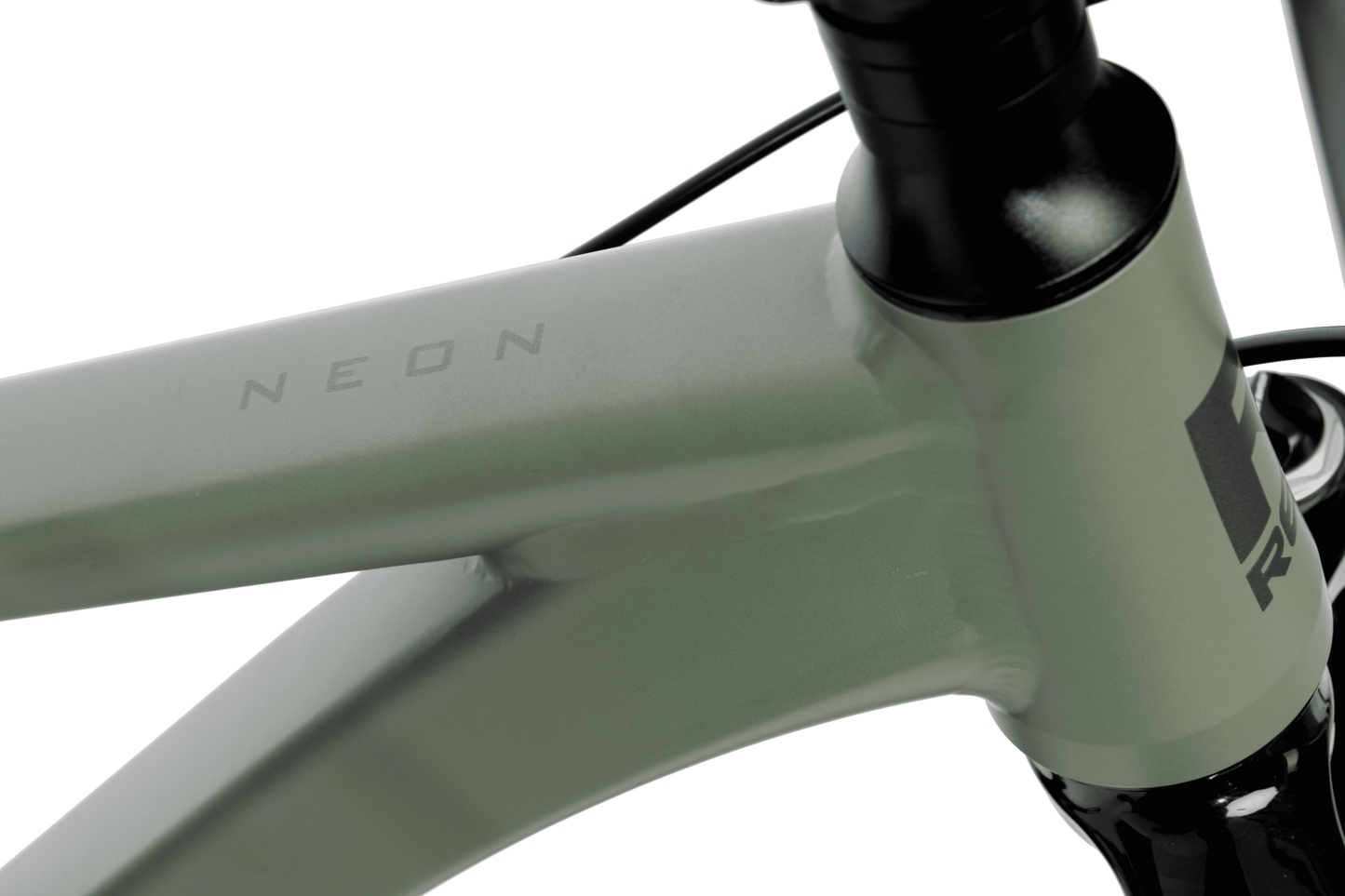

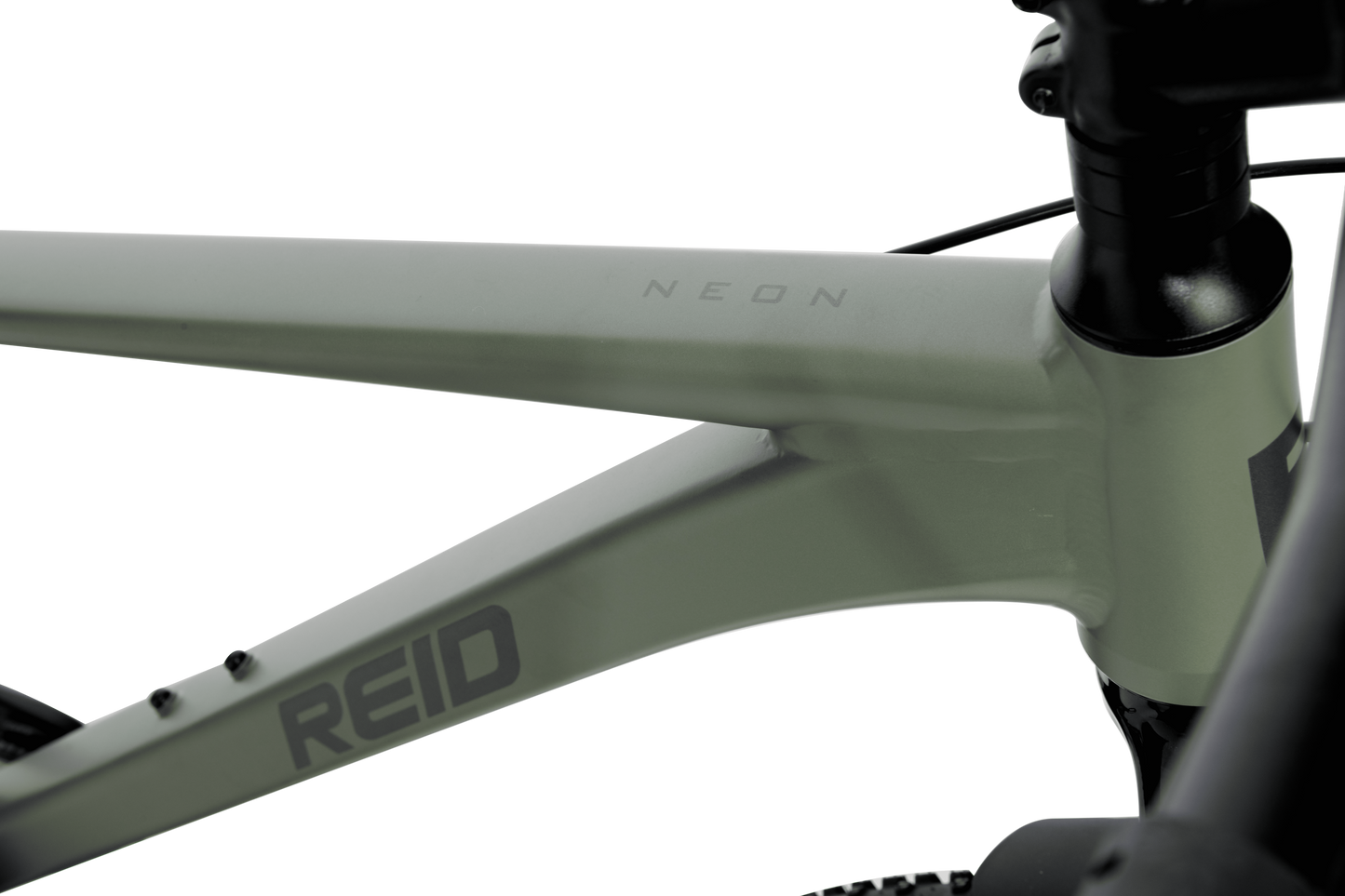

This mountain bike frame is a lightweight double-butted 6061 hydroformed alloy with modern trail geometry. This 29er mountain bike also features a low standover top tube for riders who like to throw the bike around and hit some jumps. The Neon also sees an improved 100mm travel Suntour Raidon 32 suspension fork up front. This lightweight and easily adjustable air fork also features a hydraulic lockout for plush descents or efficient climbing.

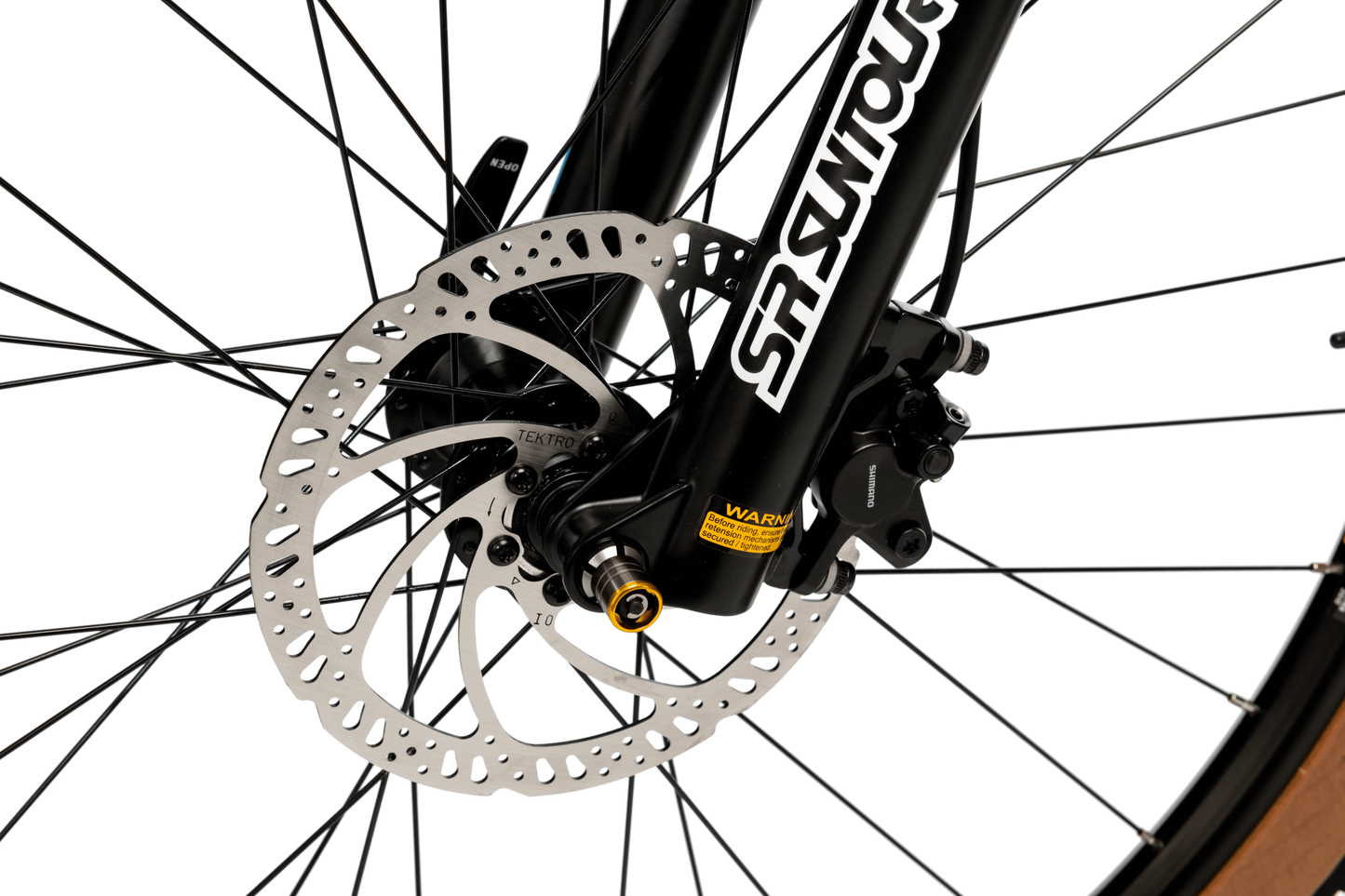

Braking power and control is delivered by the reliable and smooth Shimano MT200 Hydraulic Disc brakes. Hydraulics offer more power with less lever force required than other systems, which gives better modulation and control in all riding conditions.
Riding with a single chainring up front with no derailleur is the preferred setup for Mountain Biking. The simplicity means more clearance over rocks and logs and one less lever to think about when pushing yourself on the trails.

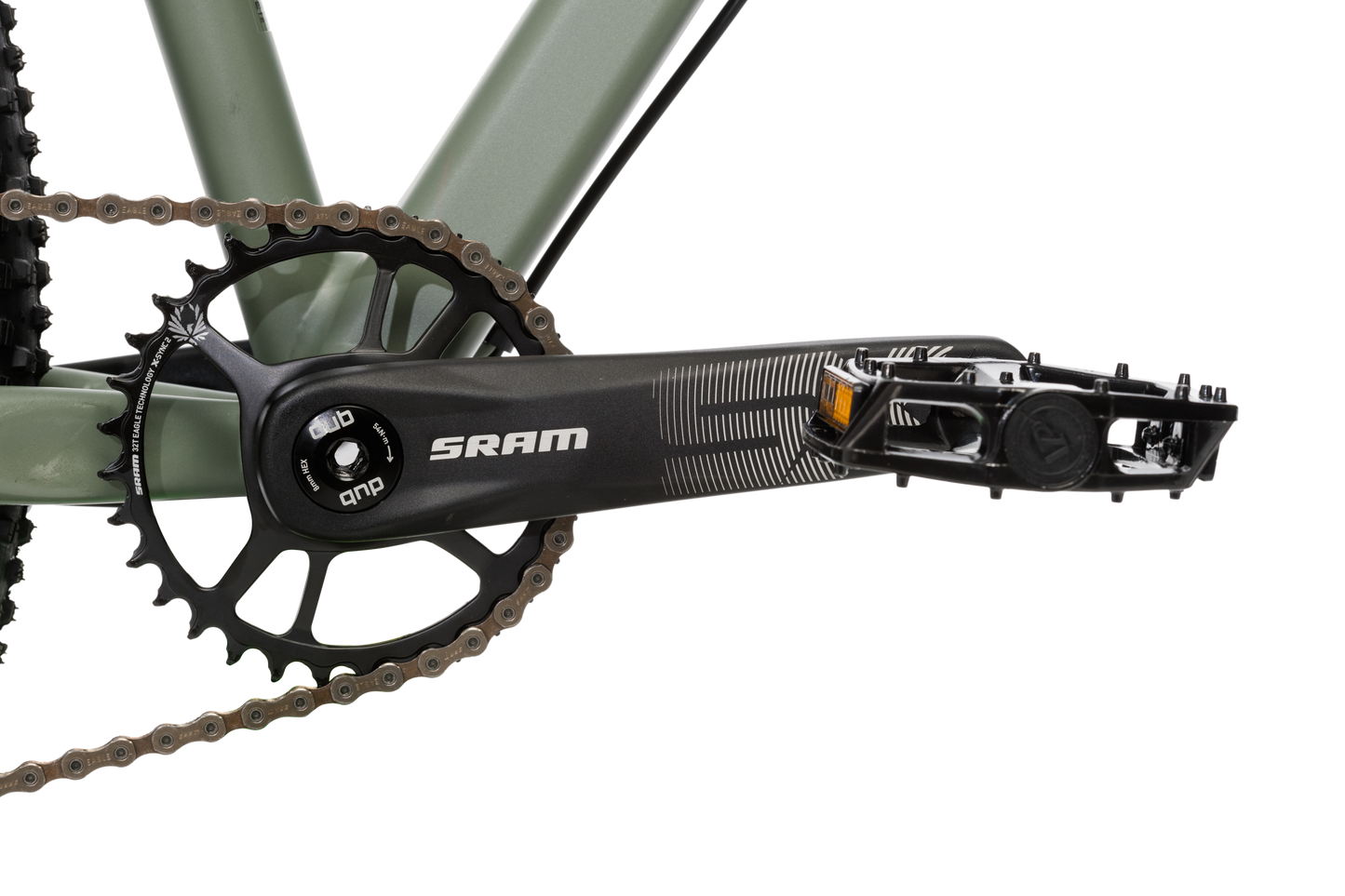

The Neon 29er is specced with the new SRAM SX Eagle 1 x 12 drivetrain for plenty of smooth-shifting range to keep you moving.

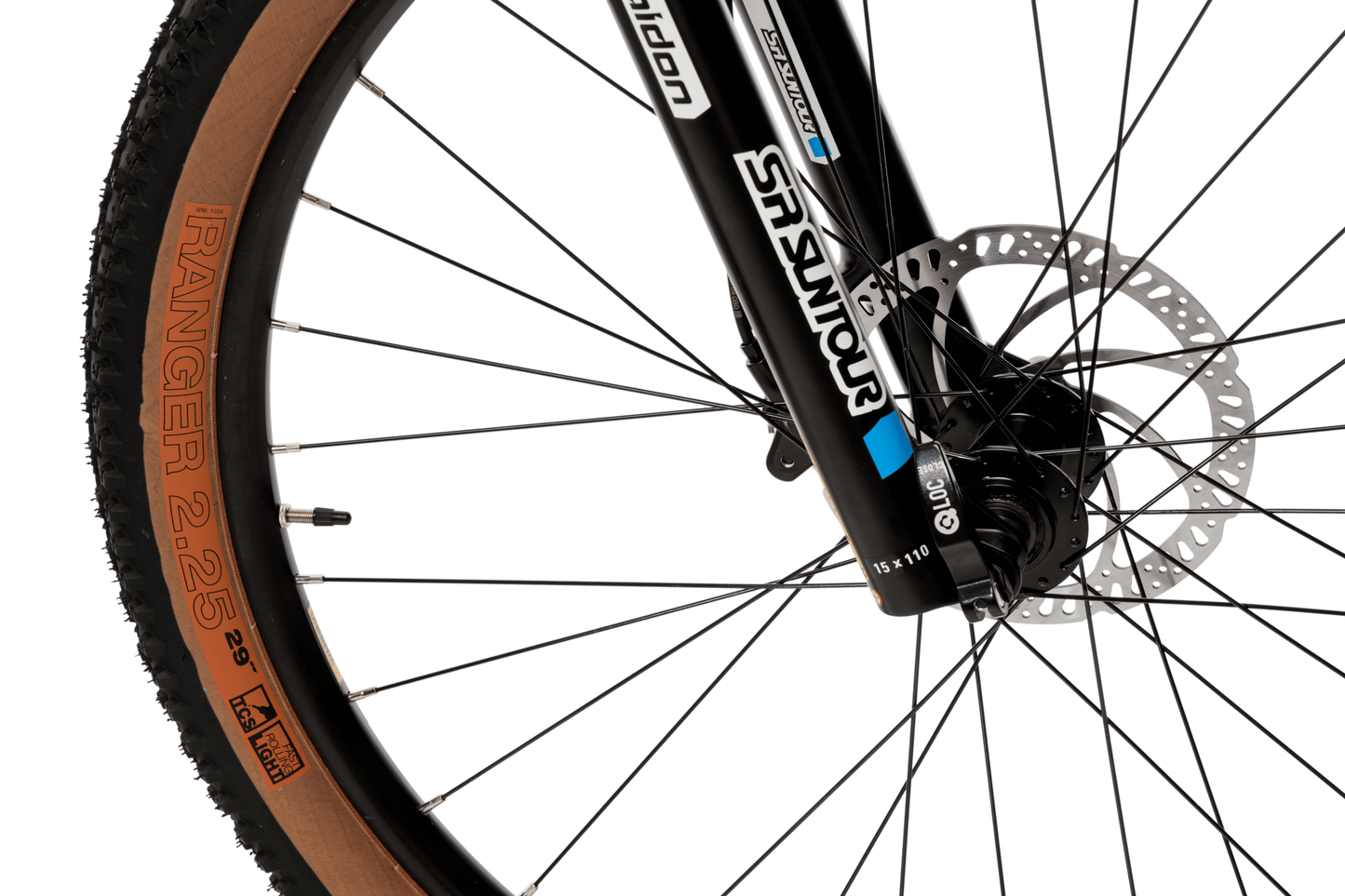

The Neon runs on durable and fast WTB ST i-25 rims on thru-axle hubs for improved rigidity and secure alignment between wheel and frame. Coupled with some stylish tan wall 29 x 2.25” WTB Ranger tyres, this bike holds the trail for a fast and responsive ride.

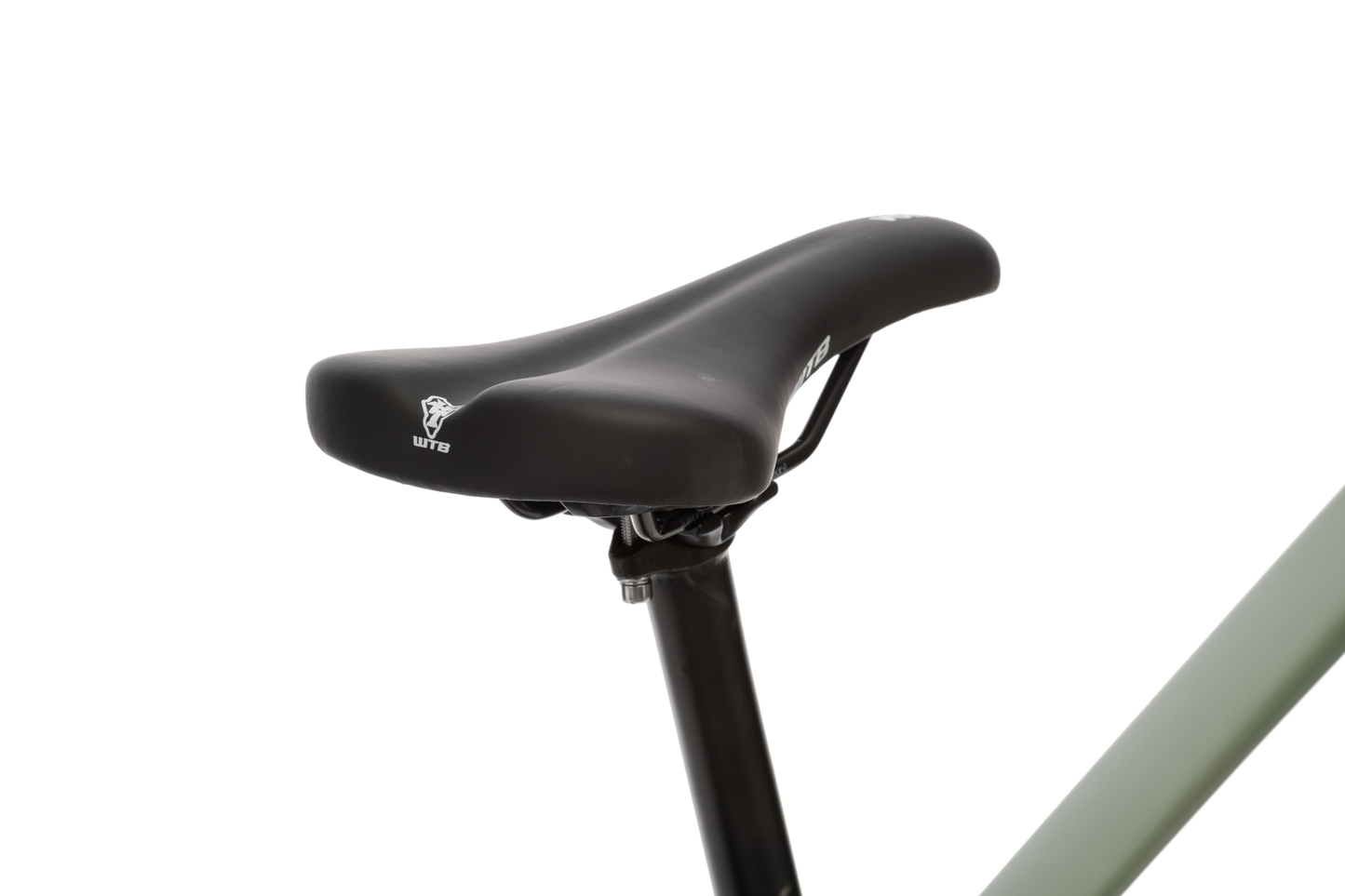

Finished with carefully chosen details like lock-on Velo grips, a WTB Volt Sport saddle and VP platform pedals that keep you in control - the Neon mountain bike is ready to ride.
Key Features:
- Tough and lightweight double-butted 6061 hydroformed aluminium alloy frame with modern trail/cross-country (XC) geometry for improved trail performance and low standover top tube for riders who want to hit the jumps.
- 100mm travel Suntour Raidon 32 suspension fork with hydraulic lock-out for efficiency on the climbs and cushion on the descents.
- Upgraded Shimano MT200 Hydraulic Discs for remarkable stopping power and modulation control in the dirt and in the wet.
- Trail performance with the new SRAM SX Eagle 1 x 12 drivetrain. The ideal setup for simplicity and clearance over obstacles like logs and rocks.
- Features thru-axles for improved rigidity between wheel and frame.
- Finished with quality WTB kit - ST i-25 rims to handle the knocks, and a WTB Volt Sport saddle for comfort.
| Frame | Reid double butted 6061 hydroformed alloy frame disc brake specific |
| Forks | Suntour raidon 32 100mm travel thru axle with lock out |
| Wheelset / Rim | Wtb st i25 double wall alloy 32 hole 25mm inner width |
| Brakes | Shimano mt200 hydraulic disc brakes |
| Tyres | Wtb nineline 29 x 2.25” 27tpi. |
| Hubs | Kt alloy quick release f & r front thru axle 15mm |
| Freewheel / Cassette | Sram eagle 12-speed (11-50t) |
| Rear Derailleur | Sram sx eagle 12 speed |
| Handlebars | Double-butted alloy 700mm wide 9° backsweep 31.8 barbore |
| Stem | Alloy threadless 60mm |
| Shifters | Sram sx eagle 12 speed |
| Bottom Bracket | Sram dub sealed bearing |
| Brake Lever | Shimano mt200 hydraulic disc |
| Pedals | Vp 565 alloy platform 9/16\ steel axle |
| Chain | Sram sx eagle |
| Grips | Velo vlg-1266 mtb rubber 132mm |
| Saddle | Wtb volt sport |
| Seatpost | Alloy 27.2mm micro adjust 400mm |
| Chainset | Sram sx eagle dub 170mm 32t alloy |
| Kickstand | Not included |
| Bell | Yes |
| Small | Medium | Large | X Large | |
| Top tube length | 590 | 605 | 615 | 625 |
| Seat tube length | 380 | 430 | 480 | 530 |
| Head tube length | 110 | 110 | 120 | 130 |
| Seat tube angle | 773 | 73 | 73 | 73 |
| Head tube angle | 69 | 69 | 69 | 69 |
| RC length | 455 | 455 | 455 | 455 |
| BB drop | 62 | 62 | 62 | 62 |
| Fork offset | 46 | 46 | 46 | 46 |
| Front centre | 675 | 689 | 700 | 711 |
| Wheelbase | 1121 | 1137 | 1148 | 1159 |
| Full fork length | 510 | 510 | 510 | 510 |
| CM | FEET | |
| SMALL | 160cm - 167cm | 5'2" - 5'5" |
| MEDIUM | 167cm - 176cm | 5'5" - 5'8" |
| LARGE | 176cm - 185cm | 5'8" - 6'1" |
| X LARGE | 185cm - 195cm | 6'1" - 6'4" |
