Our popular Urban range is built tough, with fast and agile geometry for quick city riding. The X0 offers a sleek hydroformed alloy frame and branded components for performance every day.

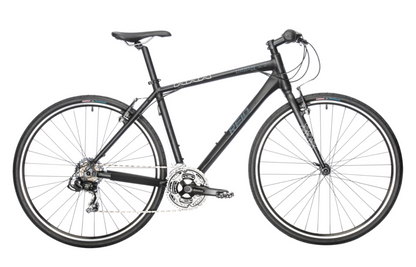

The Urban X0 is a fast and affordable all-round city bike; made to handle the daily abuse from our less-than-perfect city streets and pathways.

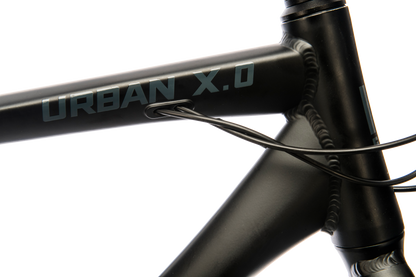

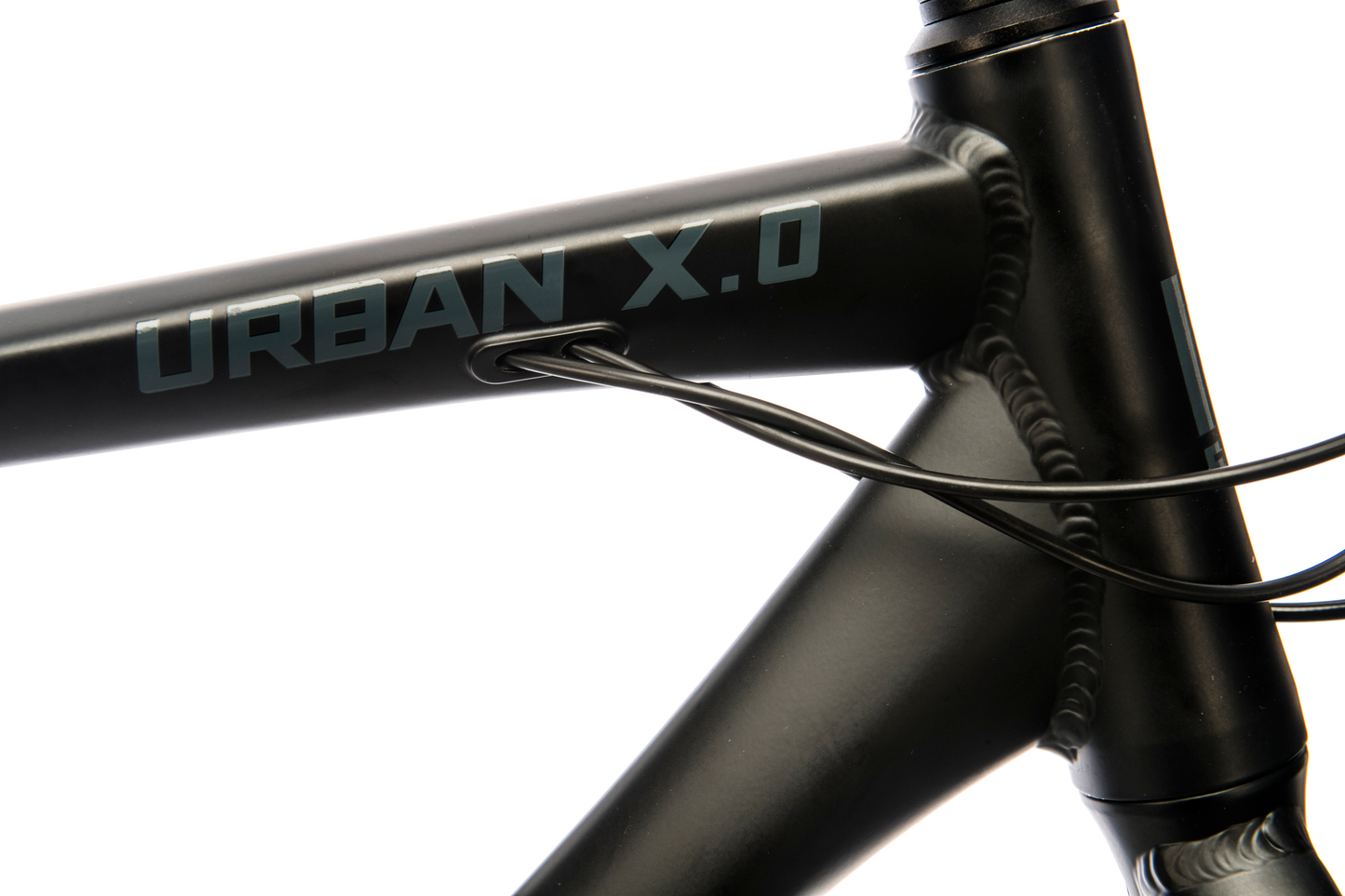

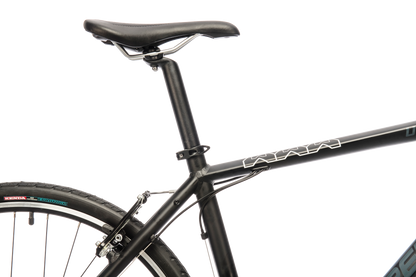

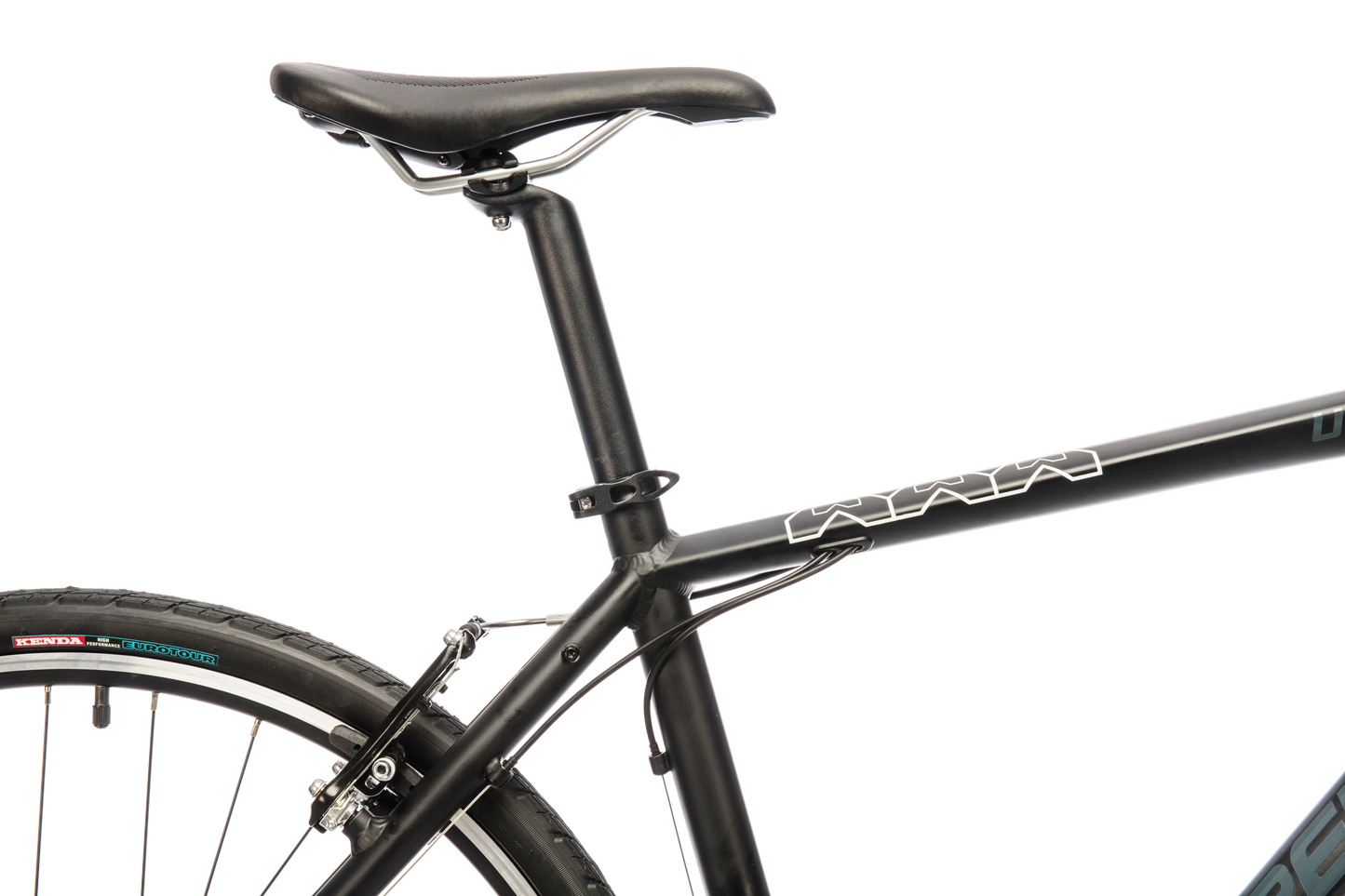

This versatile bike is built on a sleek new lightweight hydroformed 6061 alloy frame with internal cabling; and features all the mounts you need to rig your ride with fenders, mudguards and pannier racks for luggage.
Proven Shimano Tourney 21-speed gearing with Revo twist-shift provide ample range to climb hills confidently, shift reliably and also get up to serious speed when you push it.

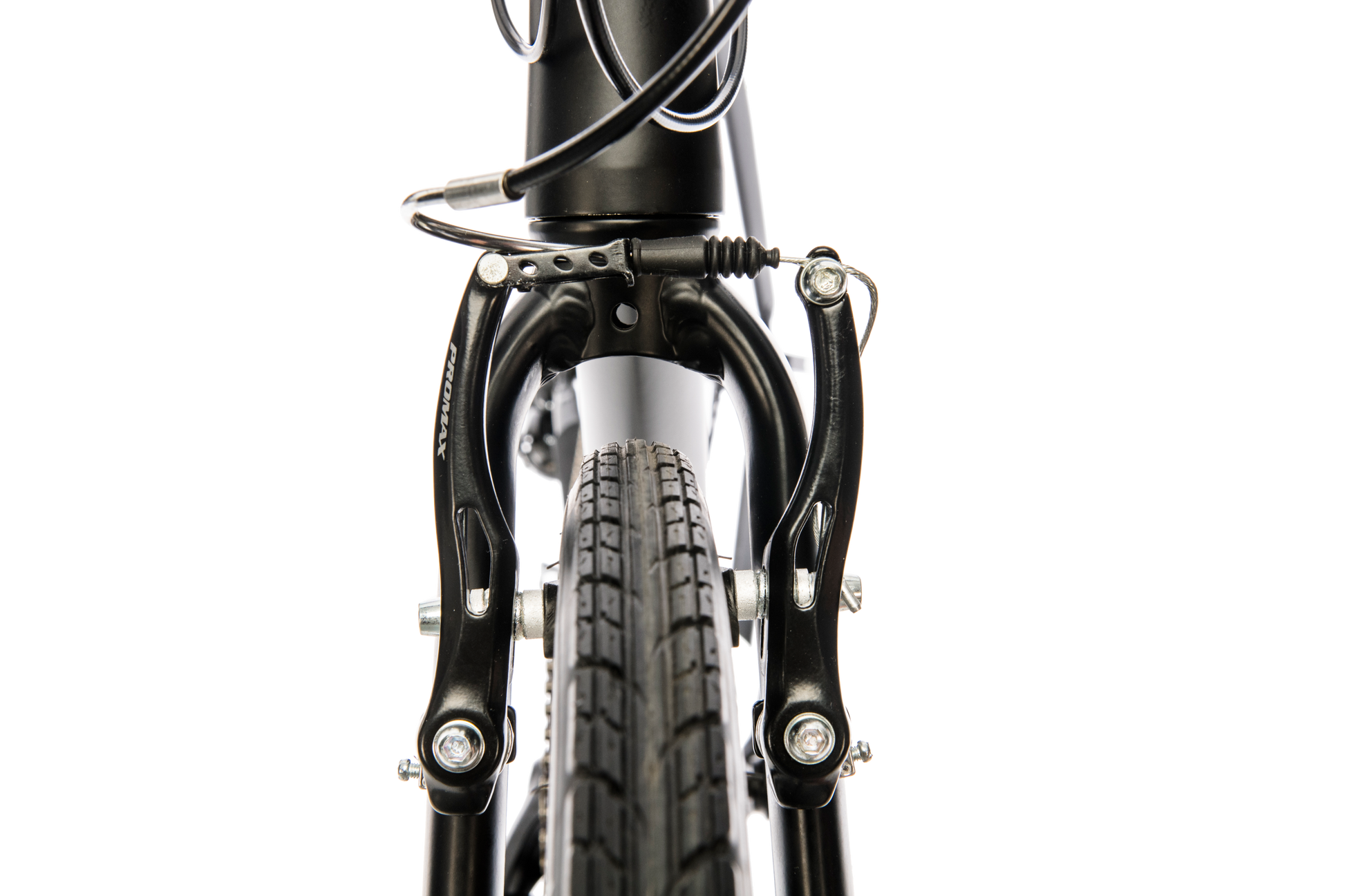

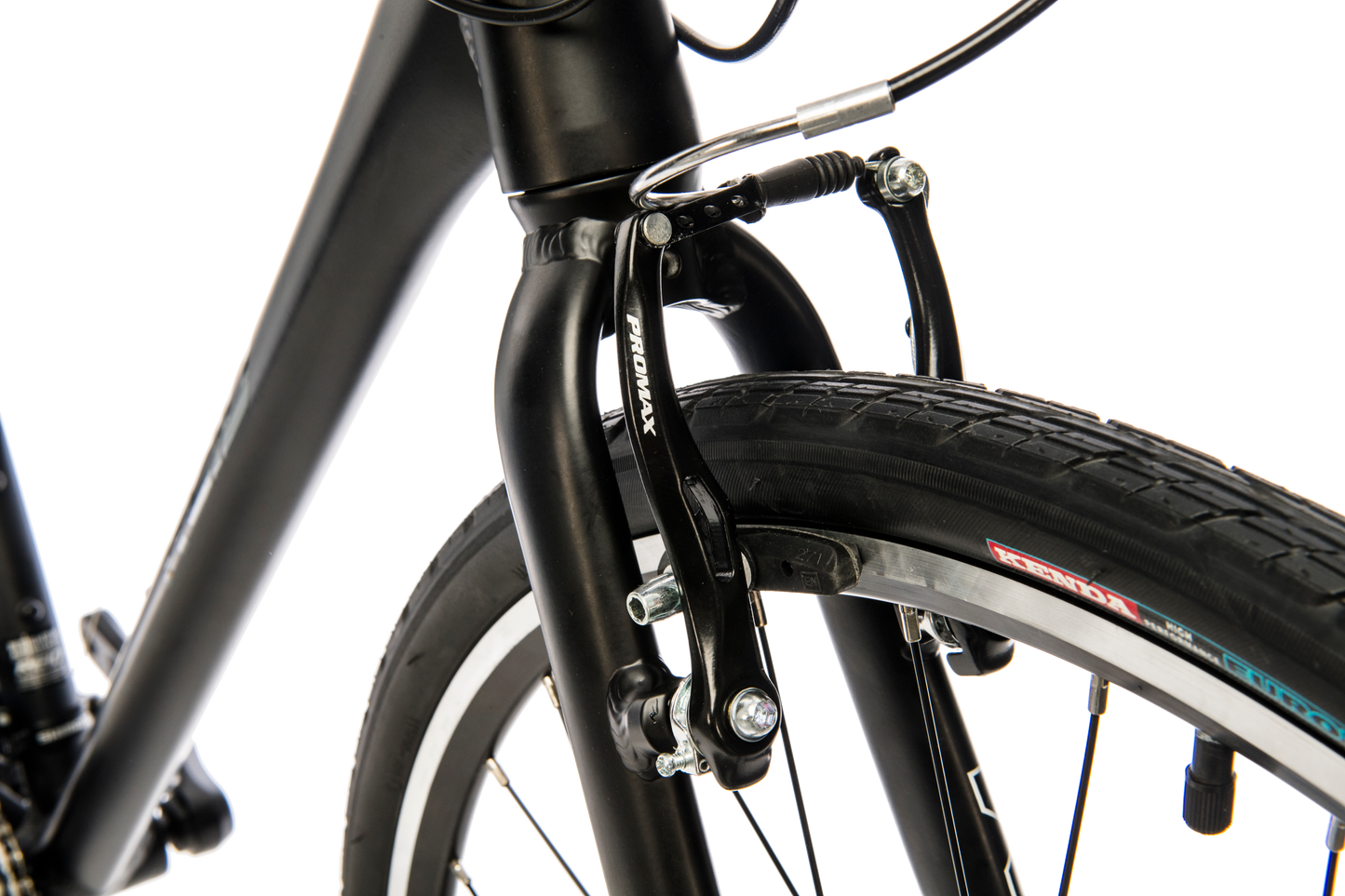

With Promax alloy V-brakes, and running on wide 35 millimetre Kenda tyres fitted to double-wall alloy rims with quick release hubs; the Urban X0 is built for years of urban riding while giving you a fast and sure-footed ride.
Key Features:
- Lightweight hydroformed alloy frame with internal cable routing and headset.
- Fast Commuter bike geometry for confident urban handling.
- Reliable and simple to use Shimano 21-Speed Tourney gearing.
- Tough and lightweight double-wall alloy wheelset for city riding.
- Promax Alloy V-Brakes for reliable stopping power.
- Puncture resistant Kenda K-193 700x35c tyres for control.
| Frame | Reid 6061 hydroformed alloy with internal cabling |
| Forks | Reid hydroformed alloy rigid fork |
| Weight | 12.04 kg |
| Wheelset / Rim | Double wall alloy lightweight |

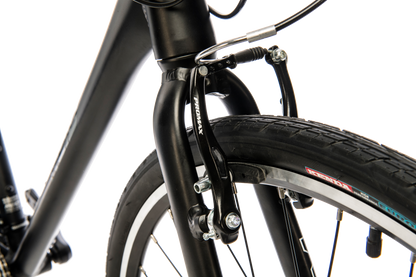

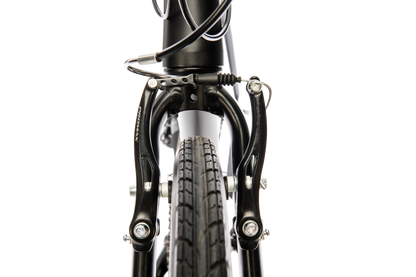

| Brakes | Promax alloy v-brakes |
| Tyres | Kenda k-193 700x35c |

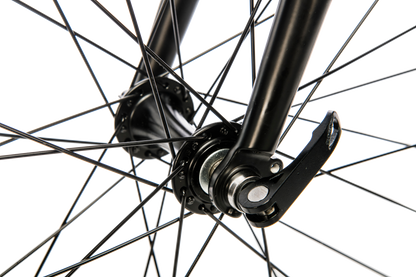

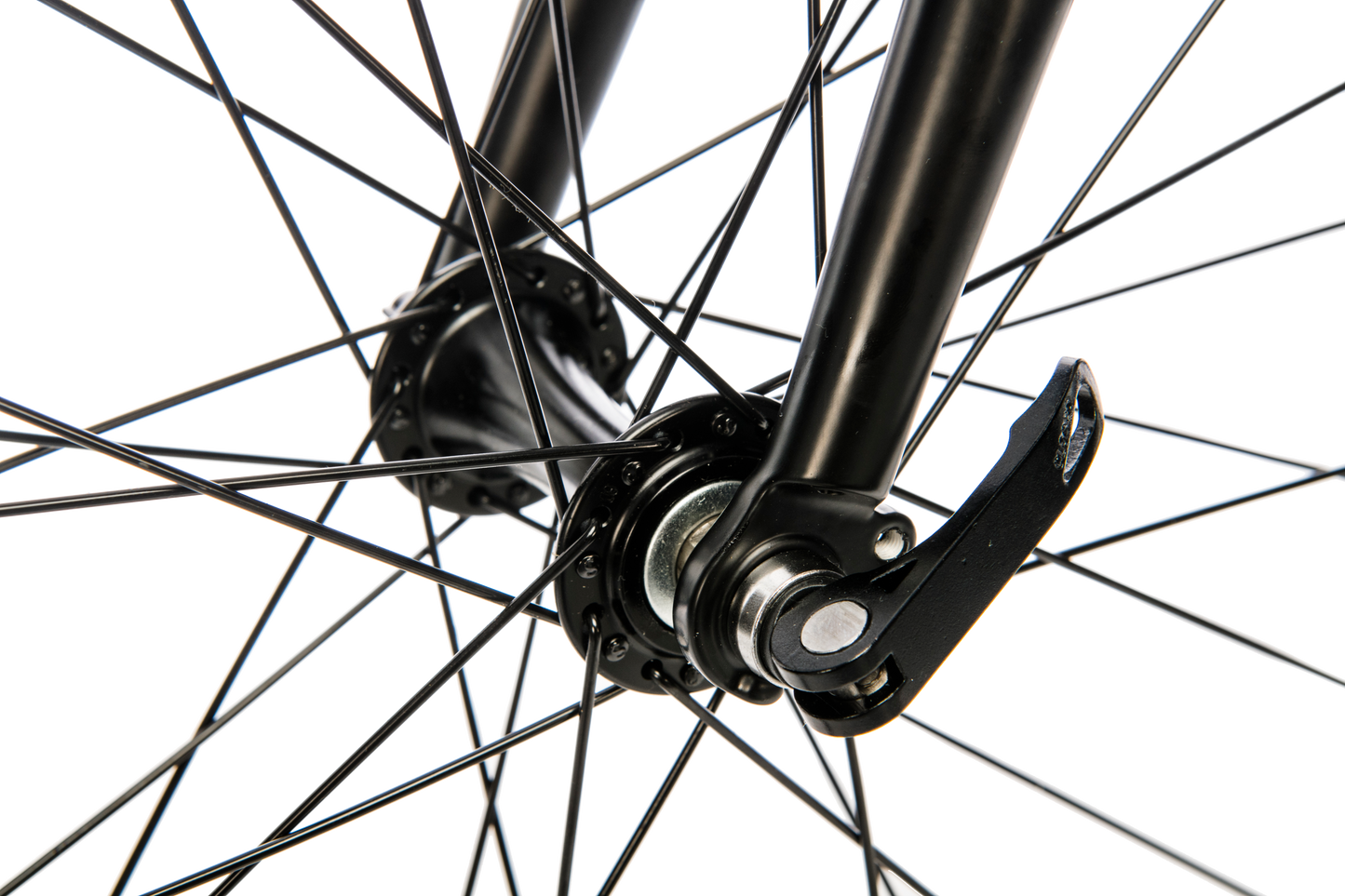

| Hubs | Alloy quick release f & r |

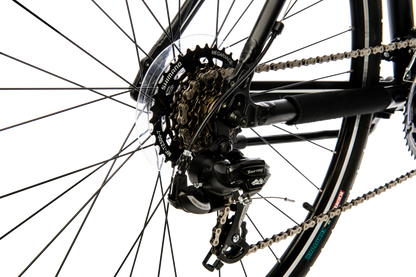

| Freewheel / Cassette | Shimano 7-speed freewheel (14-34t) |
| Front Derailleur | Shimano tourney ty710 |

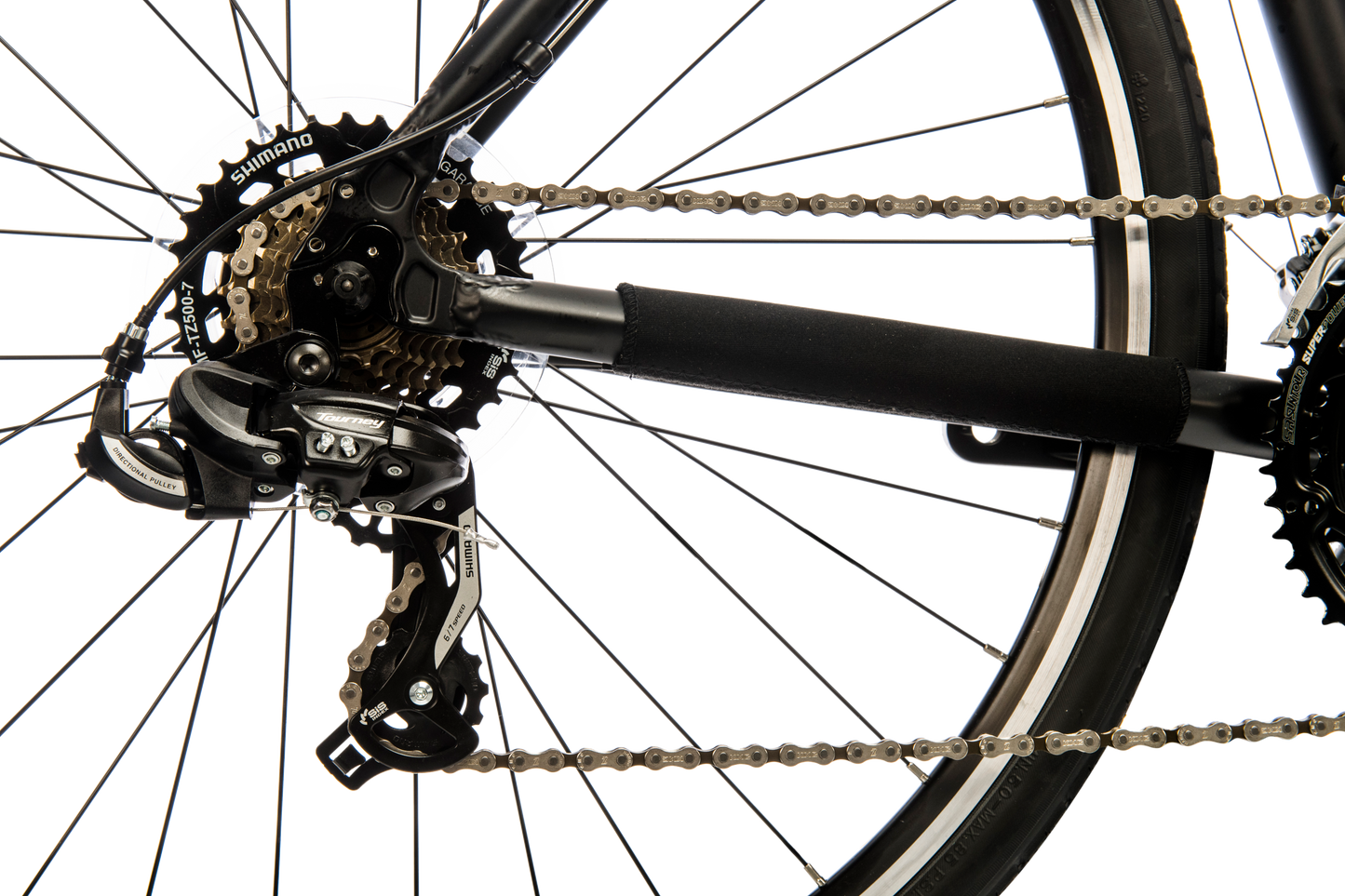

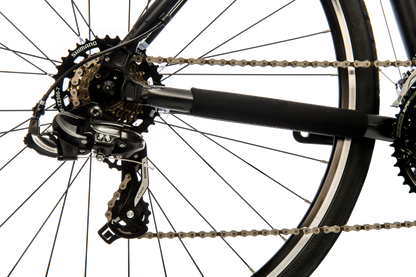

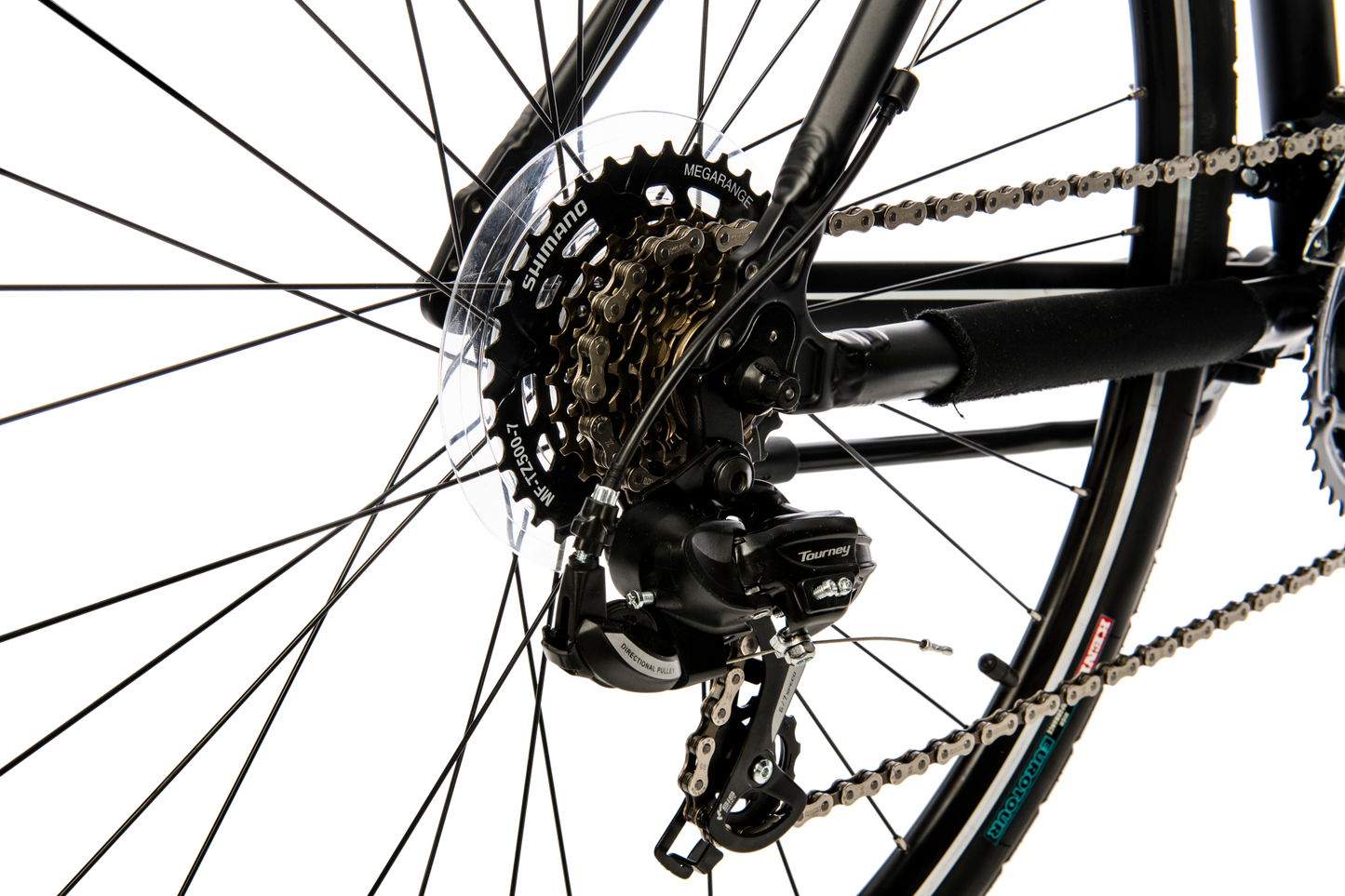

| Rear Derailleur | Shimano tourney ty500 |

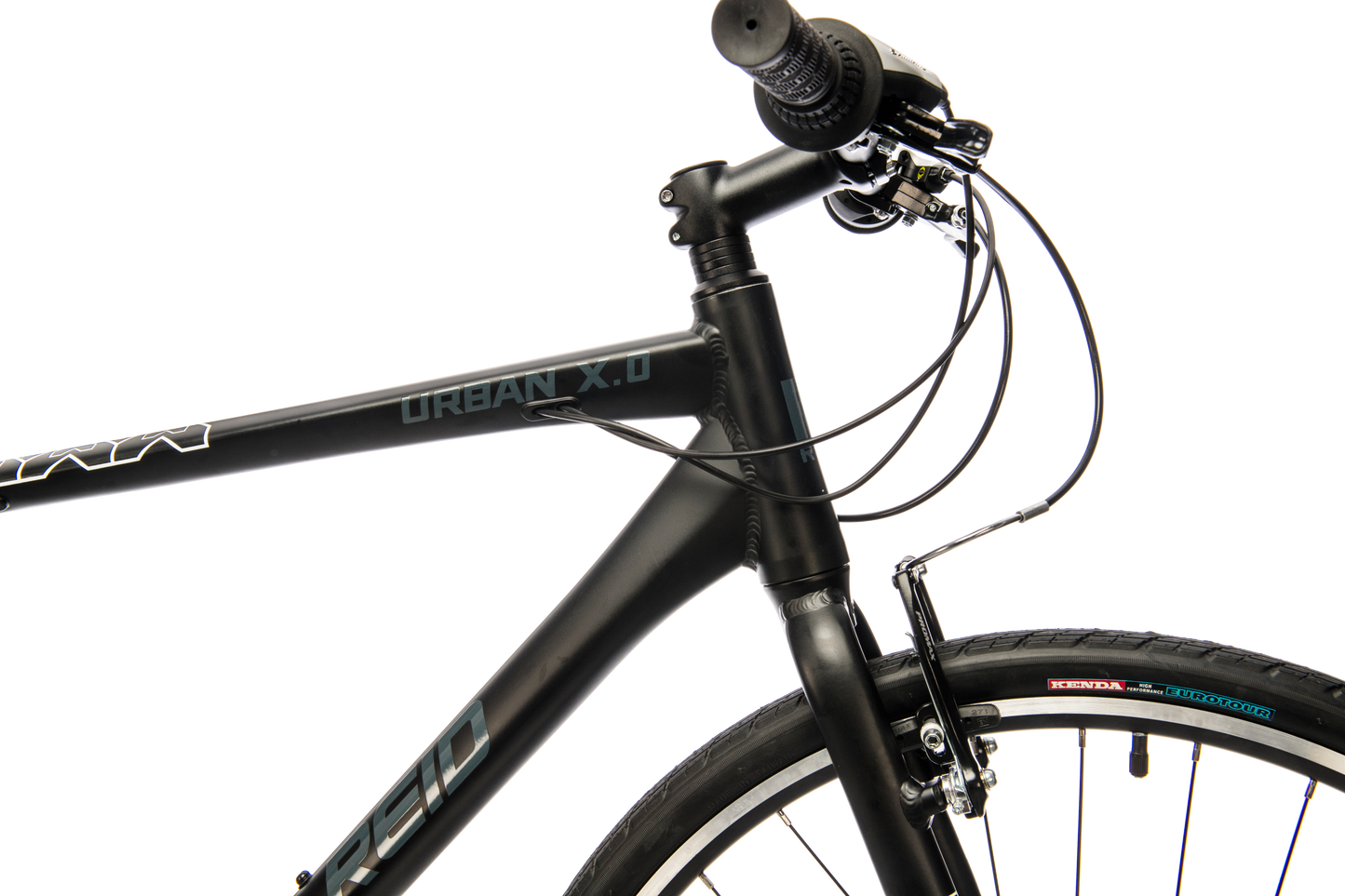

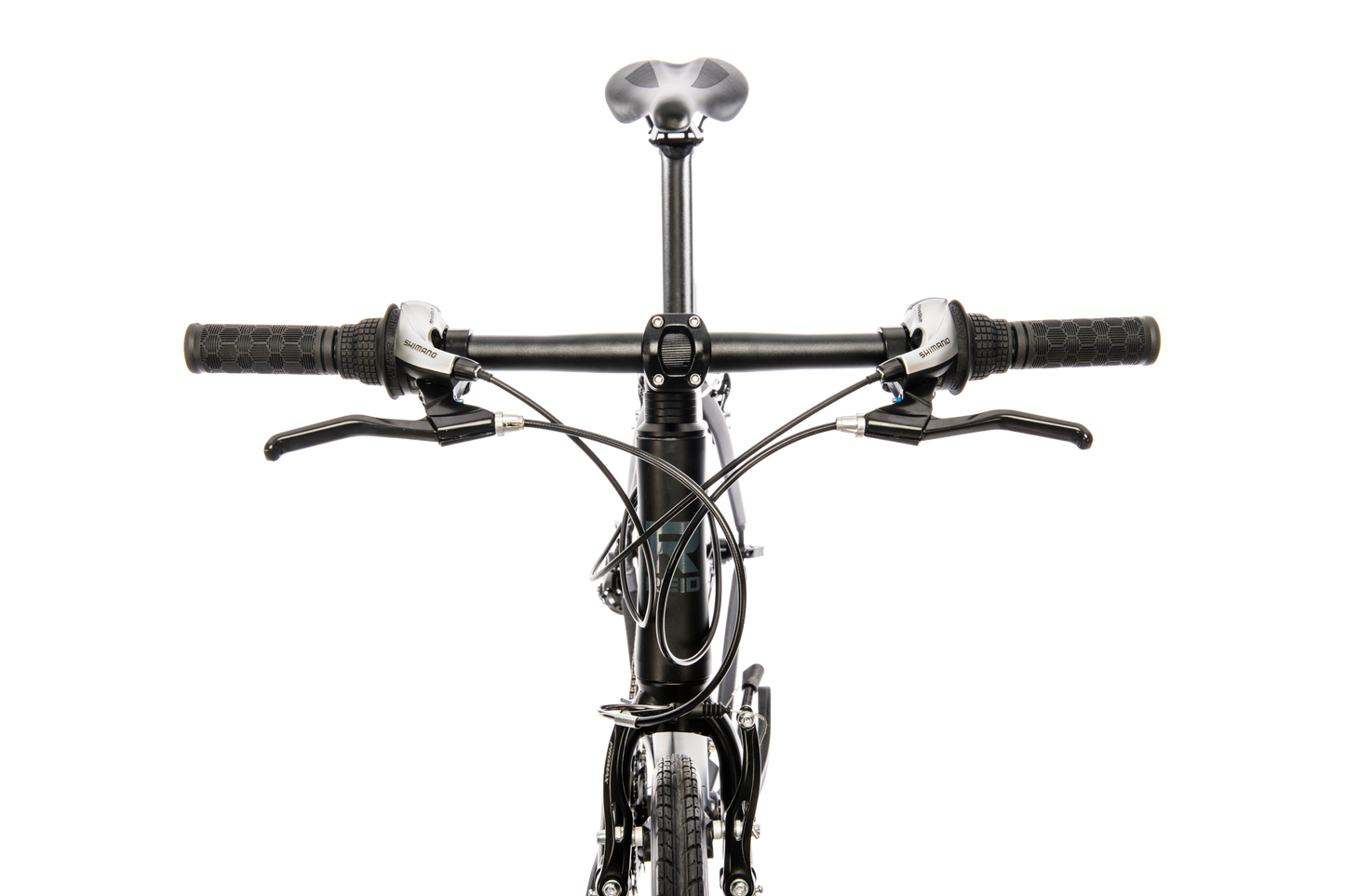

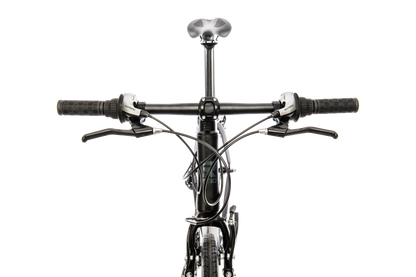

| Handlebars | Reid alloy 660mm (s/m) 680mm (l/xl) wide 31.8 barbore |
| Stem | Alloy threadless |

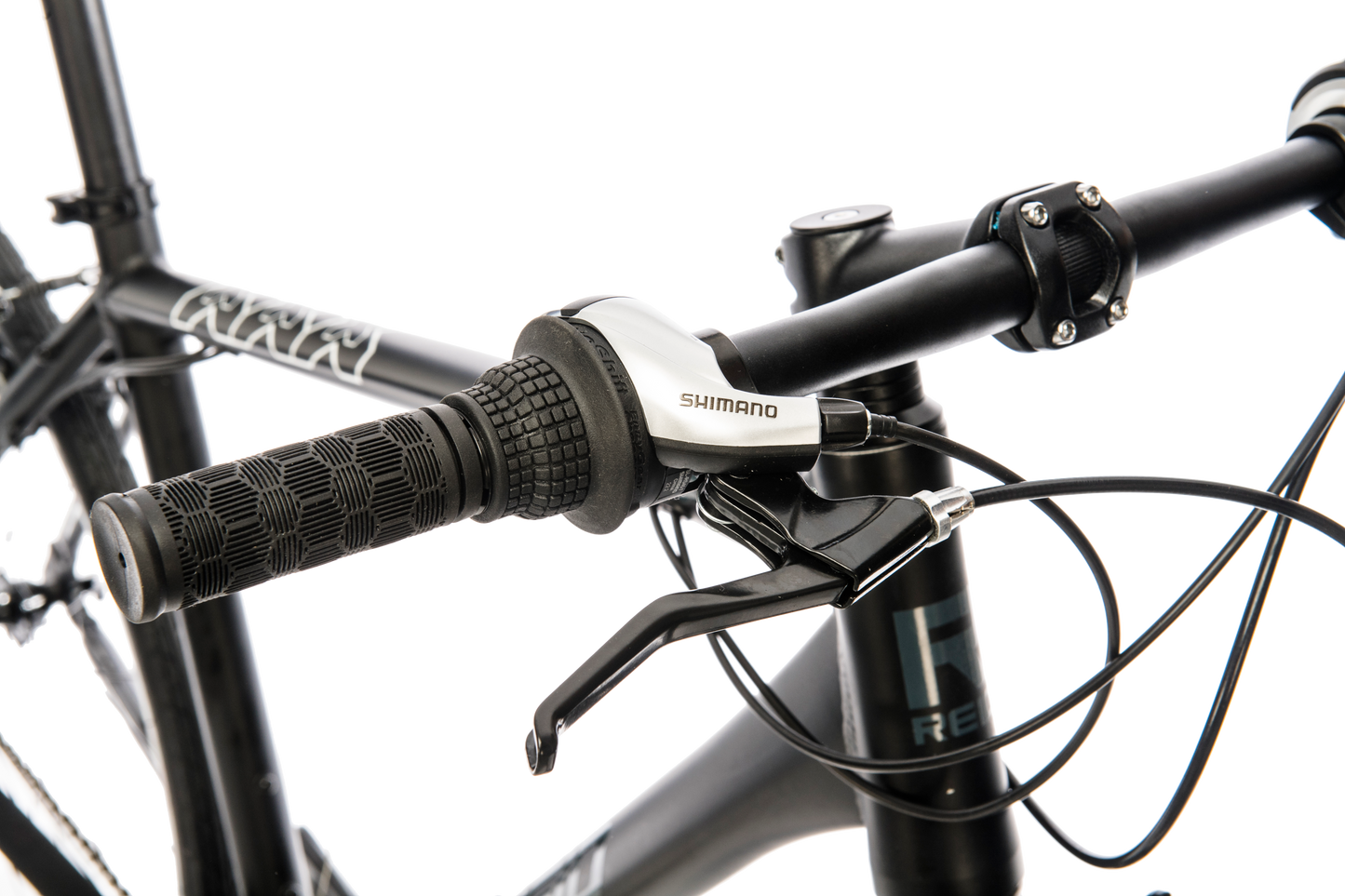

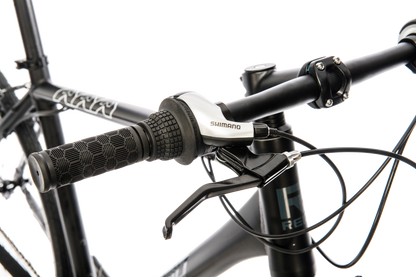

| Shifters | Shimano tourney rs45 twist revo shift |
| Bottom Bracket | Neco b908 sealed bearing |
| Brake Lever | Shimano ef41 integrated lever |
| Pedals | Alloy body and cage 9/16\ steel axle |
| Chain | Kmc z7 |
| Grips | Ergonomic rubber black 90mm |

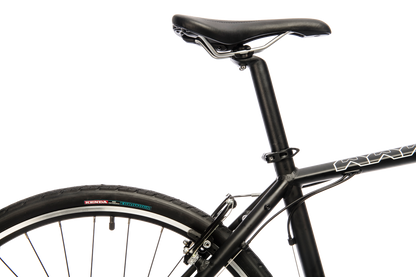

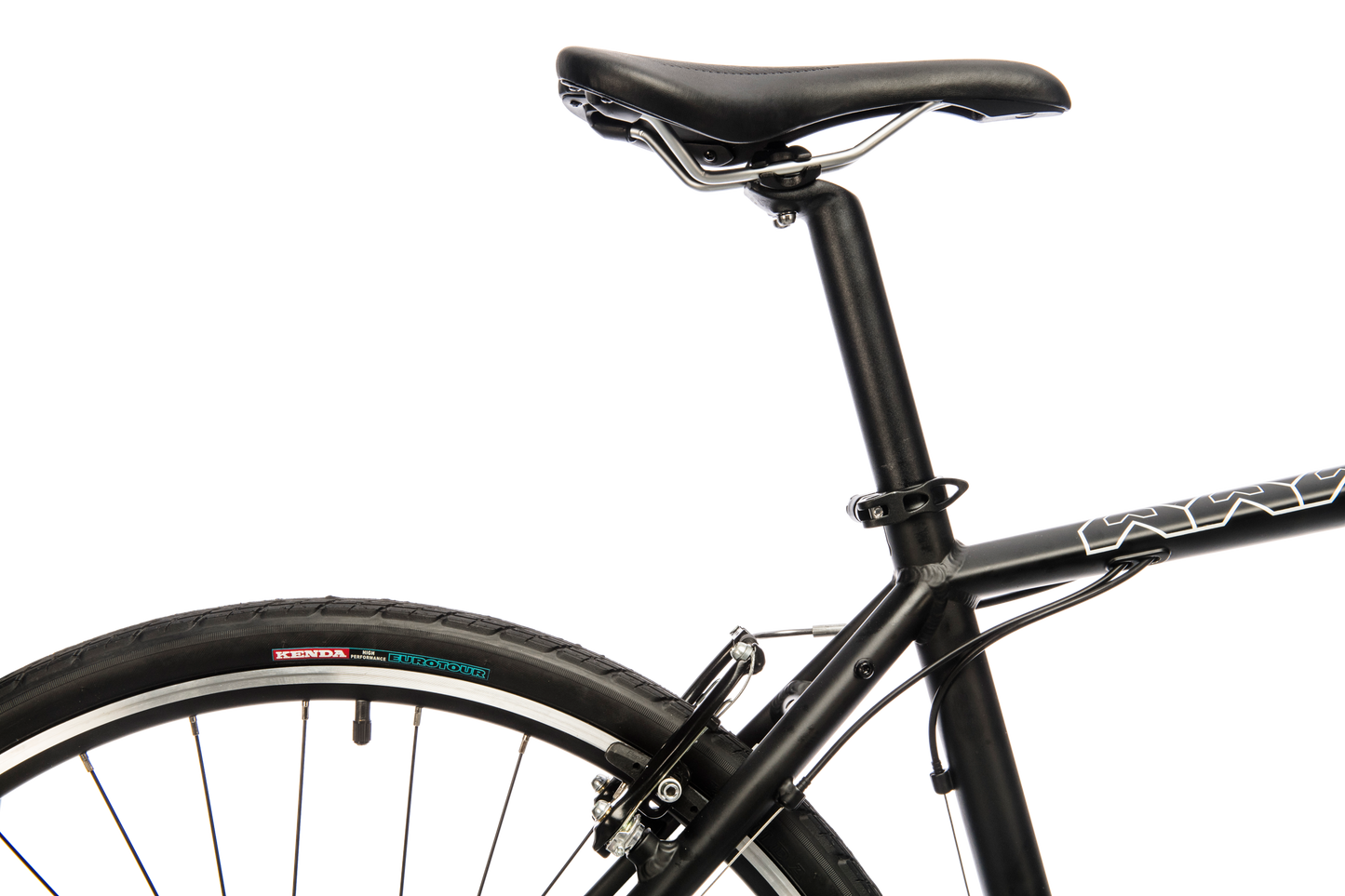

| Saddle | Reid city comfort |
| Seatpost | Reid alloy 31.6mm micro adjust 350mm |

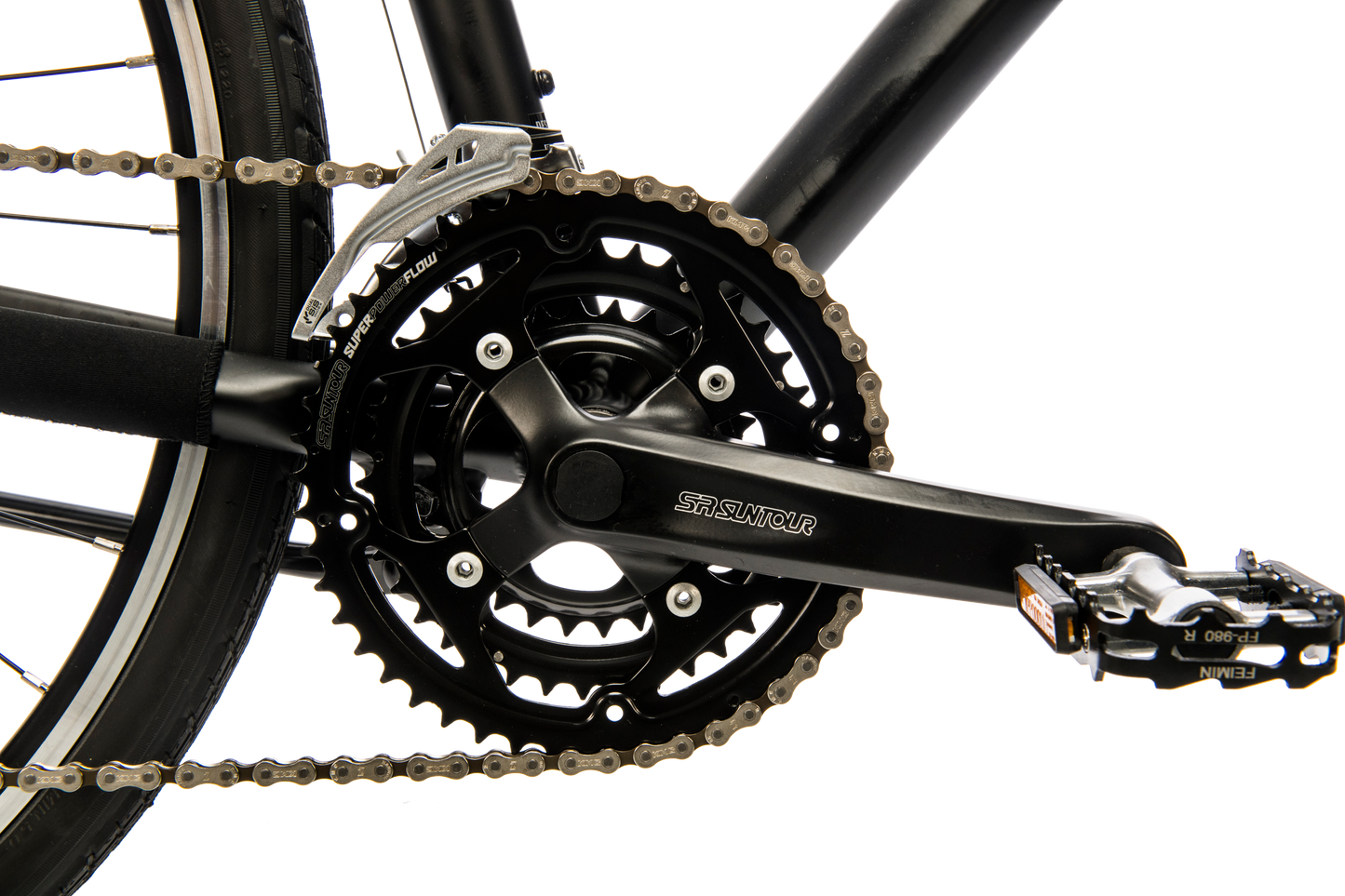

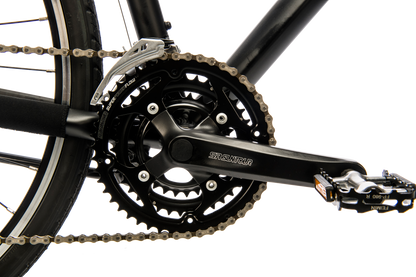

| Chainset | Suntour xcm alloy 170mm 48/36/28t |
| Kickstand | Not included |
| Bell | Yes |
| Small | Medium | Large | X-Large | |
| Top tube length | 570 | 575 | 582 | 589 |
| Seat tube length | 480 | 510 | 540 | 570 |
| Head tube length | 150 | 160 | 170 | 180 |
| Seat tube angle | 72 | 72 | 72 | 72 |
| Head tube angle | 75 | 75 | 75 | 75 |
| RC length | 435 | 435 | 435 | 435 |
| BB drop | 75 | 75 | 75 | 75 |
| Fork offset | 48 | 48 | 478 | 48 |
| Front centre | 623 | 628 | 635 | 642 |
| Wheelbase | 1047 | 1055 | 1060 | 1067 |
| Full fork length | 405 | 405 | 405 | 405 |
| CM | FEET | |
| SMALL | 160cm - 167cm | 5'2" - 5'5" |
| MEDIUM | 167cm - 176cm | 5'5" - 5'8" |
| LARGE | 176cm - 185cm | 5'8" - 6'1" |
| X-LARGE | 185cm - 195cm | 6'1" - 6'4" |
This series of how-to video guides will take you through each step of assembling and tuning your new Bike. Watch the series or choose the tasks you need help with:
Assembly instructions guide
If you prefer to work from step-by-step diagrams, you can use this Assembly Instruction Guide for key points on all basic areas of bike assembly.
Need more assistance?
Please contact Customer Service for friendly expert advice to help you get your bike ready to ride. We welcome your questions as they will help us to improve the instructions we provide in future.
Our Urban X0 Hybrid Bike Black includes the industry-leading Reid Warranty: lifetime on frame and rigid forks, 2 years on non-consumable parts and a free first service to get you going. Test ride in-store or shop online to enjoy a 30 Day Test Ride to guarantee you get a great deal.
Click and Collect
Buy online and collect in-store from our Melbourne, Brisbane or Perth stores fully assembled by our bike mechanics and ready to ride.
Be advised that your chosen store will phone you within 24 hours of ordering to confirm a collection date based on your availability, the location of stock and your chosen collection store.
Home Delivery
Our bikes are shipped in a box 85% assembled and require basic assembly, like turning handlebars and inserting pedals. Check out our Assembly Videos that give instructions on how to do this.
Buy One, Plant One
Since January 2020 we have partnered with Eden Reforestation Projects to donate enough money to pay a local person a fair wage to grow, plant and guard to maturity 1 native tree for every bike we sell.
We've now planted more than 200,000 trees and counting.
