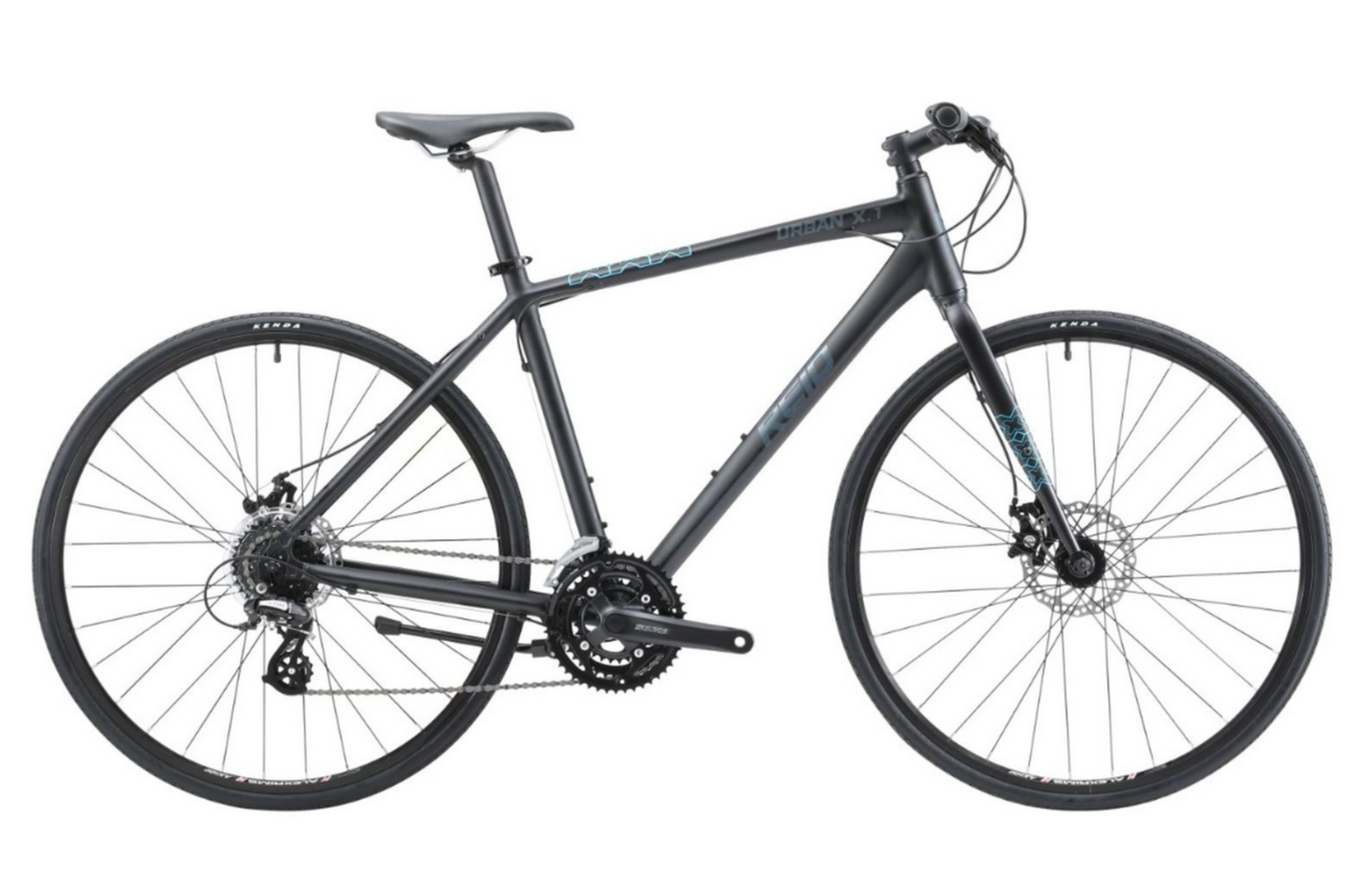

Fitted with powerful disc brakes and key upgrades in gearing and wheels, the Urban X1 represents serious value for a quality city ride.
Built on our popular Urban platform but with the added performance of disc brakes, the Urban X1 is a fast and feature-packed all-round city bike.
Choosing discs gives you uncompromised stopping power and control - even when the conditions are wet.

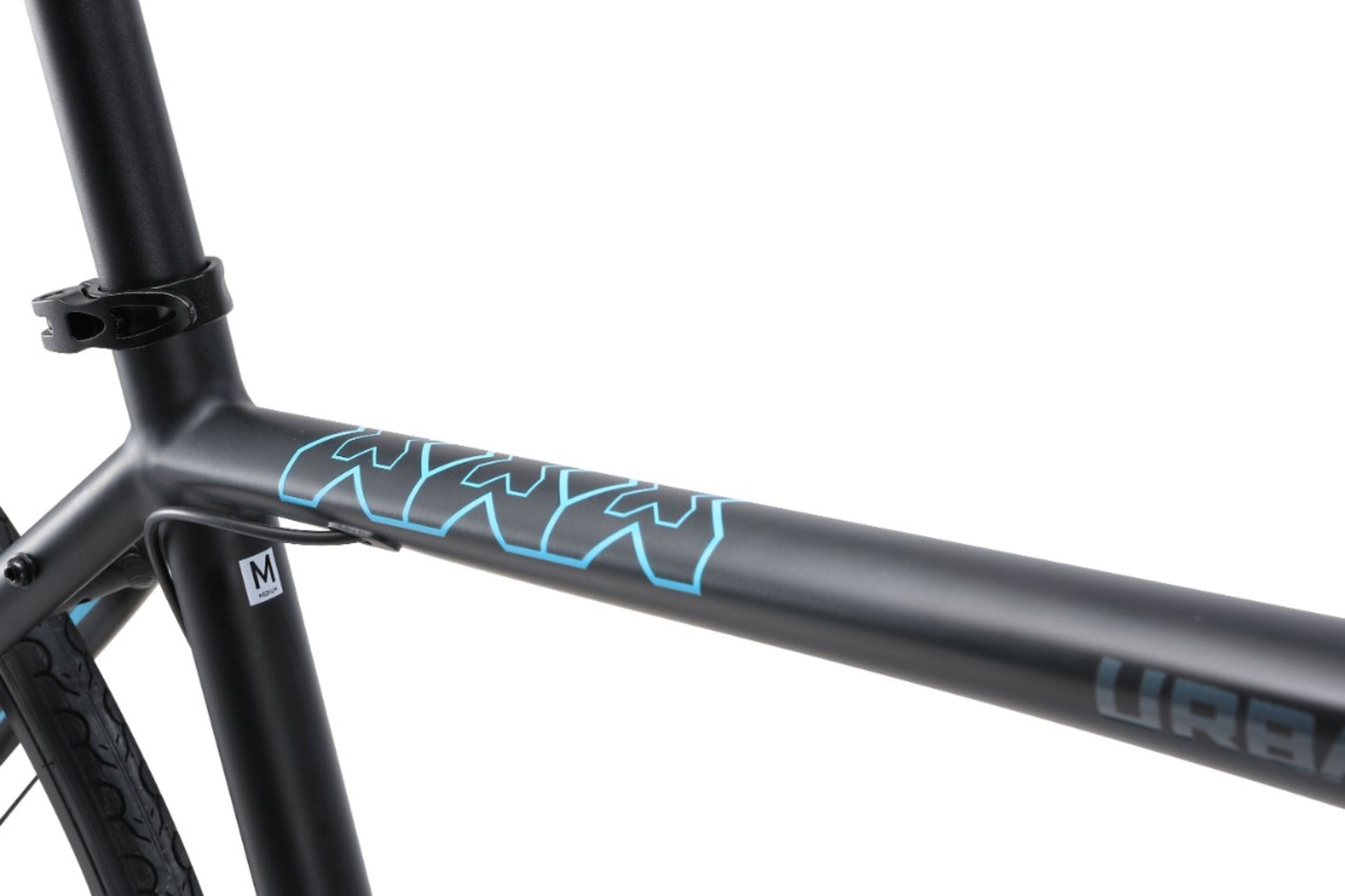

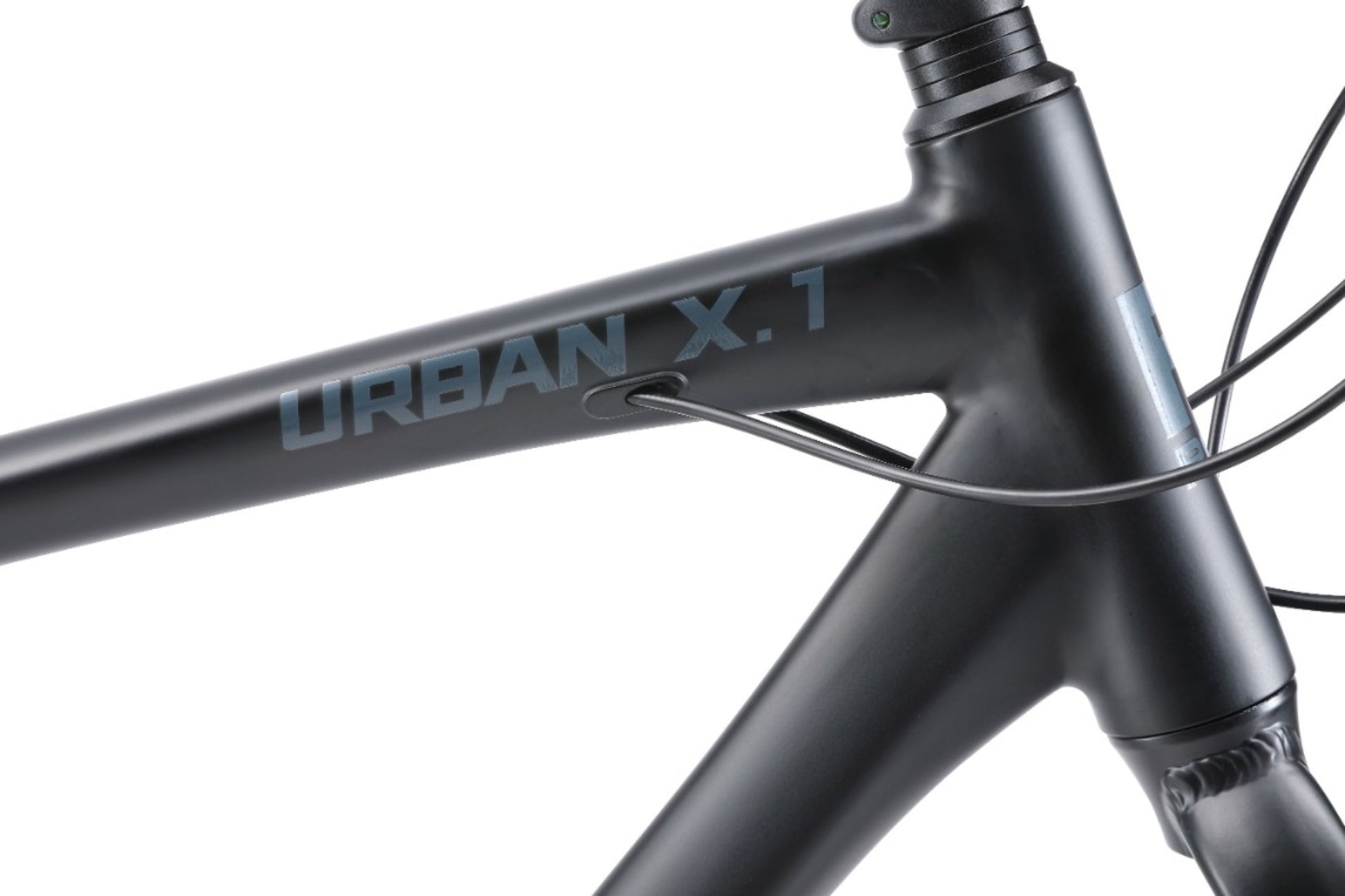

This versatile bike is built on a new lightweight hydroformed 6061 alloy frame with internal cabling; and features all the mounts you need to rig your ride with fenders, mudguards and pannier racks for luggage.

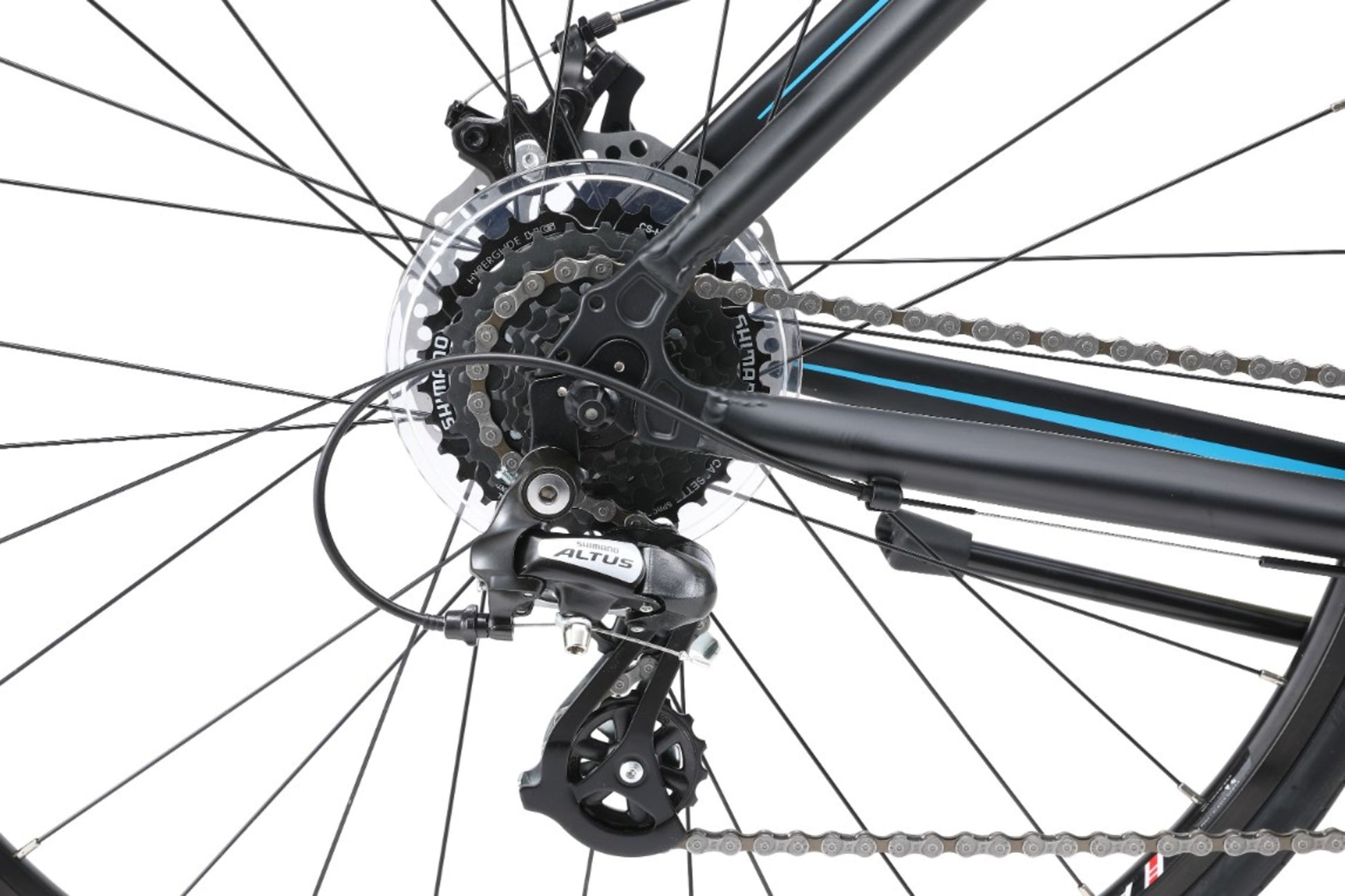

A reliable Shimano 24-speed drivetrain with upgraded Altus rear derailleur provides even more range to climb hills confidently, shift smoothly and get up to even more speed when you push it.

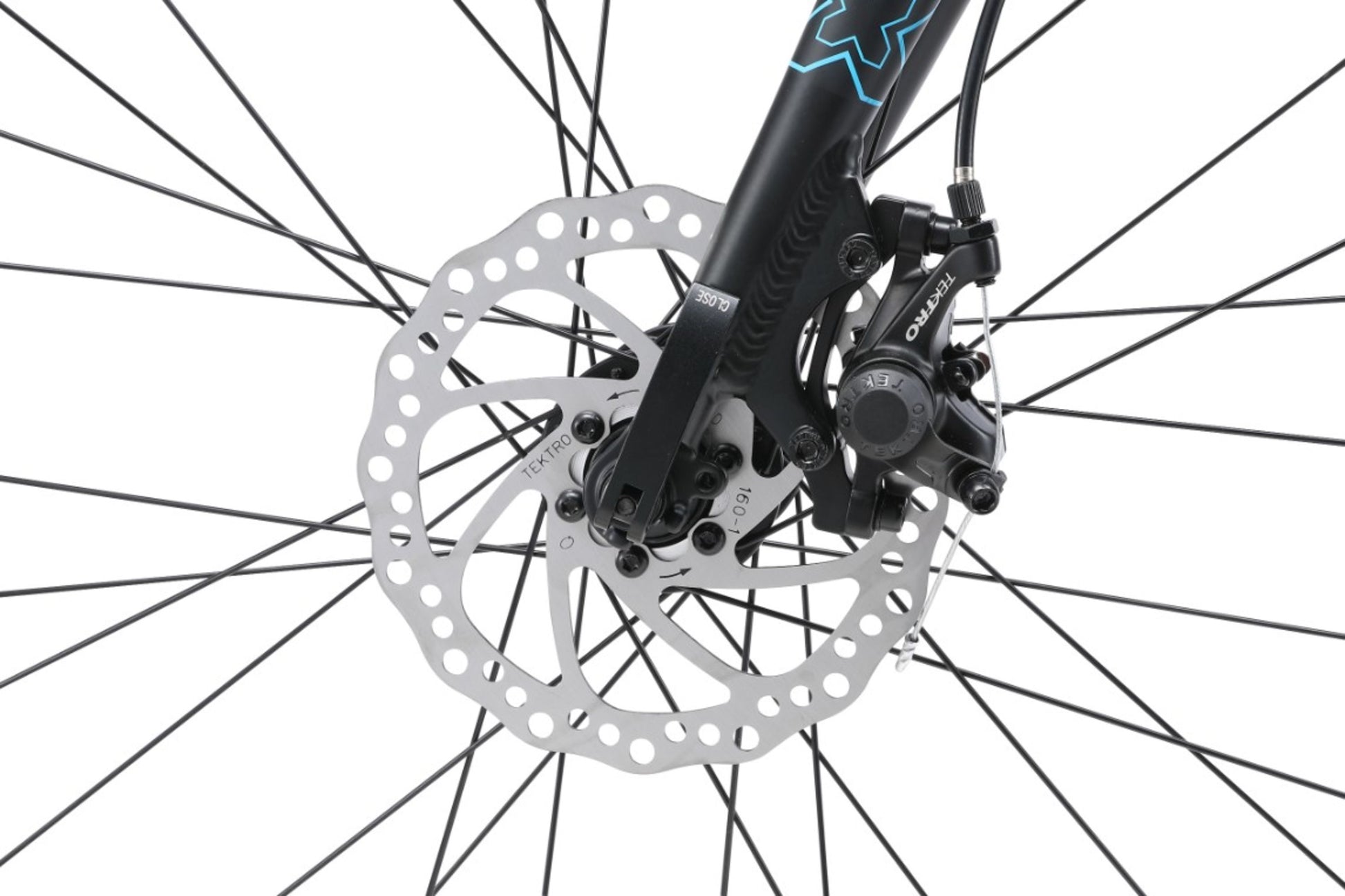

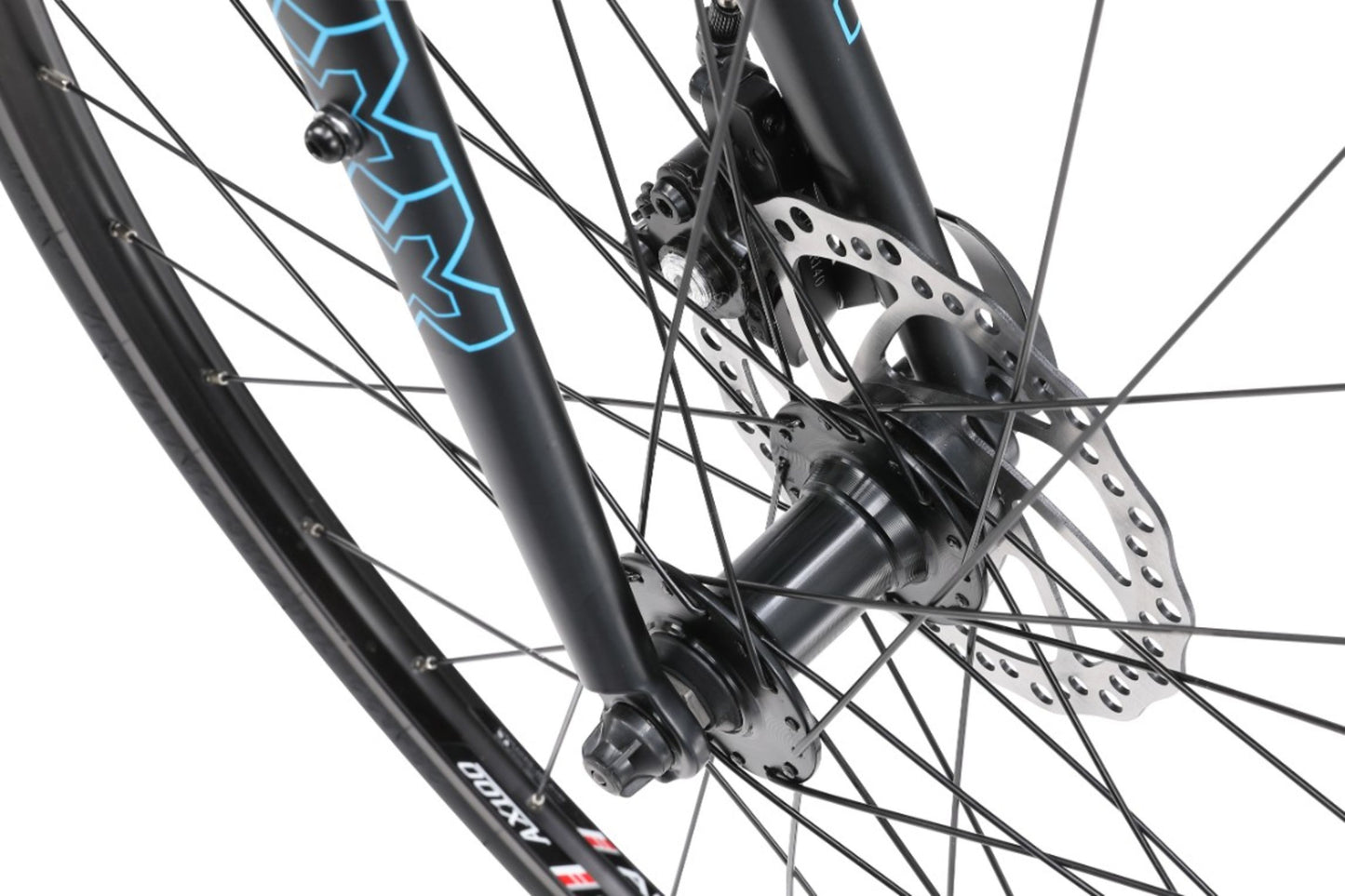

The Urban X1 is equipped with trusted Tektro mechanical disc brakes for confidence-inspiring control.

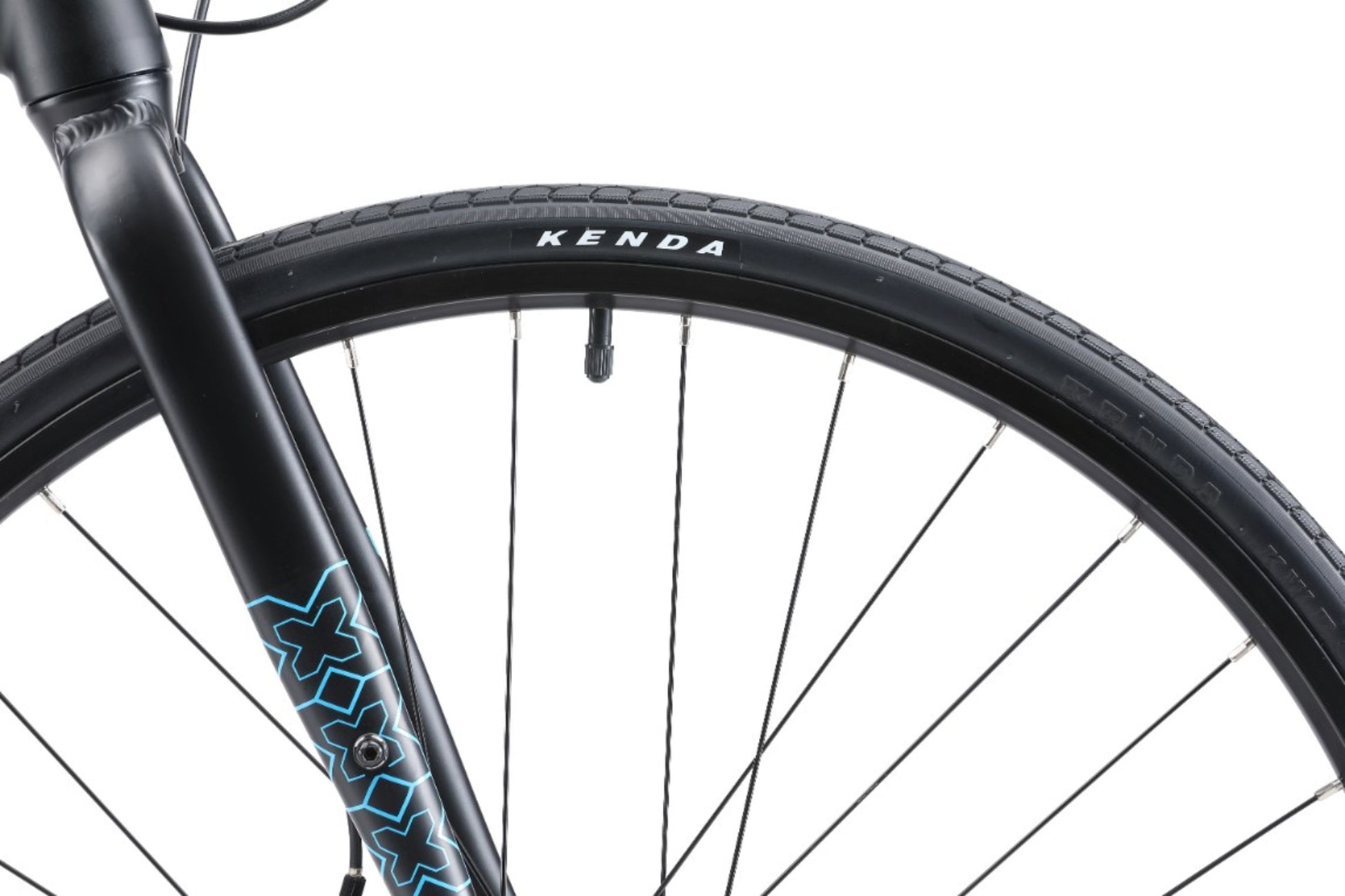

Running on wide 35 millimetre Kenda tyres fitted to double wall alloy rims with quick release hubs; the Urban X1 is built to withstand the rigours of urban riding on less-than-perfect roads, while giving you a fast and sure-footed ride.
This bike is available in both unisex or a step-through WSD frame design. WSD or Women Specific Design is an approach to building bikes that considers female proportions to produce a bike more suited to a female rider.
Key Features:
- Lightweight hydroformed alloy frame with internal cable routing and headset.
- Fast Commuter bike geometry for confident urban handling.
- Reliable and simple to use Shimano 24-Speed Tourney/Altus gearing.
- Tektro MD M280 mechanical disc brakes for reliable stopping power in all conditions.
- Durable and light Alex XD100 double-wall alloy rims for city riding.
- Resistant Kenda K-193 700x35c tyres for control.
| Frame | Reid 6061 hydroformed alloy with internal cabling |
| Forks | Reid hydroformed alloy rigid for disc |
| Weight | 12.66 kg |
| Wheelset / Rim | Alex rims xd100 |
| Brakes | Tektro md m280 mechanical disc |
| Tyres | Kenda k-193 700x35c |
| Hubs | Joytech alloy quick release f & r |

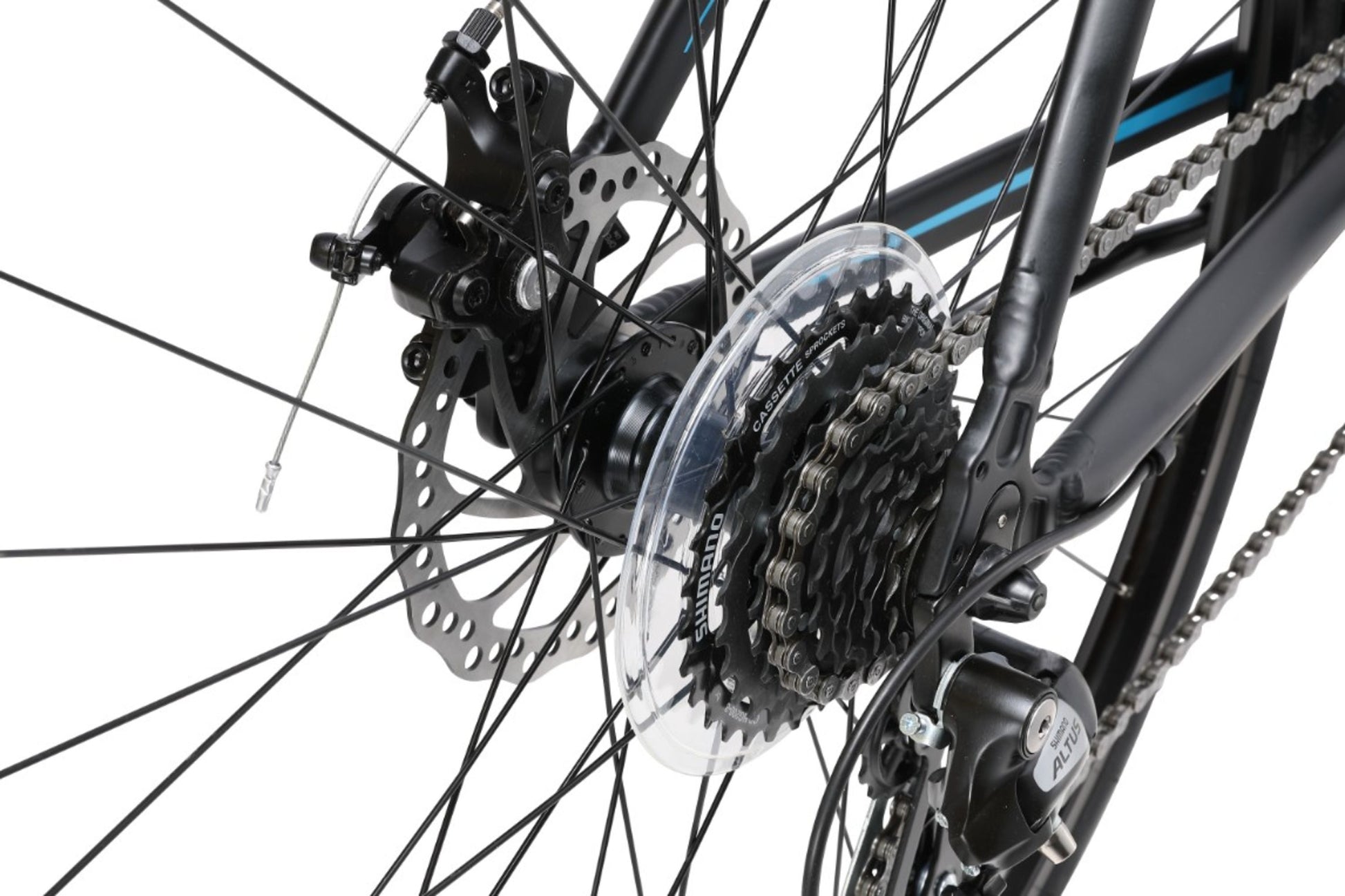

| Freewheel / Cassette | Shimano hg31 8-speed (11-34t) |
| Front Derailleur | Shimano tourney tx51 |
| Rear Derailleur | Shimano altus m310 |
| Handlebars | Reid alloy 600mm (s/m) 620mm (l/xl) wide 31.8 barbore |
| Stem | Alloy threadless |
| Shifters | Shimano ef500 integrated lever |
| Bottom Bracket | Ch52 sealed bearing |
| Brake Lever | Shimano ef500 integrated lever |
| Pedals | Alloy body and cage 9/16\ steel axle |
| Chain | Kmc z81 |
| Grips | Velo ergonomic grips black 125mm |

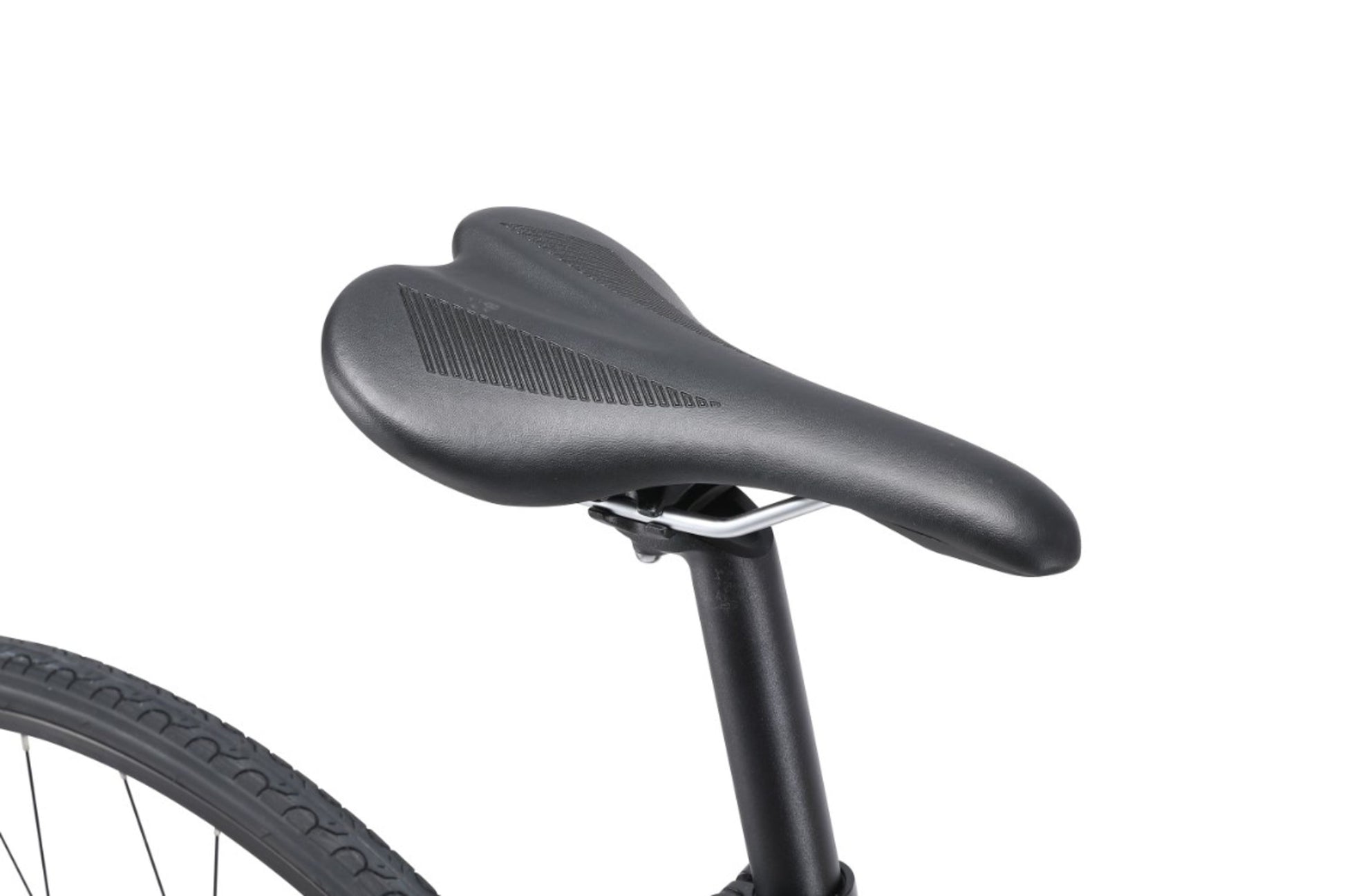

| Saddle | Reid city sport |
| Seatpost | Alloy 31.6mm micro adjust 300mm |

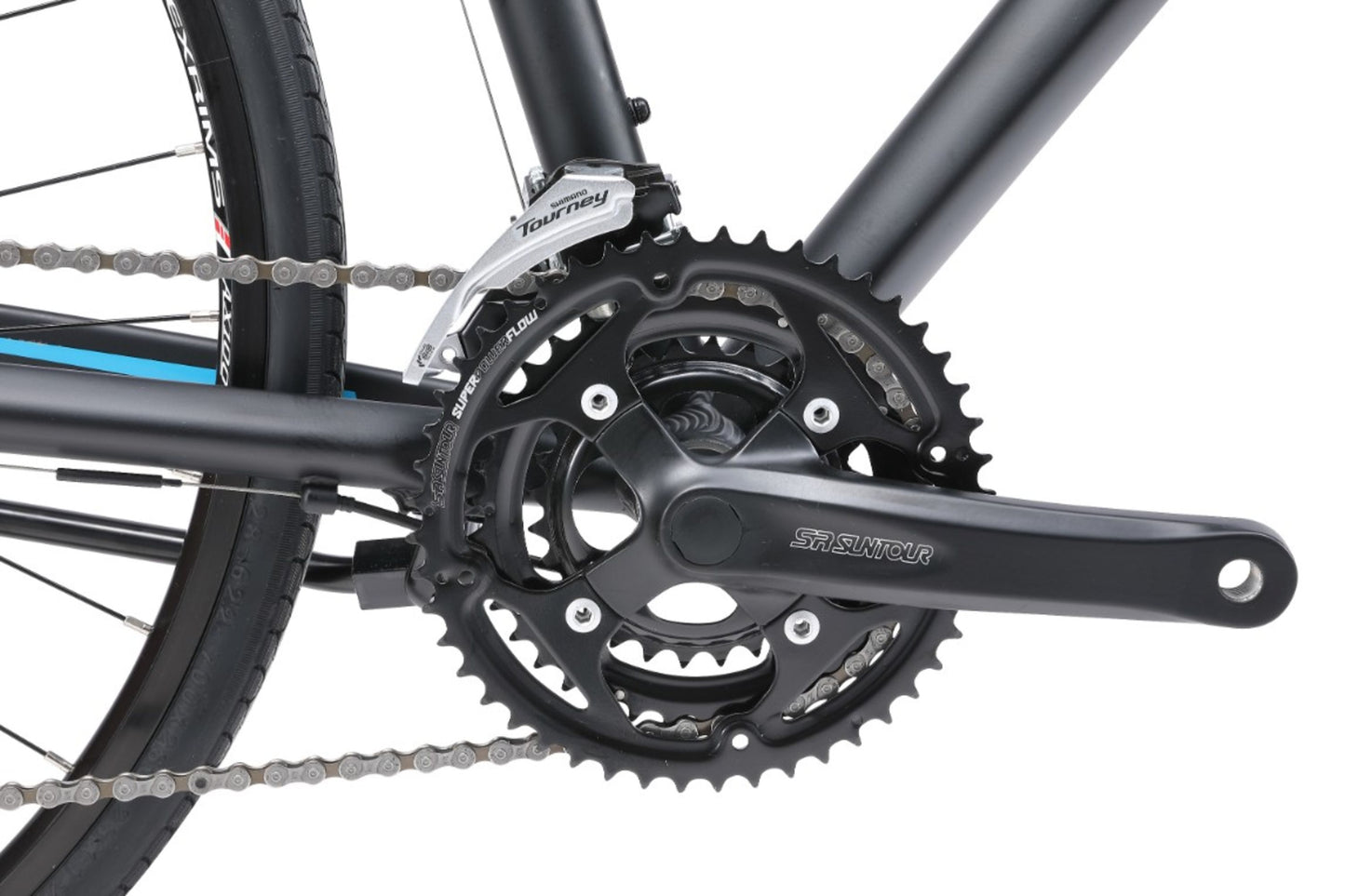

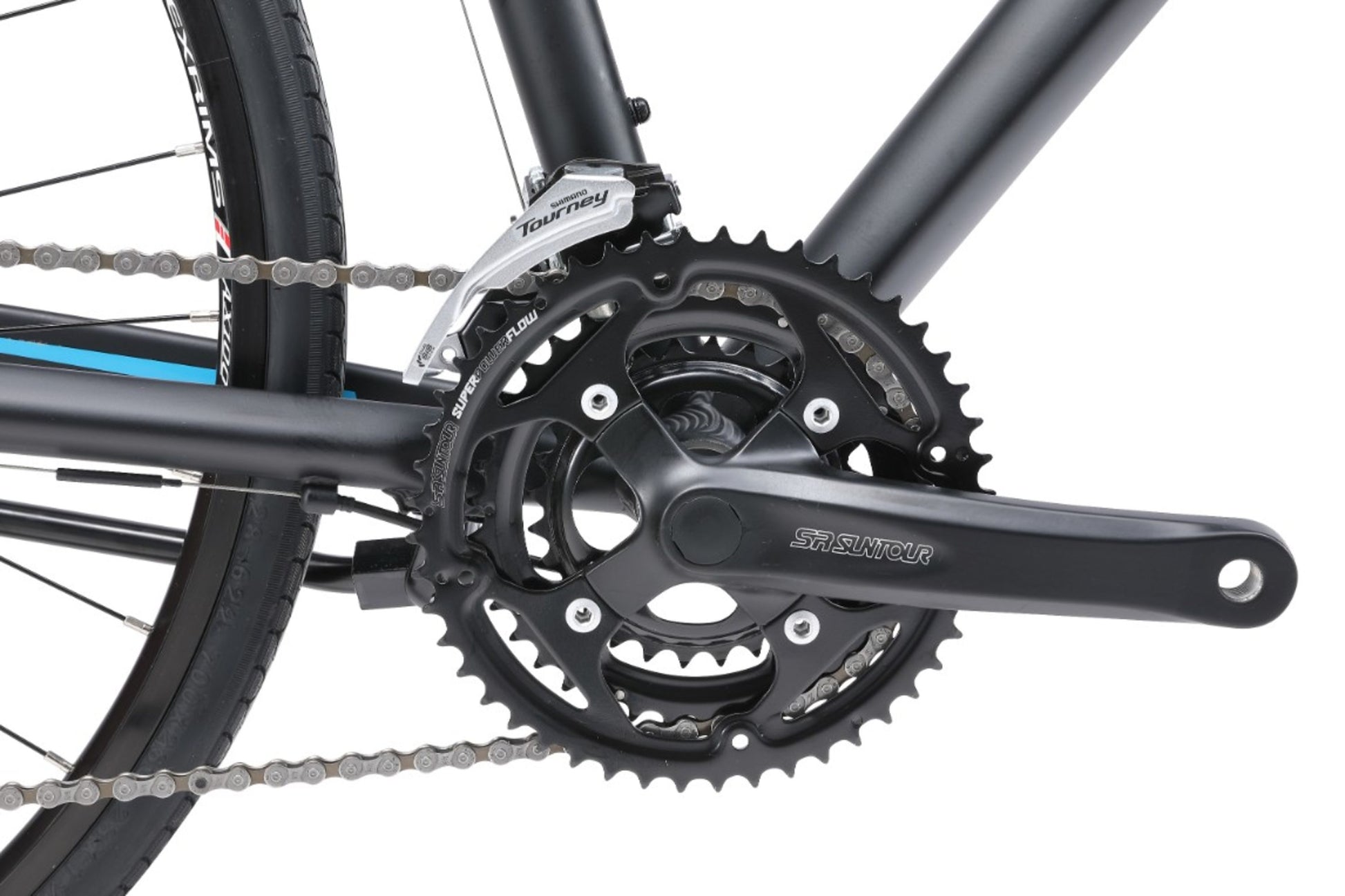

| Chainset | Alloy 170mm 28/38/48t |
| Kickstand | Not included |
| Bell | Yes |
| Small | Medium | Large | X Large | |
| Top tube length | 570 | 575 | 582 | 589 |
| Seat tube length | 480 | 510 | 540 | 570 |
| Head tube length | 150 | 160 | 170 | 180 |
| Seat tube angle | 72 | 72 | 72 | 72 |
| Head tube angle | 75 | 75 | 75 | 75 |
| RC length | 435 | 435 | 435 | 435 |
| BB drop | 75 | 75 | 75 | 75 |
| Fork offset | 48 | 48 | 48 | 48 |
| Front centre | 623 | 628 | 635 | 642 |
| Wheelbase | 1077 | 1082 | 1090 | 1098 |
| Full fork length | 405 | 405 | 405 | 405 |
| CM | FEET | |
| SMALL | 160cm - 167cm | 5'2 - 5'5 |
| MEDIUM | 167cm - 176cm | 5'5" - 5'8" |
| LARGE | 176cm - 185cm | 5'8" - 6'1" |
| X LARGE | 185cm - 195cm | 6'1" - 6'4" |
This series of how-to video guides will take you through each step of assembling and tuning your new Bike. Watch the series or choose the tasks you need help with:
Assembly instructions guide
If you prefer to work from step-by-step diagrams, you can use this Assembly Instruction Guide for key points on all basic areas of bike assembly.
Need more assistance?
Please contact Customer Service for friendly expert advice to help you get your bike ready to ride. We welcome your questions as they will help us to improve the instructions we provide in future.
Our Urban X1 Hybrid Bike Black includes the industry-leading Reid Warranty: lifetime on frame and rigid forks, 2 years on non-consumable parts and a free first service to get you going. Test ride in-store or shop online to enjoy a 30 Day Test Ride to guarantee you get a great deal.
Click and Collect
Buy online and collect in-store from our Melbourne, Brisbane or Perth stores fully assembled by our bike mechanics and ready to ride.
Be advised that your chosen store will phone you within 24 hours of ordering to confirm a collection date based on your availability, the location of stock and your chosen collection store.
Home Delivery
Our bikes are shipped in a box 85% assembled and require basic assembly, like turning handlebars and inserting pedals. Check out our Assembly Videos that give instructions on how to do this.
Buy One, Plant One
Since January 2020 we have partnered with Eden Reforestation Projects to donate enough money to pay a local person a fair wage to grow, plant and guard to maturity 1 native tree for every bike we sell.
We've now planted more than 200,000 trees and counting.
