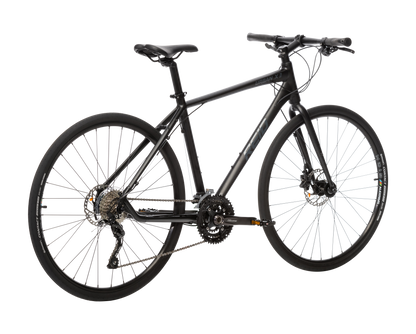

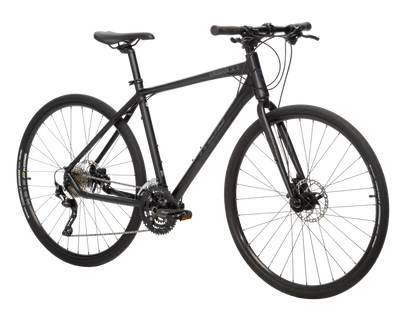

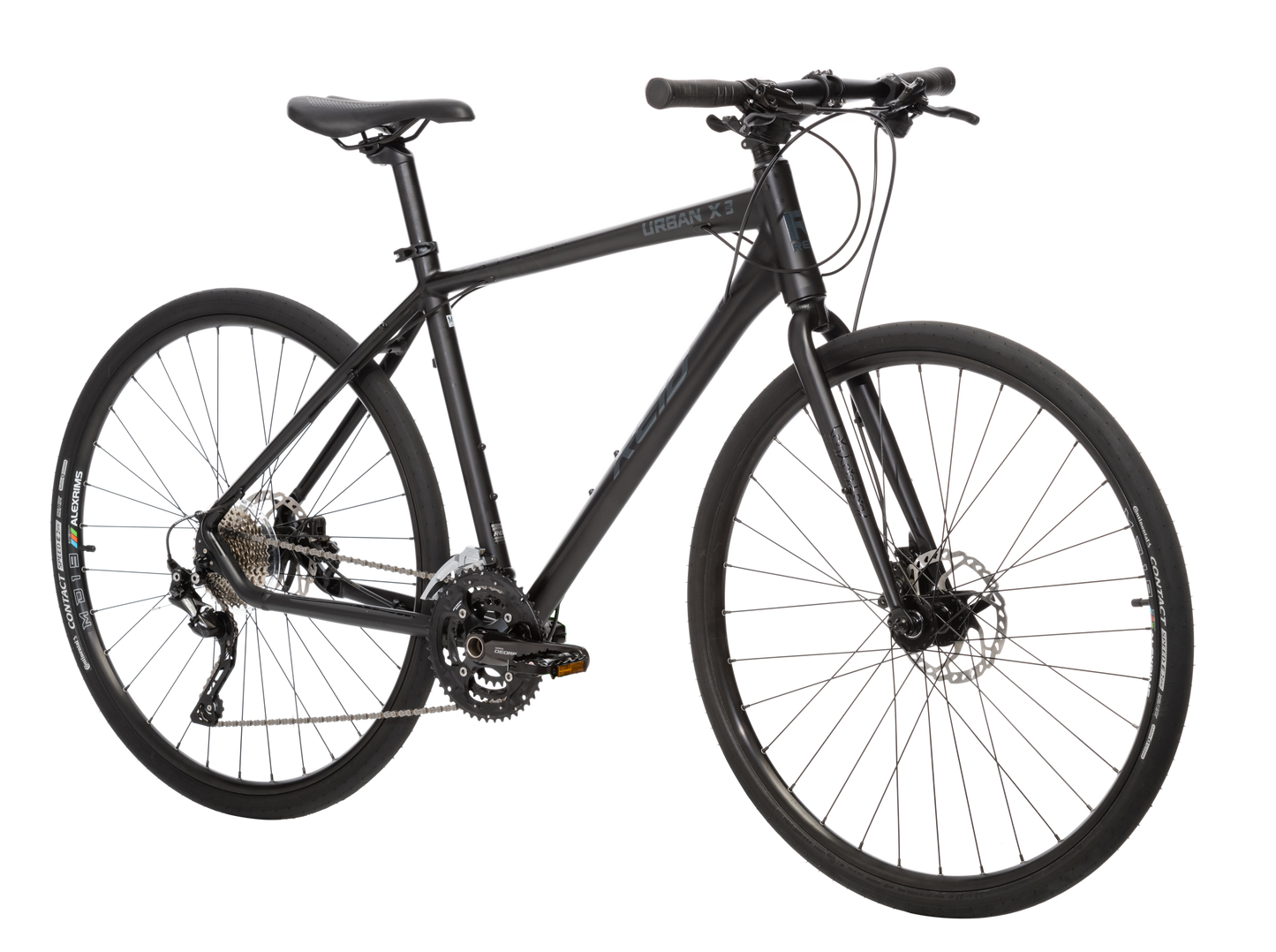

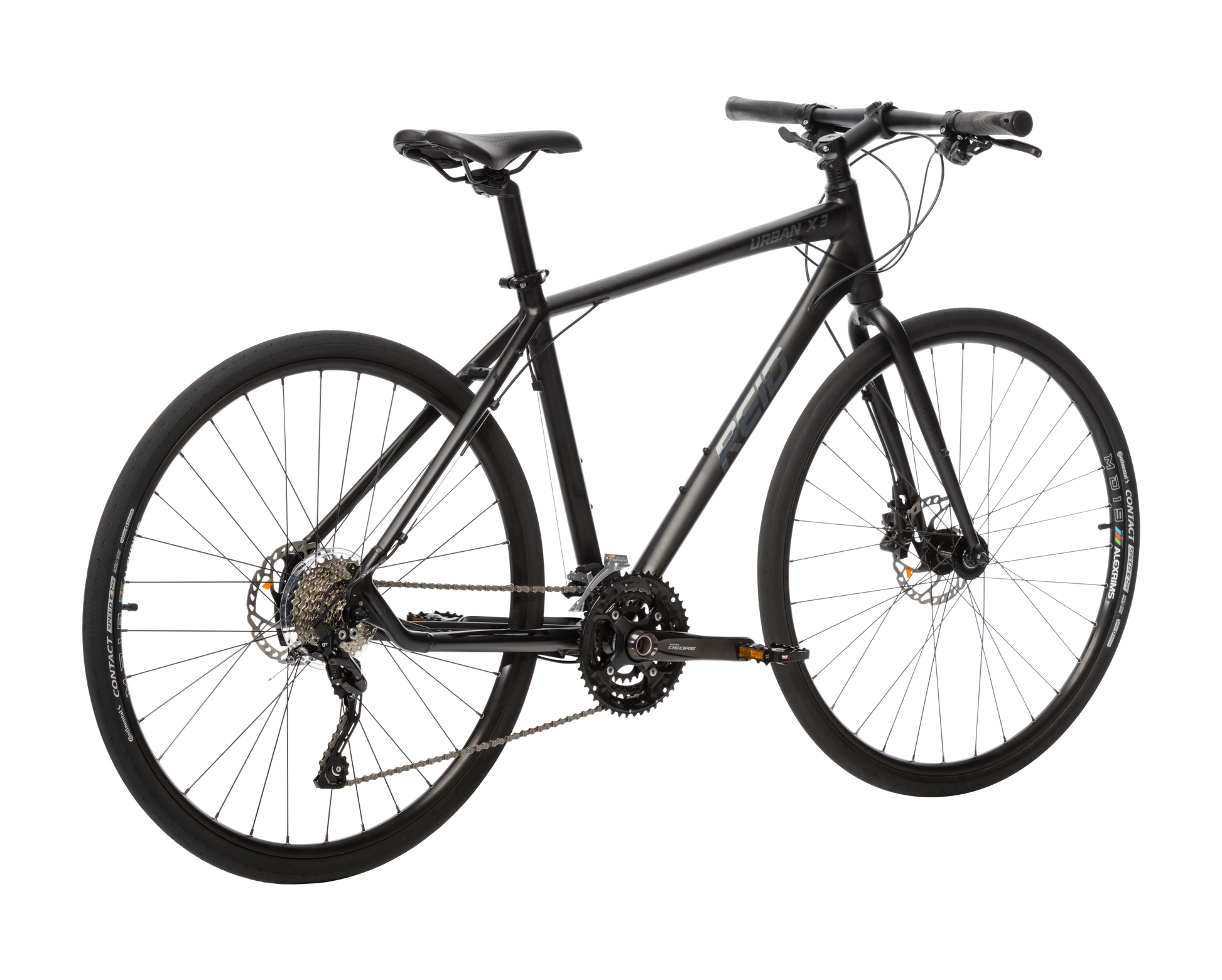

Our flagship fast-commuter features a Shimano Deore drivetrain with hydraulic discs for a crisp and refined ride.
The Urban X3 has been specified with trusted Shimano components throughout the drivetrain, controls and braking to deliver a fast and lightweight bike with performance handling characteristics.
True to the versatile nature of the Urban range; the X3 is the one bike you need for fast commutes, fitness rides or weekend explorations.

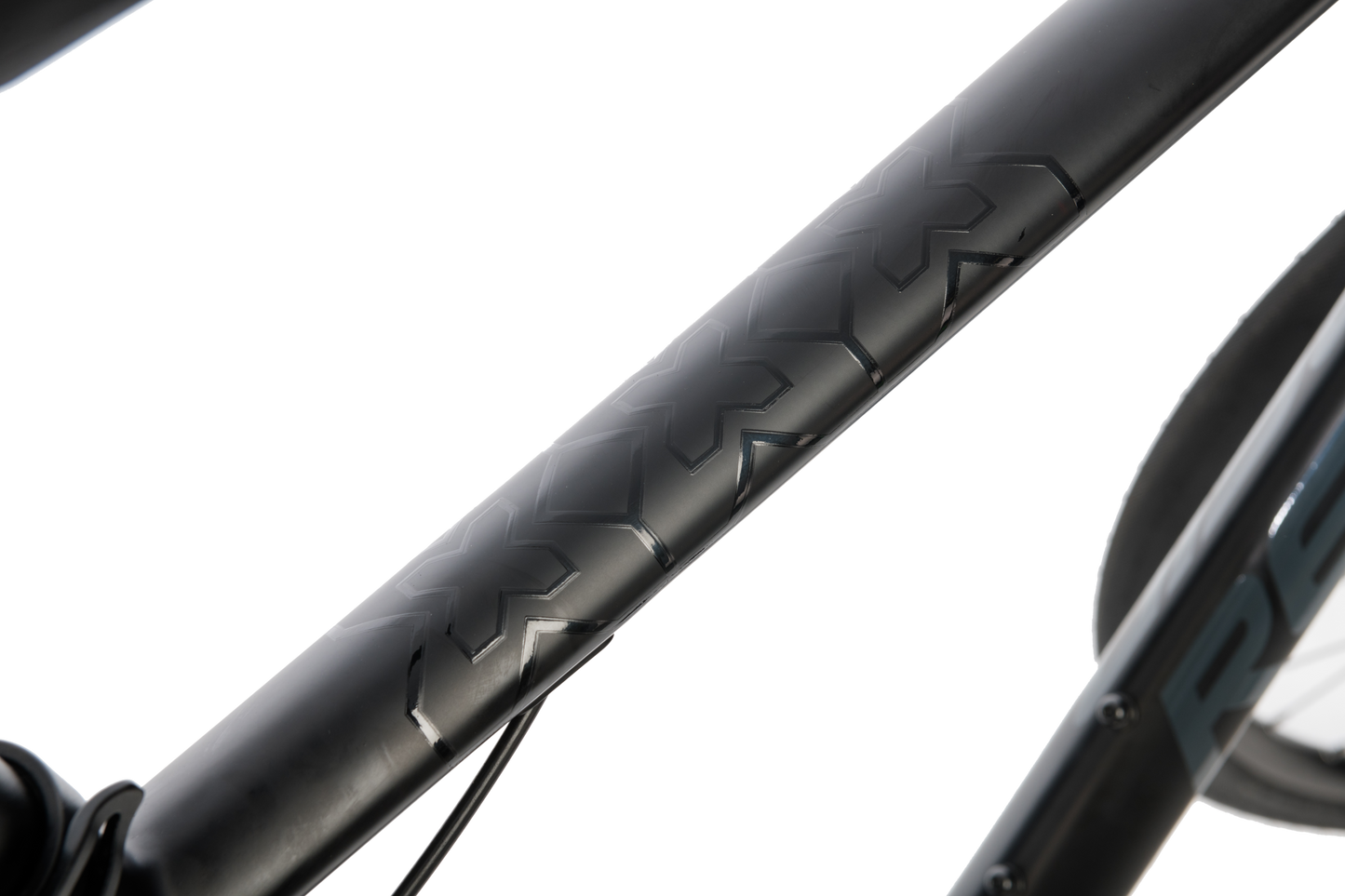

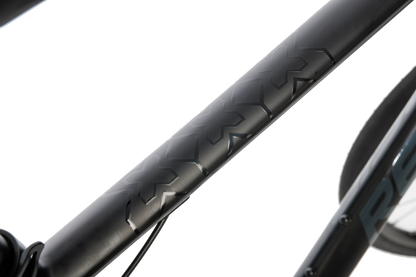

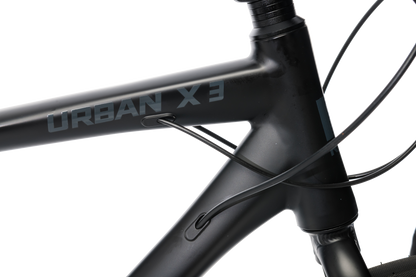

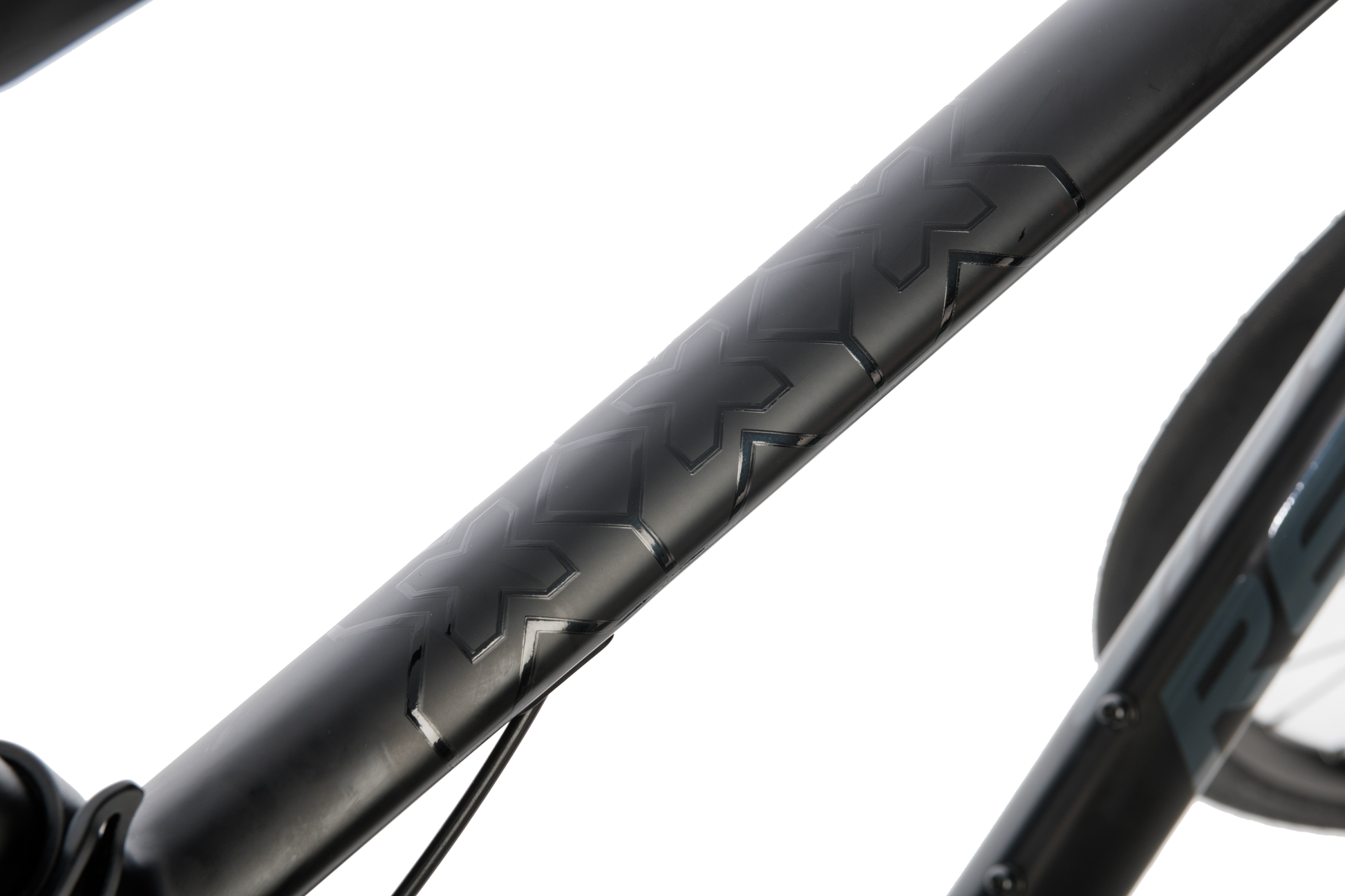

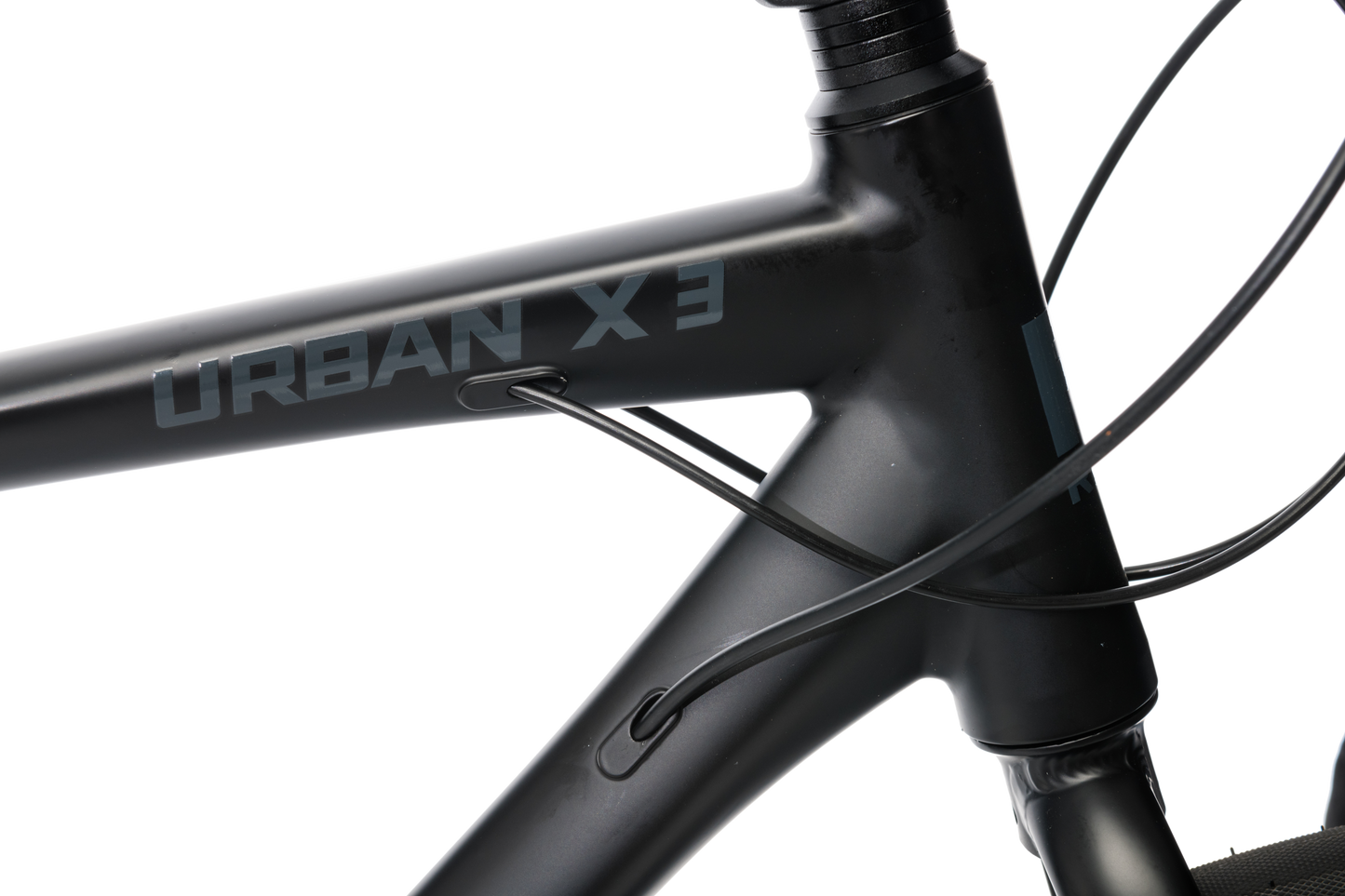

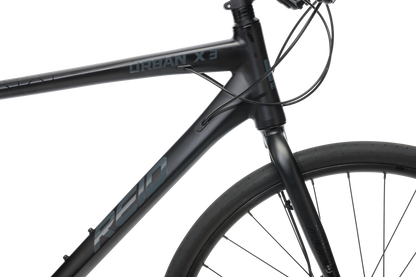

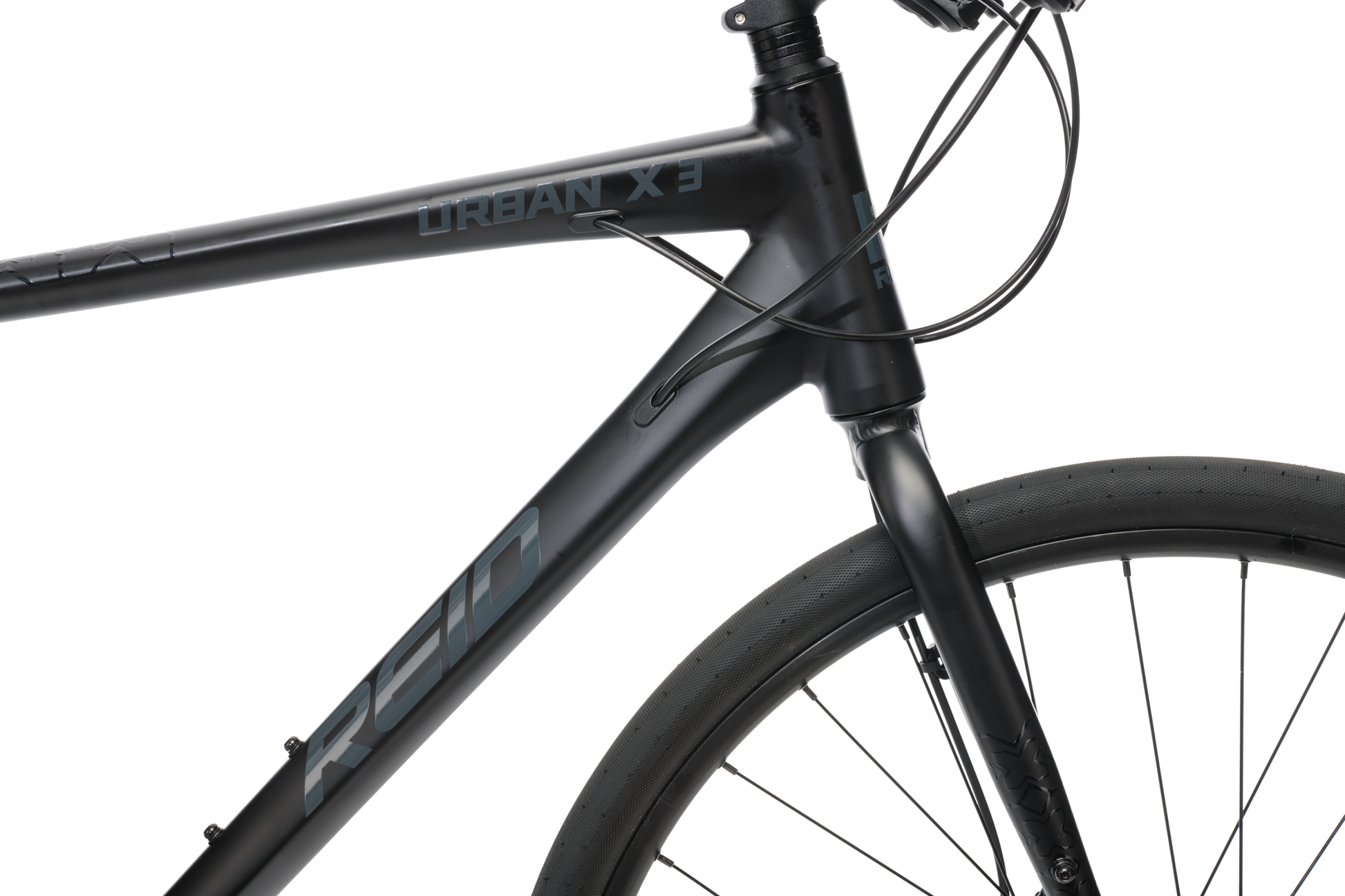

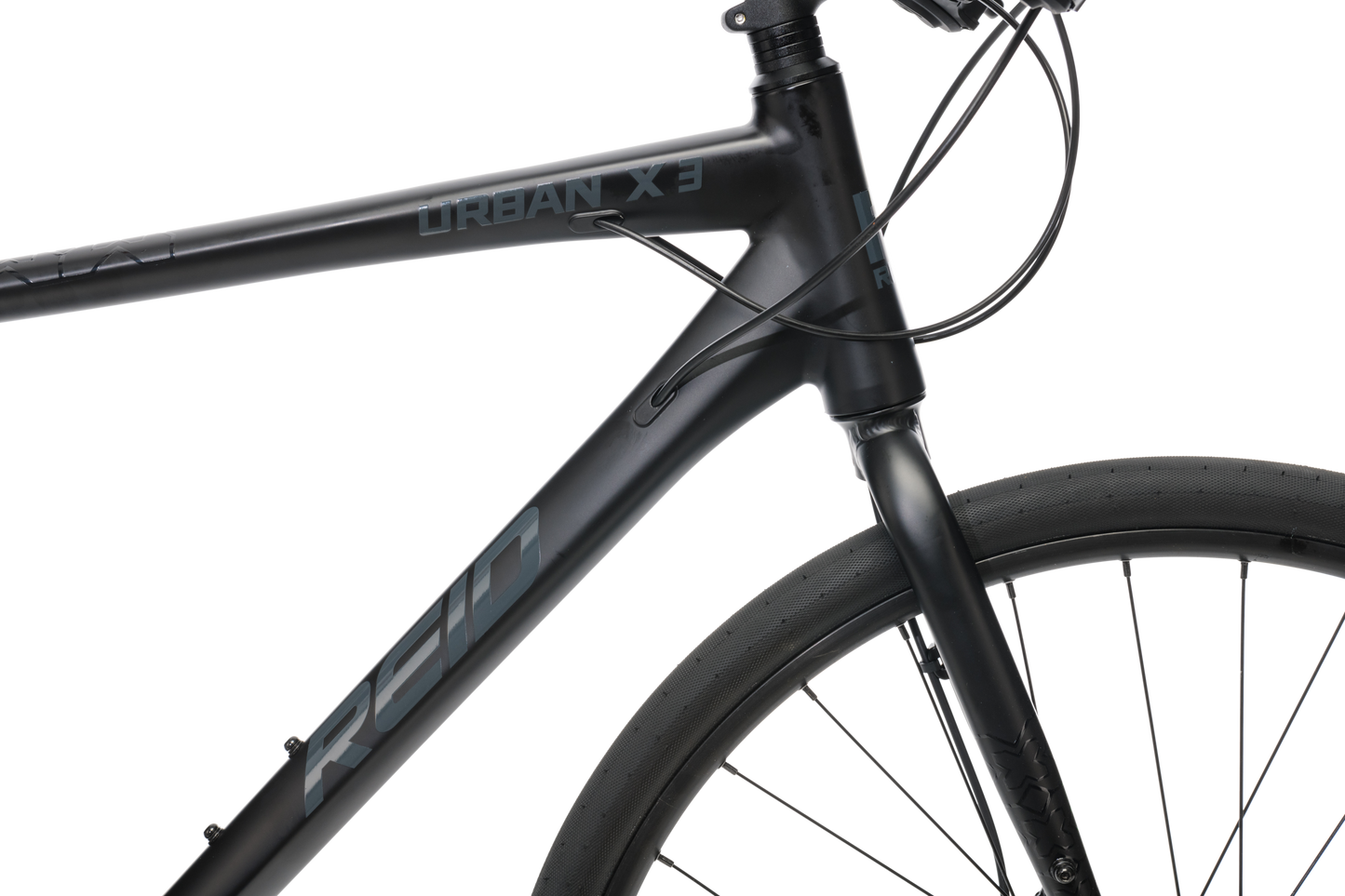

The X3 is built on a new lightweight hydroformed 6061 alloy frame with internal cabling; and features all the mounts you need to rig your ride with fenders, mudguards and pannier racks for luggage.

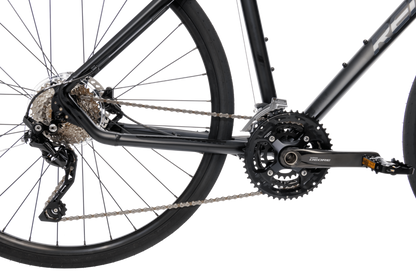

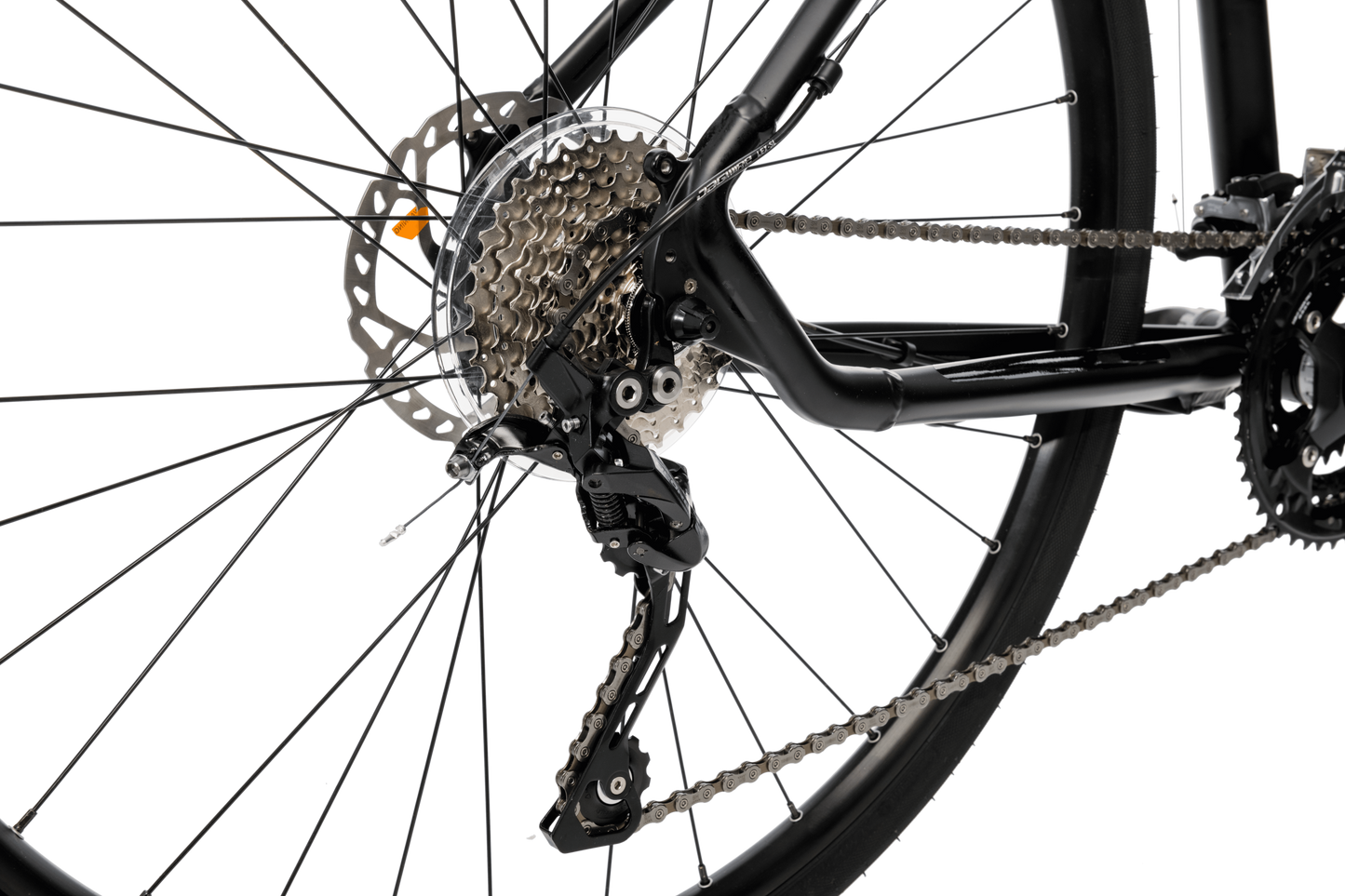

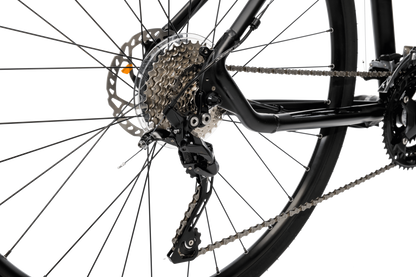

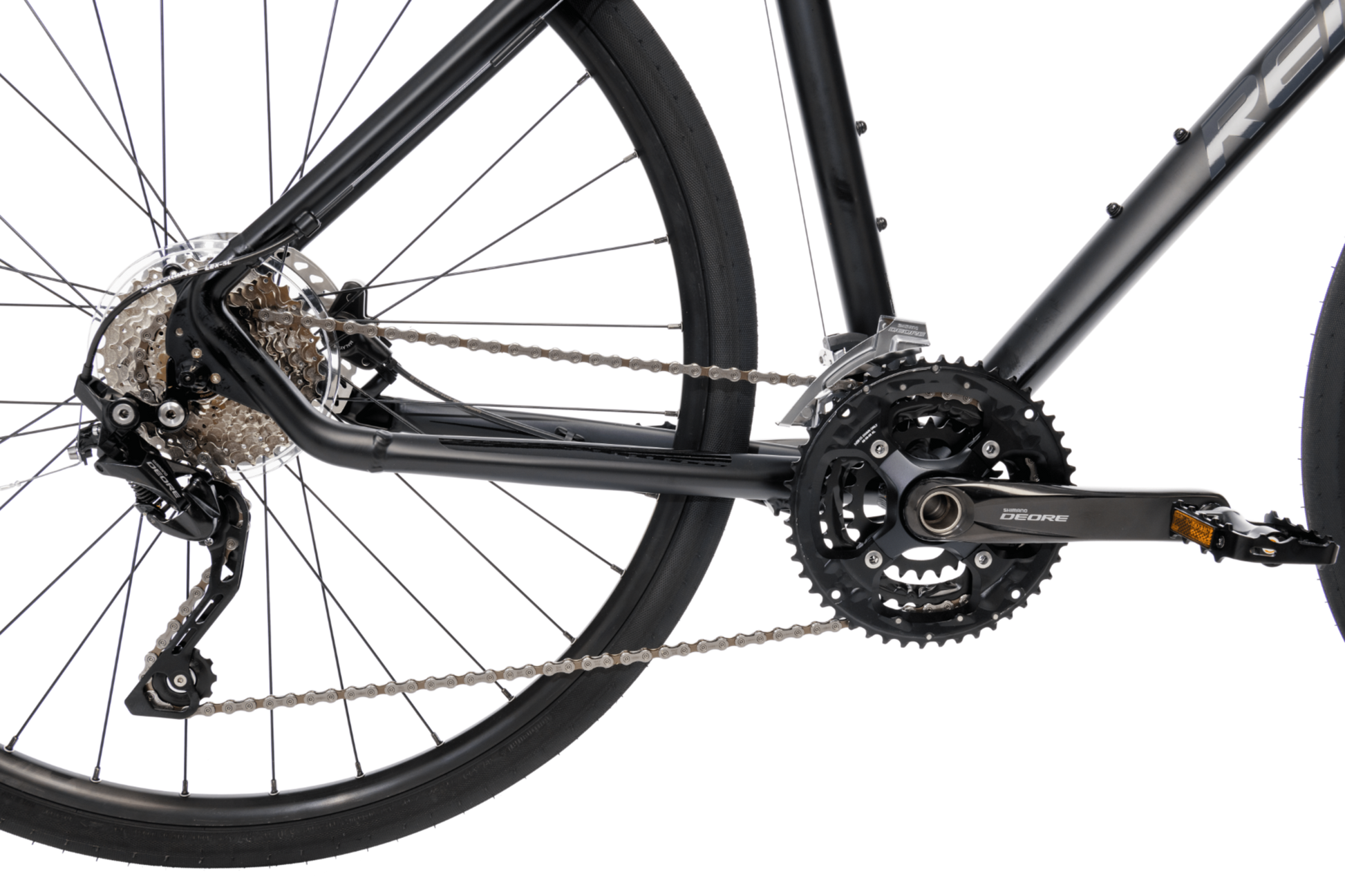

Featuring Shimano Deore derailleurs and chainset with integrated brake and gear levers; the 3 x 10 speed drivetrain shifts like clockwork and offers plenty of range.

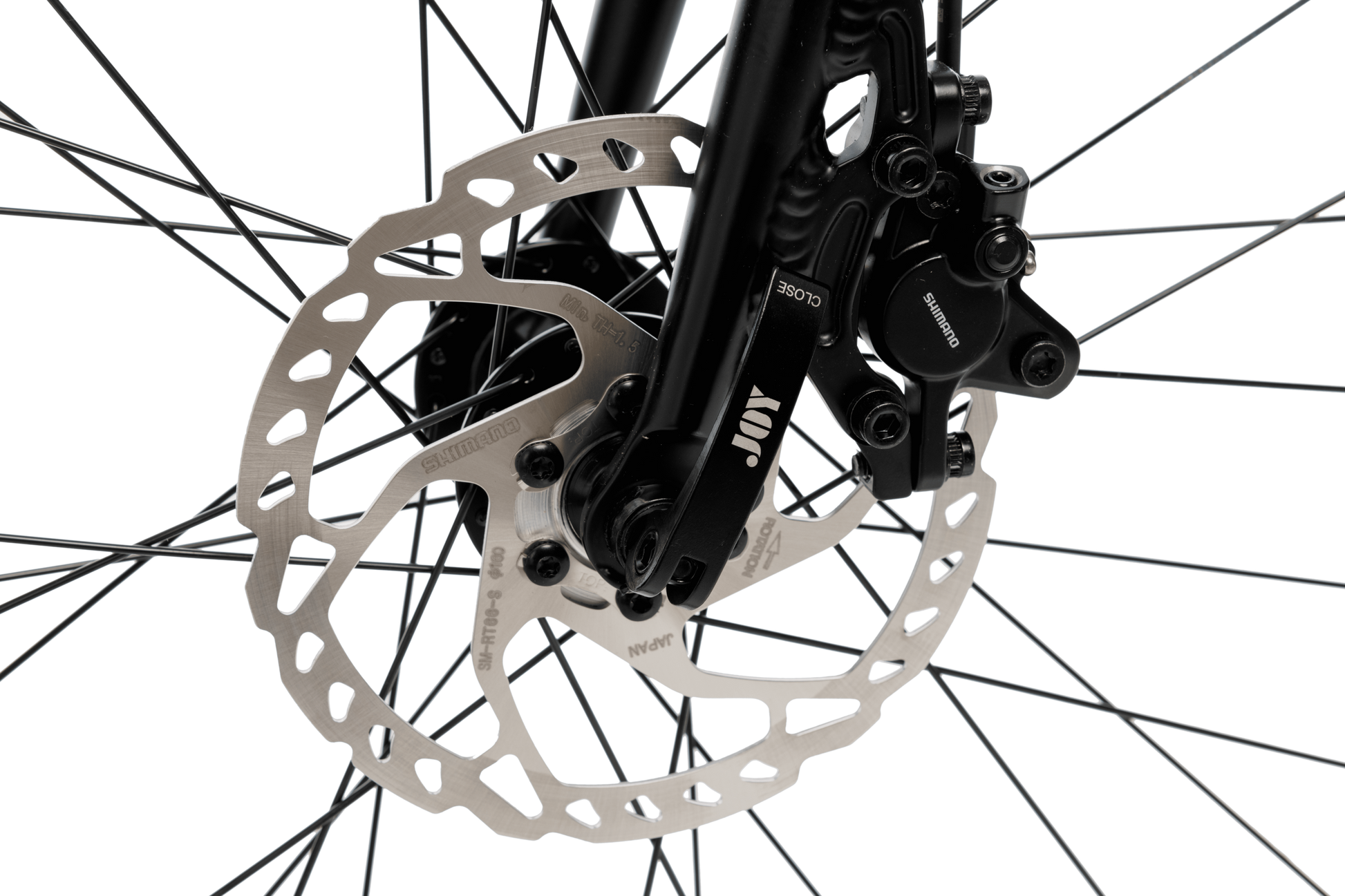

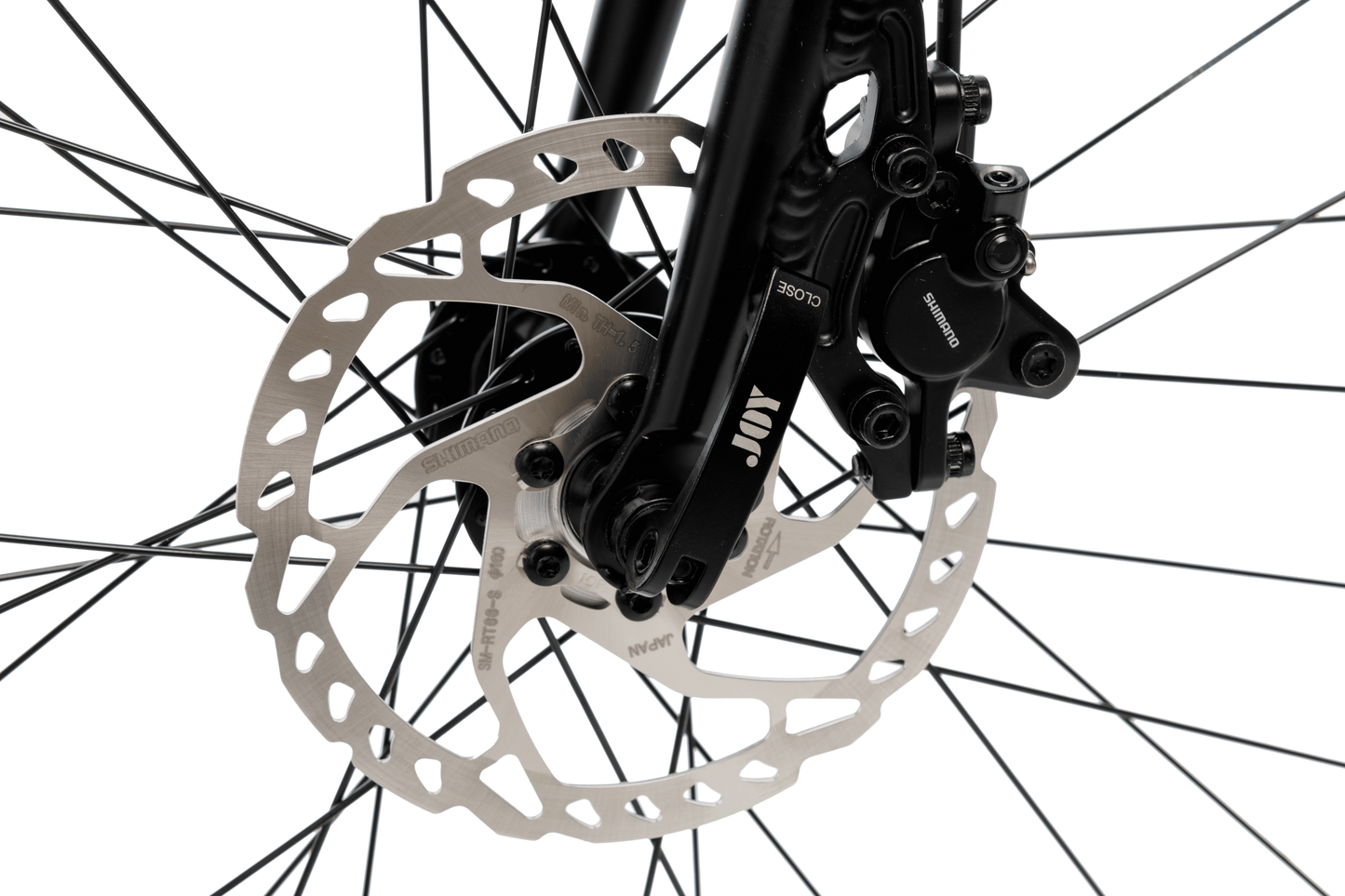

The Urban X3 sees the introduction of Shimano hydraulic disc brakes for improved control. Hydraulics offer more power with less lever force required than other systems, which gives better modulation and more braking power - even when conditions are wet.
Puncture resistant Continental tyres fitted to Alex MD-19 double wall alloy rims will withstand years of hard city riding on our less-than-perfect streets and paths.
Key Features:

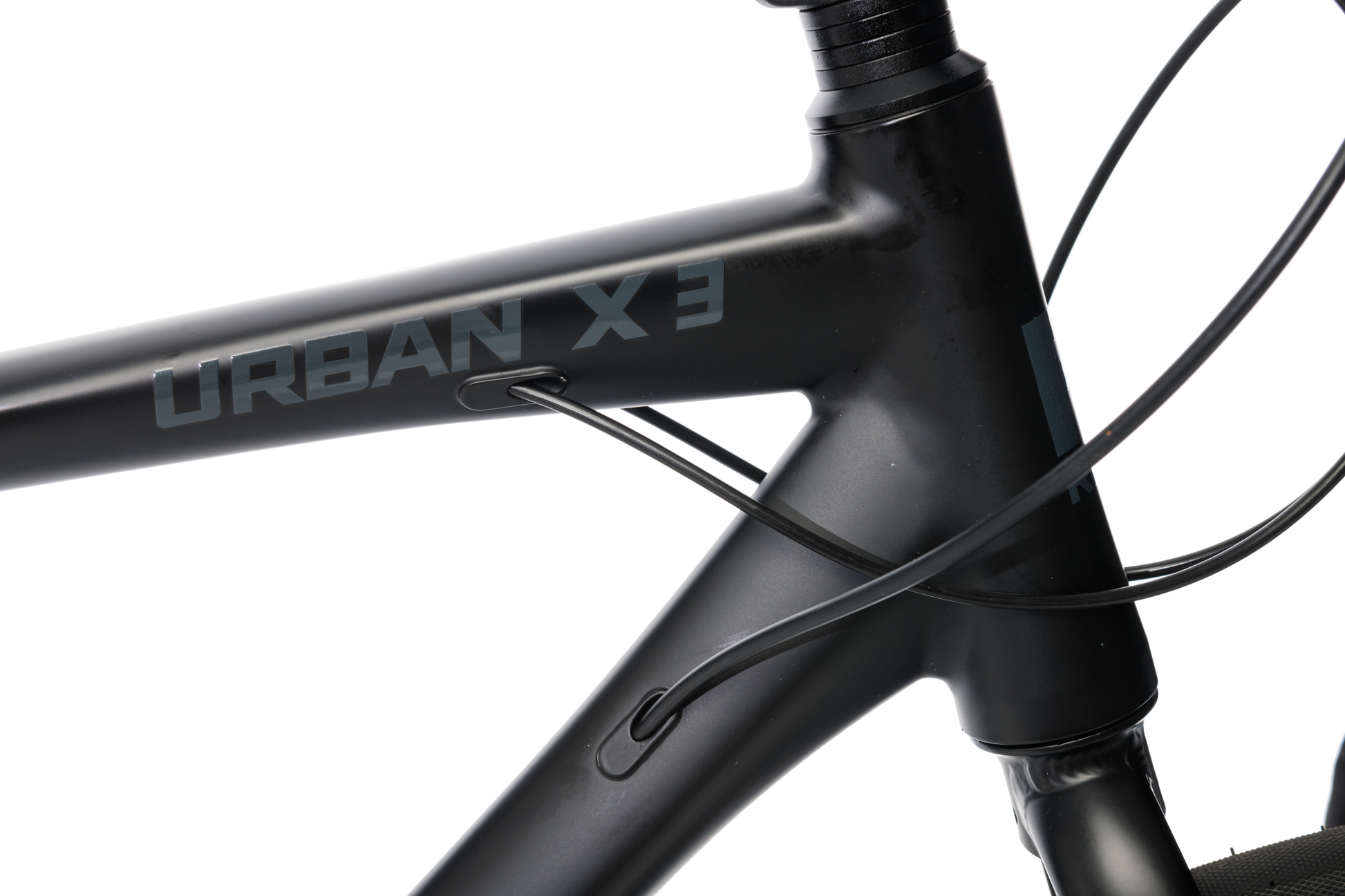

- Lightweight hydroformed alloy frame with internal cable routing and headset.
- Fast Commuter bike geometry for confident urban handling.

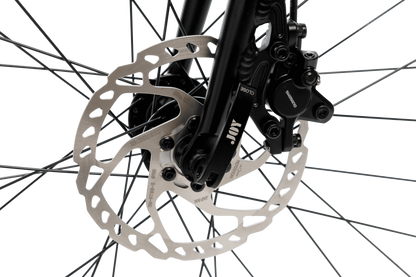

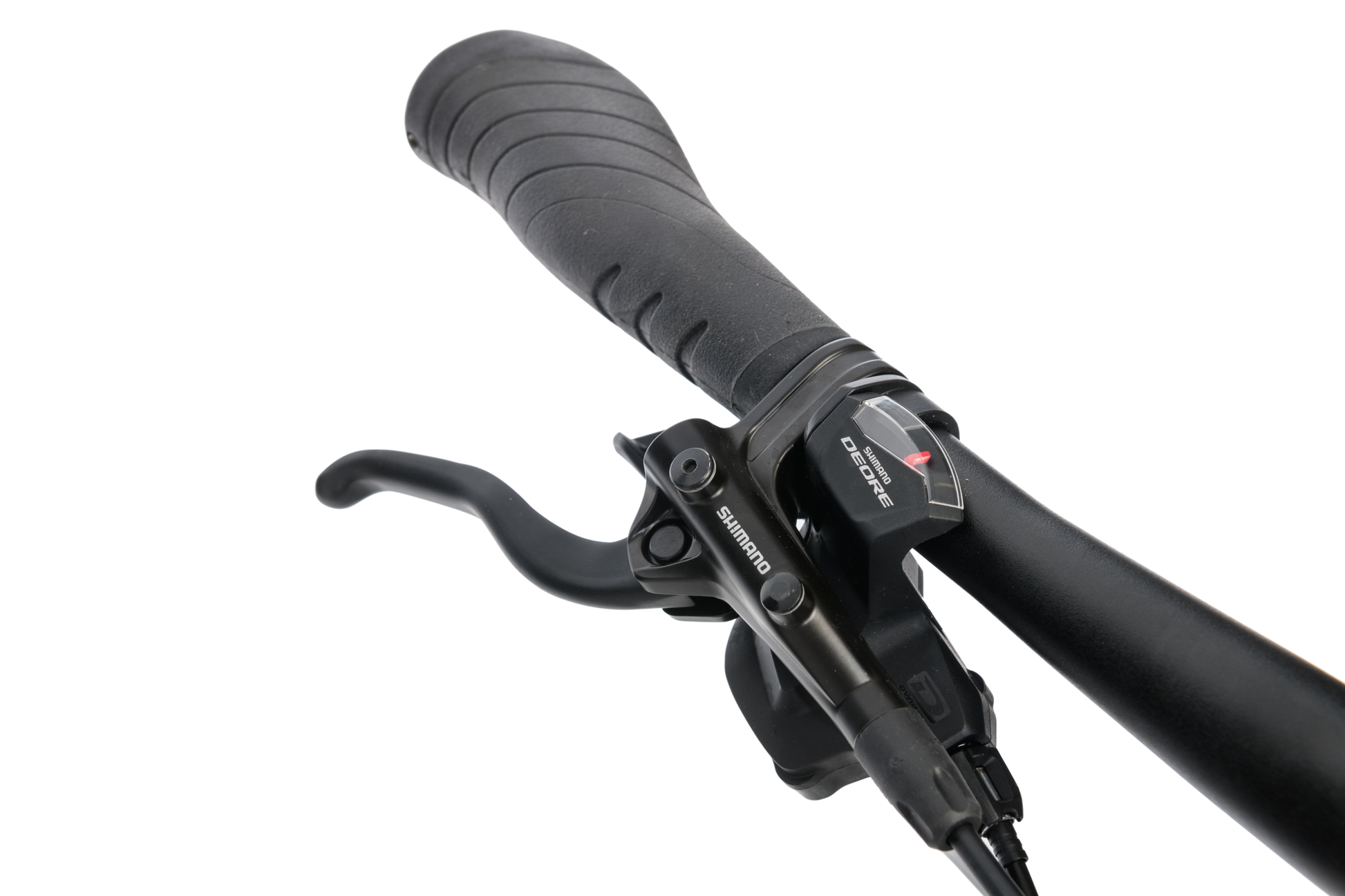

- Shimano M395 hydraulic disc brakes for reliable stopping power and fine control in all weather.
- Quality shifting with Shimano Deore T6000 30-speed gearing.
- Performance wheelset with Alex MD19 double wall alloy rims with stainless spokes.
- Puncture resistant Continental Speed Contact 700 x 35c tyres.
| Frame | Reid 6061 hydroformed alloy with internal cabling |
| Forks | Reid hydroformed alloy rigid for disc |
| Weight | 11.84 kg |
| Wheelset / Rim | Alex md19 disc specific with stainless spokes |
| Brakes | Shimano m395/396 hydraulic disc brakes |
| Tyres | Continental contact speed 700x35c |
| Hubs | Alloy novatec sealed bearing qr axles |

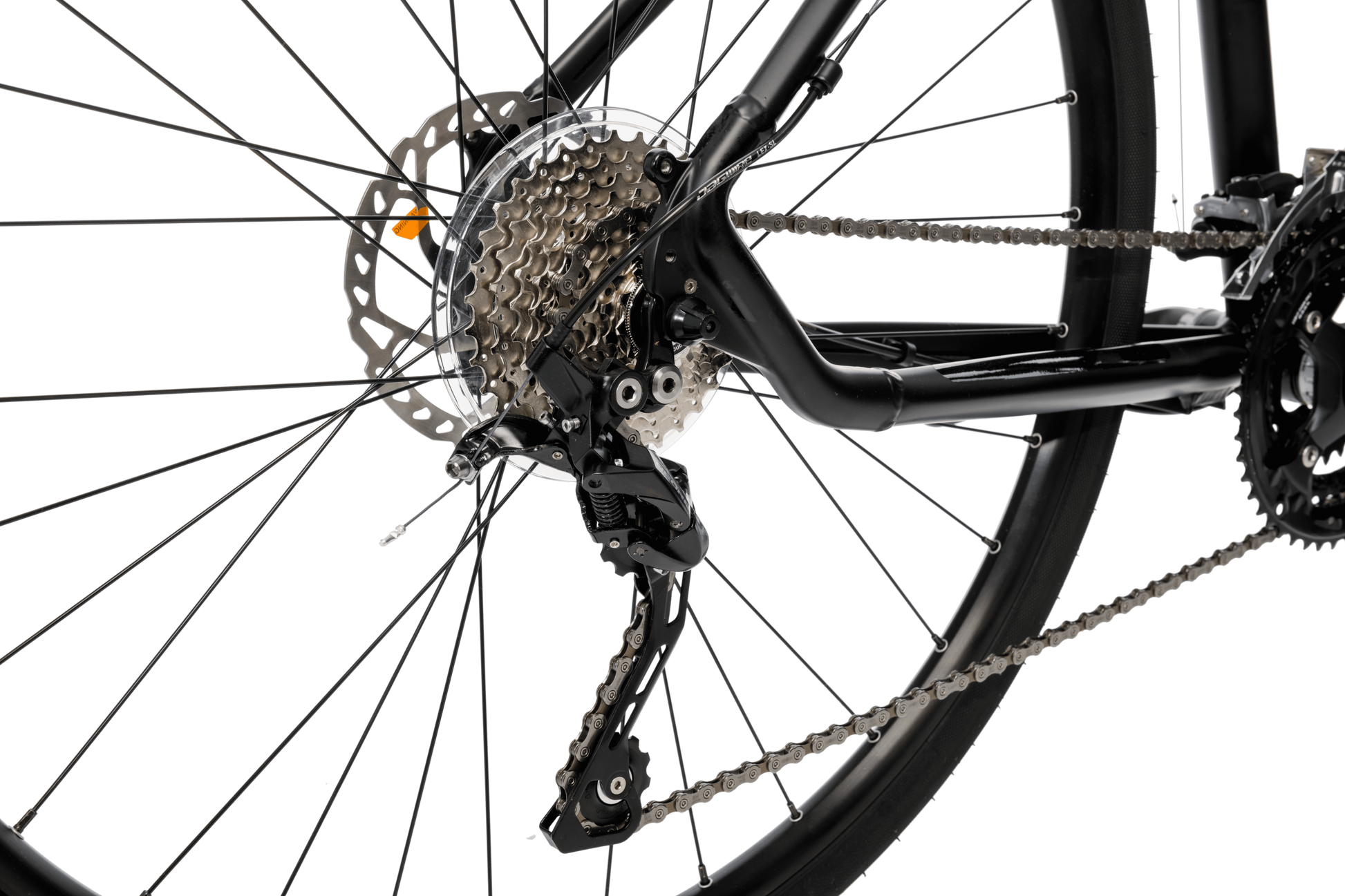

| Freewheel / Cassette | Shimano hg500 10-speed (11-34t) |
| Front Derailleur | Shimano deore t6000 |
| Rear Derailleur | Shimano deore t6000 |
| Handlebars | Reid alloy 600mm 31.8 barbore double butted |
| Stem | Alloy threadless |

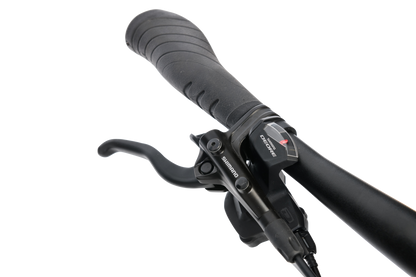

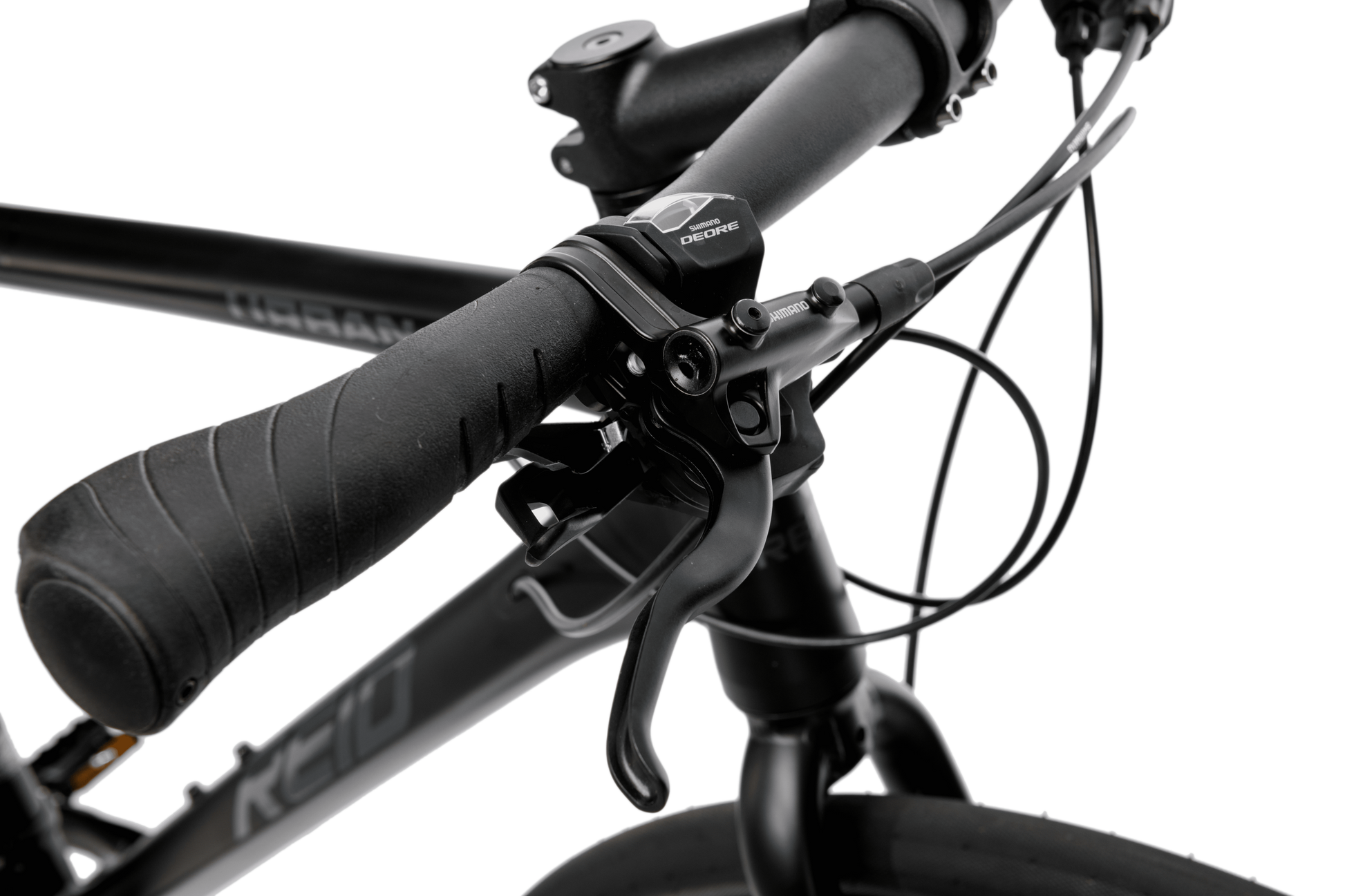

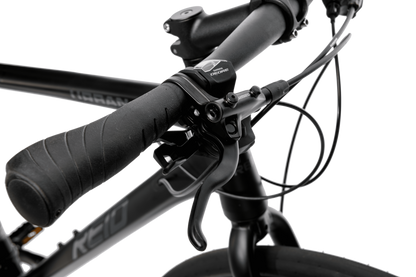

| Shifters | Shimano m396/m395 integrated lever |
| Bottom Bracket | Shimano deore bb52 hollowtech ii |
| Brake Lever | Shimano m396/m395 integrated lever |
| Pedals | Alloy body & cage 9/16\ crmo axle |
| Chain | Shimano hg54 |
| Grips | Comfort dual density lock-on grip |

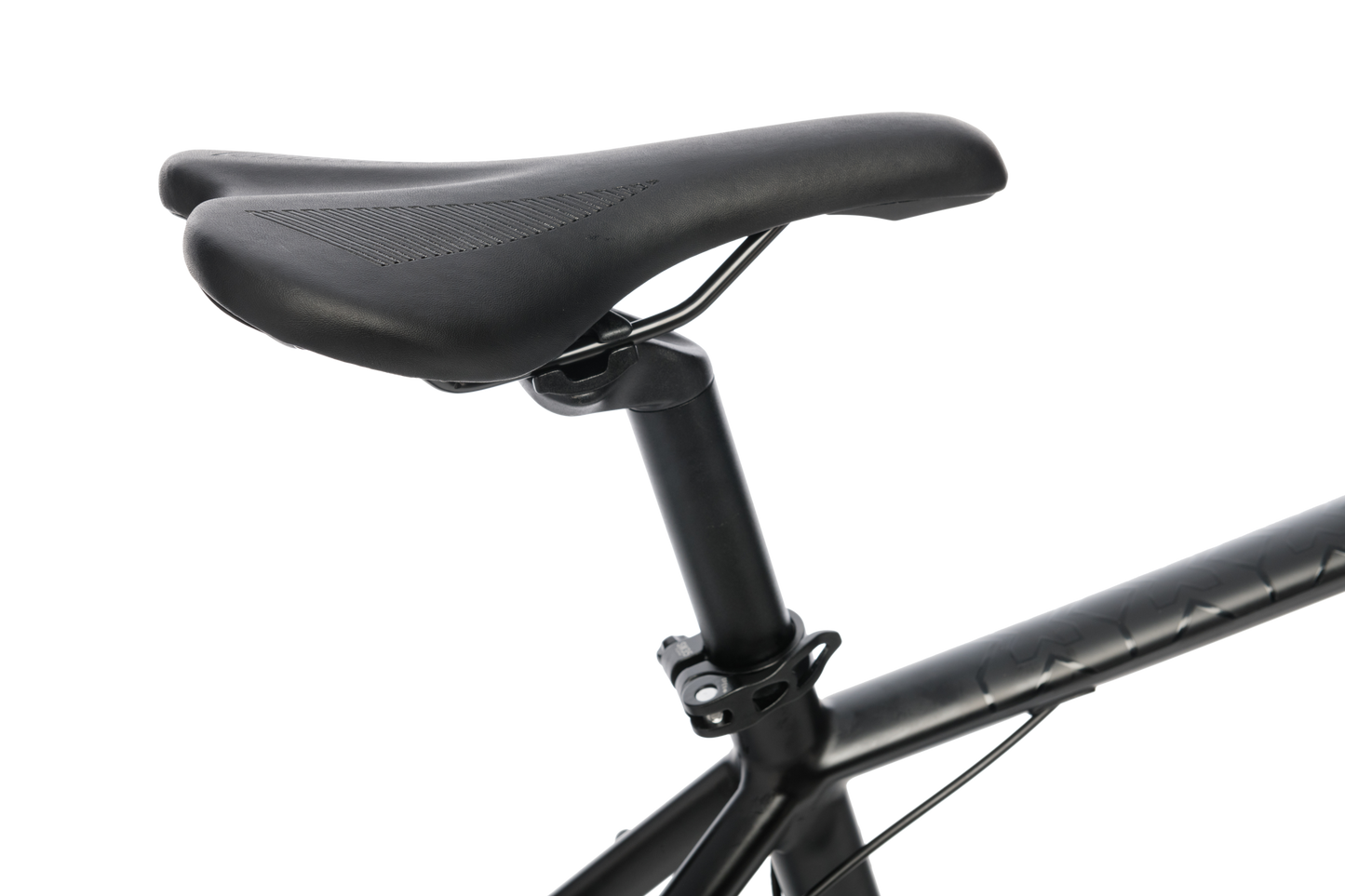

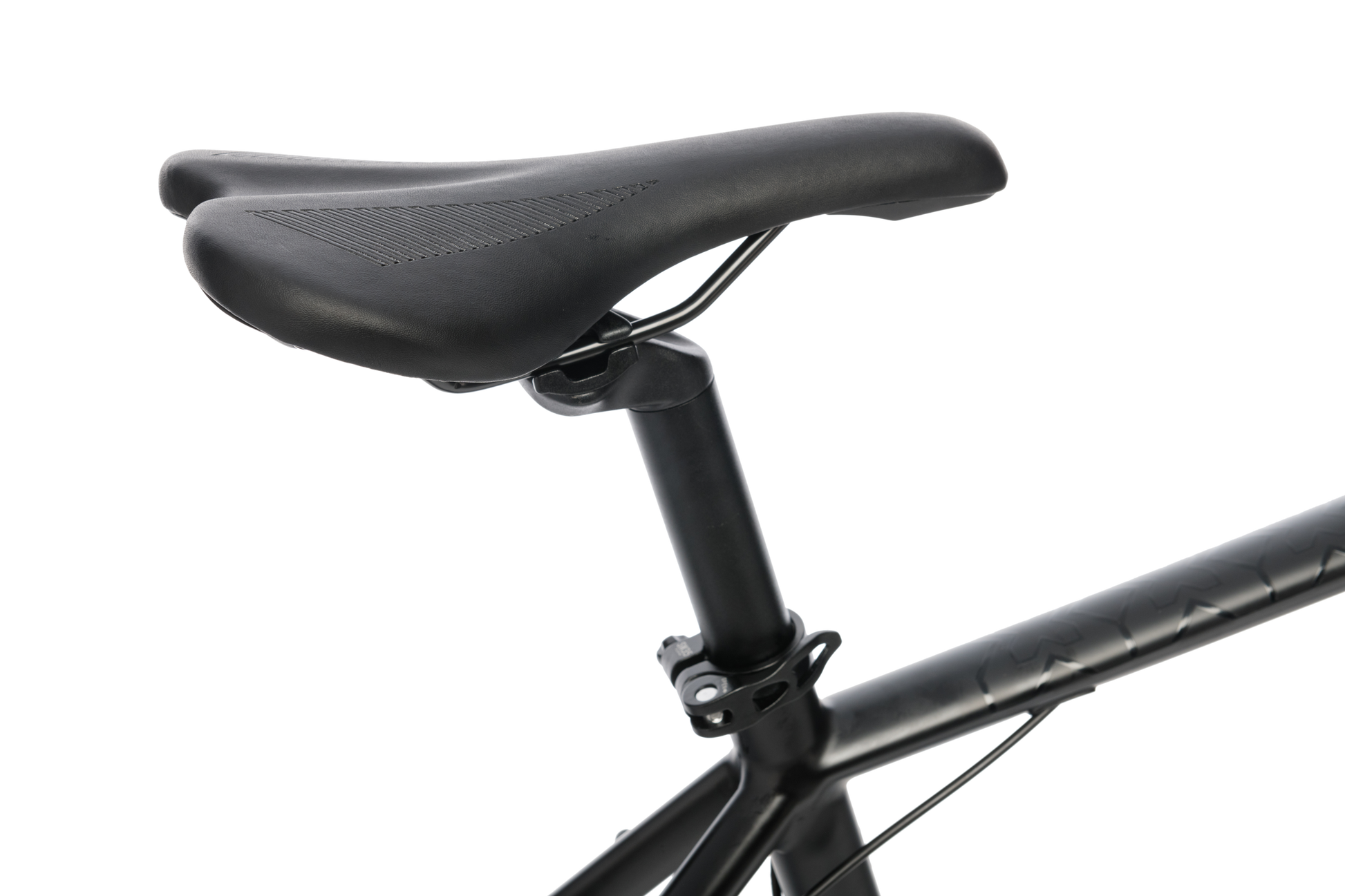

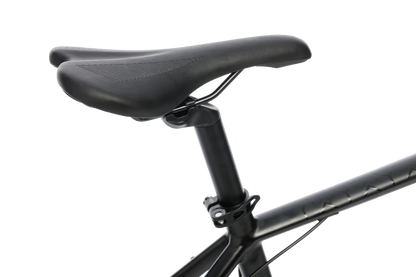

| Saddle | Reid city comfort |
| Seatpost | Alloy 31.6mm micro adjust 300mm |

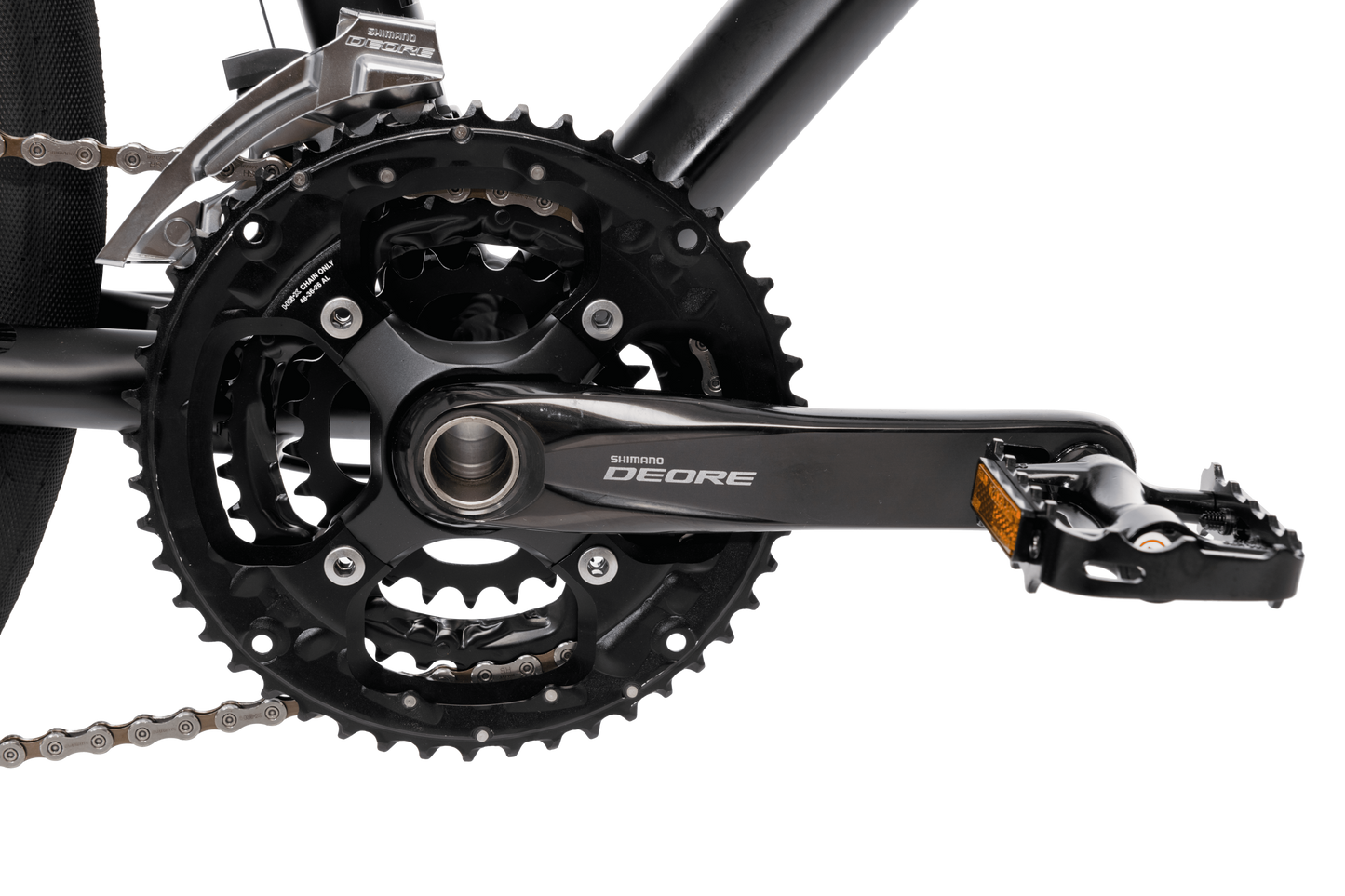

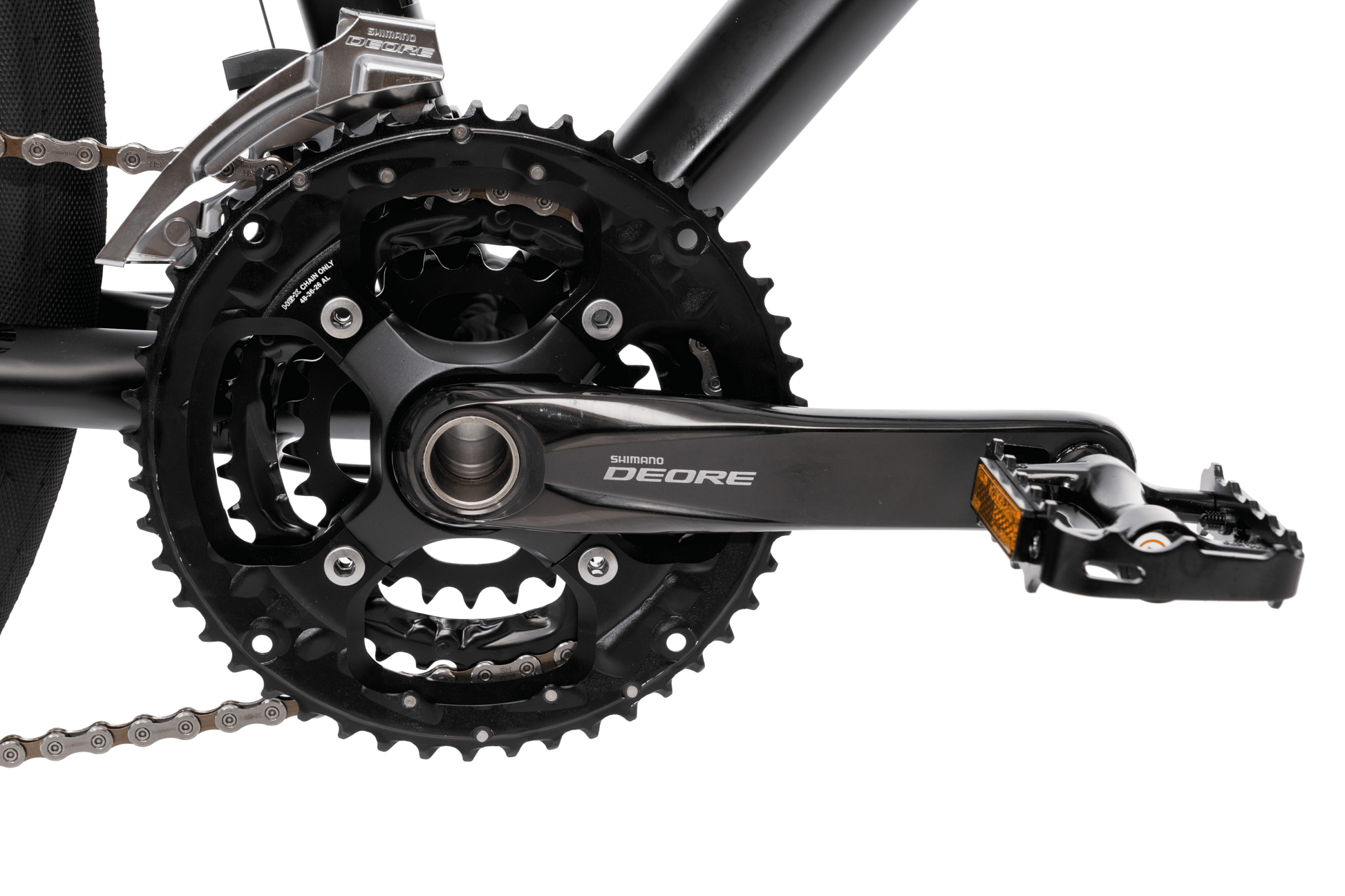

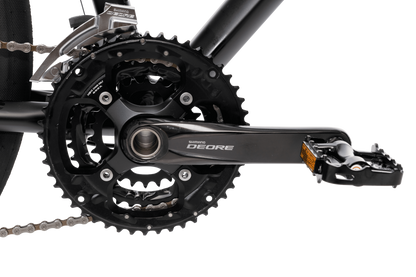

| Chainset | Shimano deore t6010 175mm 26/36/48tt |
| Kickstand | Not included |
| Bell | Yes |
| Small | Medium | Large | X Large | |
| Top tube length | 570 | 575 | 582 | 589 |
| Seat tube length | 480 | 510 | 540 | 570 |
| Head tube length | 150 | 160 | 170 | 180 |
| Seat tube angle | 72 | 72 | 72 | 72 |
| Head tube angle | 75 | 75 | 75 | 75 |
| RC length | 435 | 435 | 435 | 435 |
| BB drop | 75 | 75 | 75 | 75 |
| Fork offset | 48 | 48 | 48 | 48 |
| Front centre | 623 | 628 | 635 | 642 |
| Wheelbase | 1077 | 1082 | 1090 | 1098 |
| Full fork length | 405 | 405 | 405 | 405 |
| CM | FEET | |
| SMALL | 160cm - 167cm | 5'2" - 5'5" |
| MEDIUM | 167cm - 176cm | 5'5" - 5'8" |
| LARGE | 176cm - 185cm | 5'8" - 6'1" |
| X LARGE | 185cm - 195cm | 6'1" - 6'4" |
