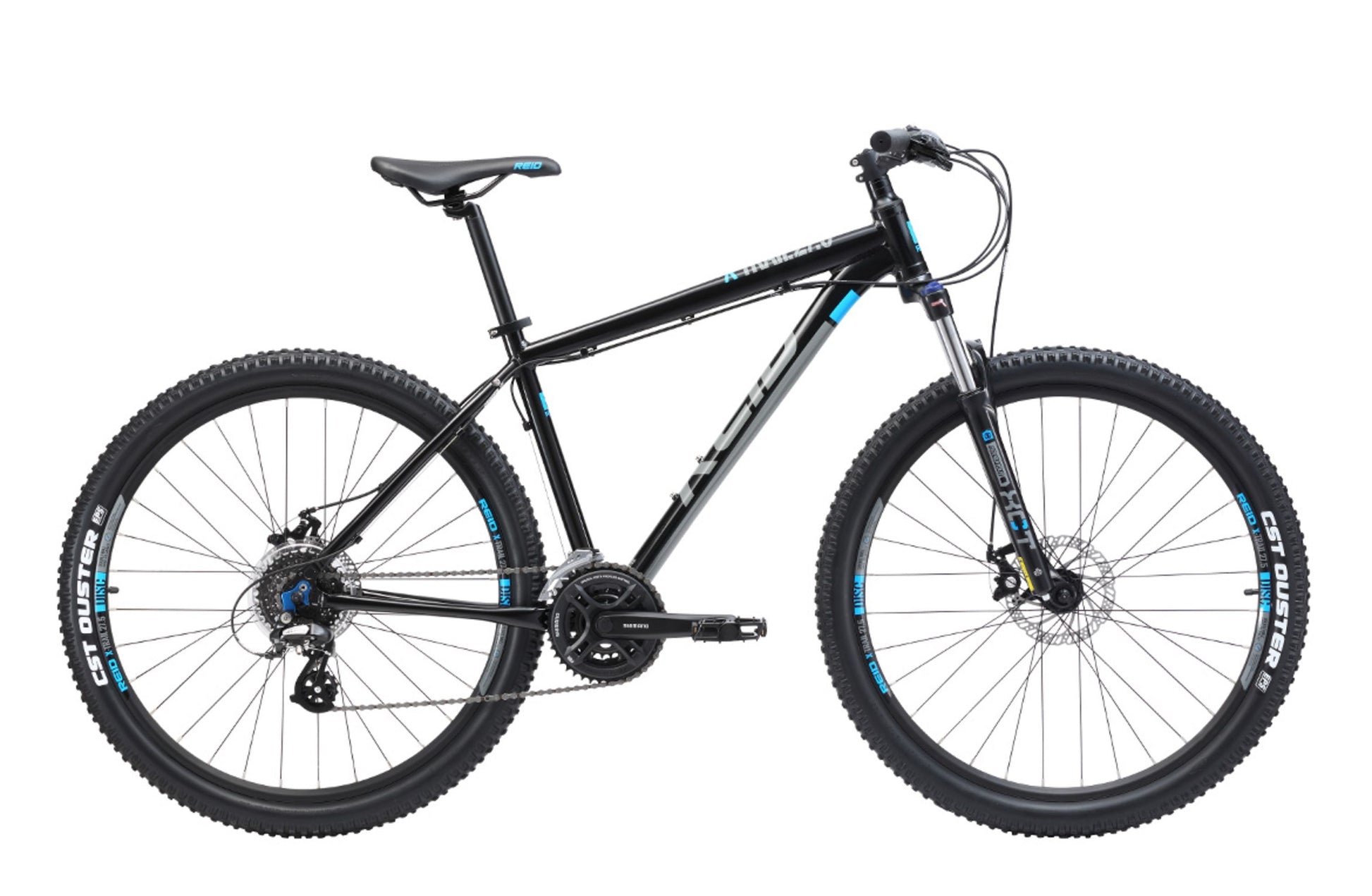

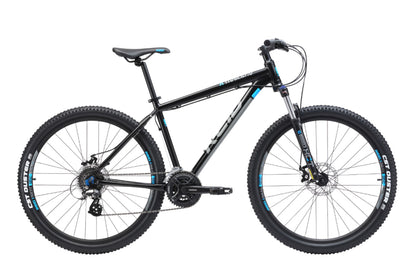

Our popular X-Trail has had an upgrade, now running on the 27.5 wheel size. Ready for cross-country XC adventures and good times on singletrack trails, this mountain bike is now even tougher, faster and more fun than ever before.
Built around the 27.5 (650B) standard, the new X-Trail XC mountain bike is up to spec and ready to roll. 27.5 is now the most common MTB wheel size and is widely regarded as the perfect diameter for nimble handling and rolling over obstacles with ease.

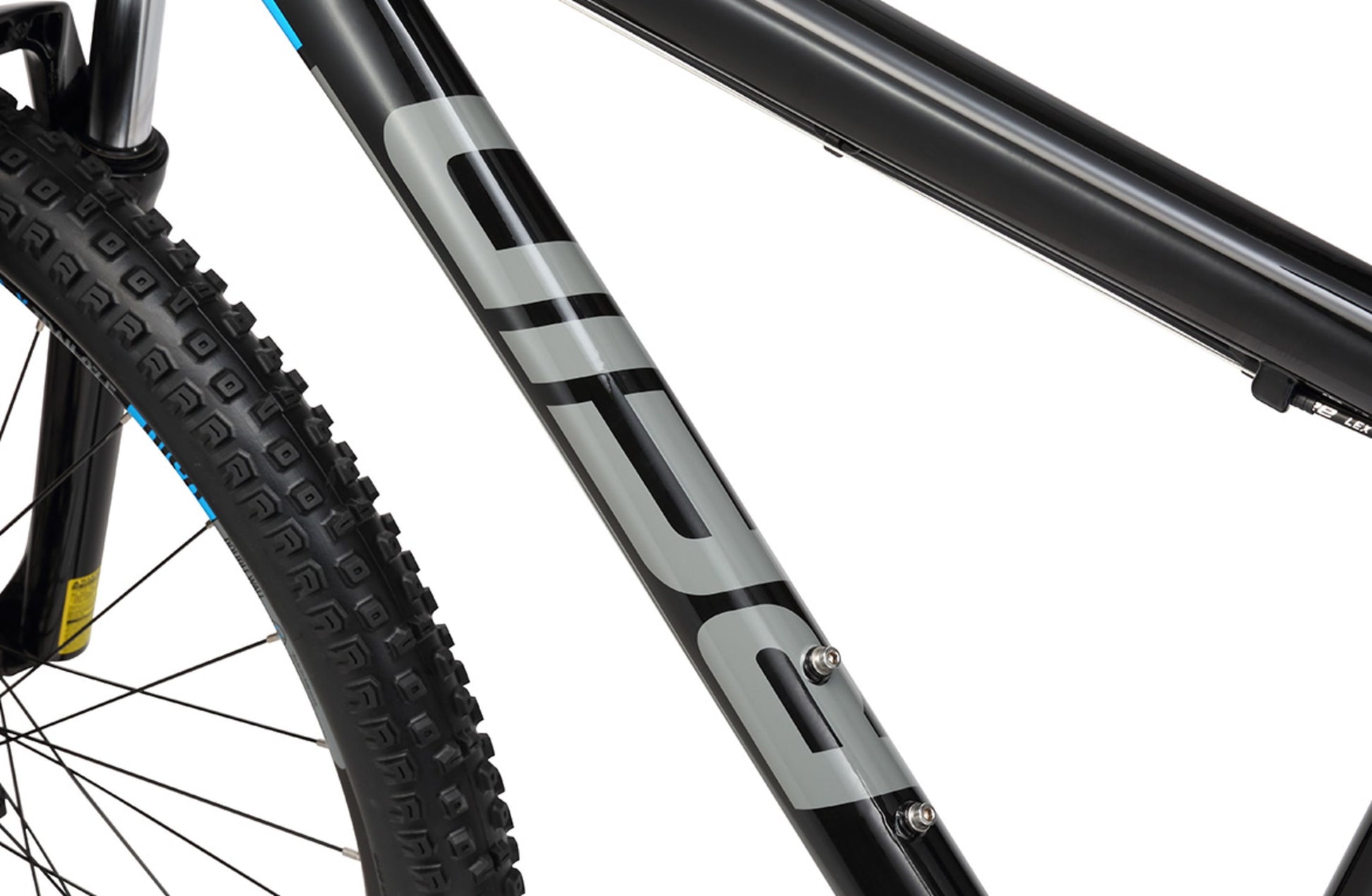

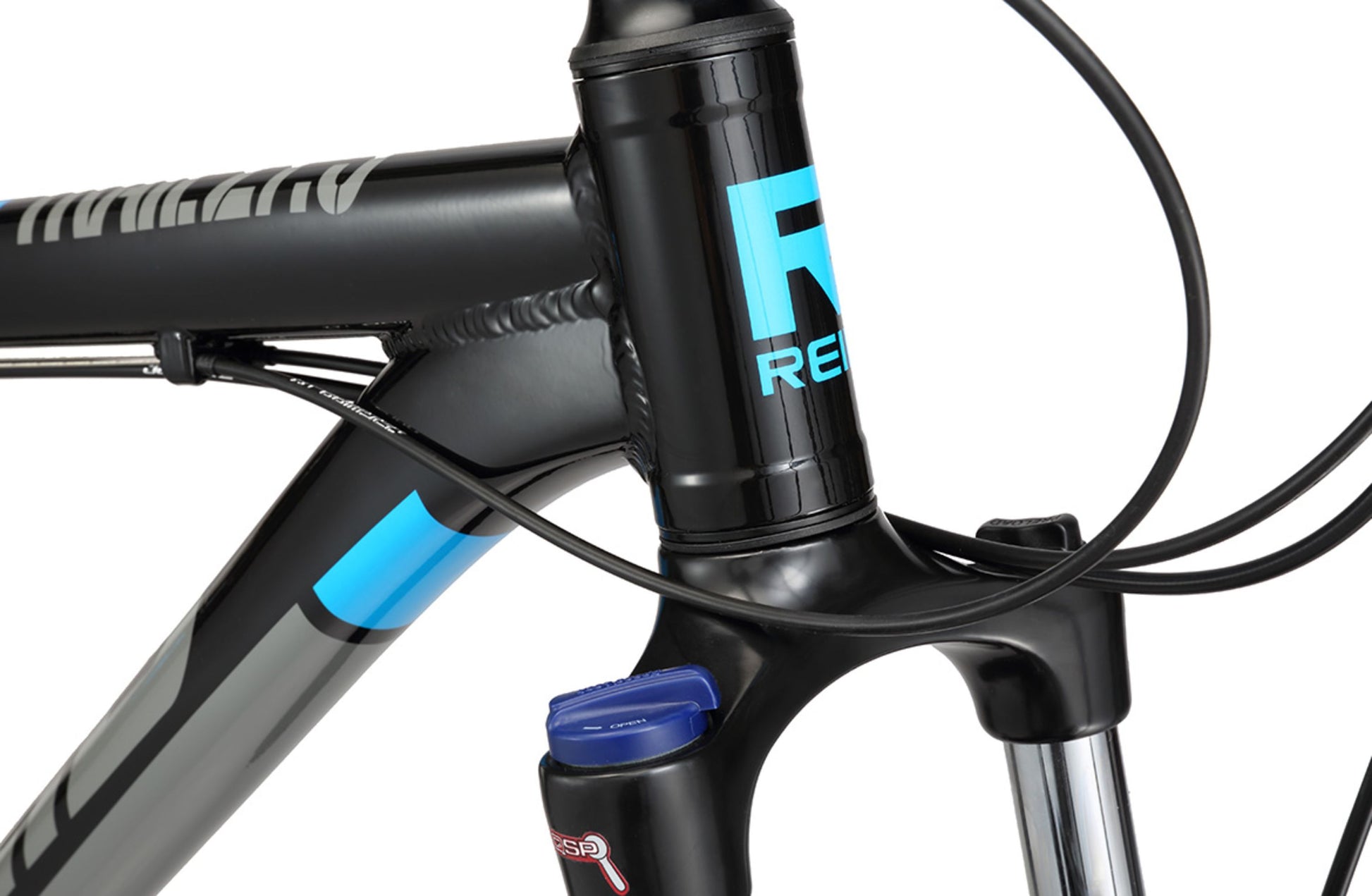

The X-Trail mountain bike is built around a 6061 Aluminium Alloy MTB Frame that is designed to reduce weight and enhance stiffness. Flick the mechanical lock-out, and the Suntour XCT 100mm travel fork becomes rigid, ideal for fast climbs and hard sprinting during MTB trail riding whilst retaining stability.
When the MTB trail points down, powerful mechanical disc brakes, 24-speed Shimano Altus gearing and 2.10" tyres you power and control. If your bike needs to be able to do double-duty as a commuter, the X-Trail 27.5 mountain bike is ready for that too. With the option to add mudguards and a rear rack, plus a commanding riding position, the X-Trail will serve you well in the urban jungle. Ask our team about our range of suitable mudguards and pannier racks.
Key Features:

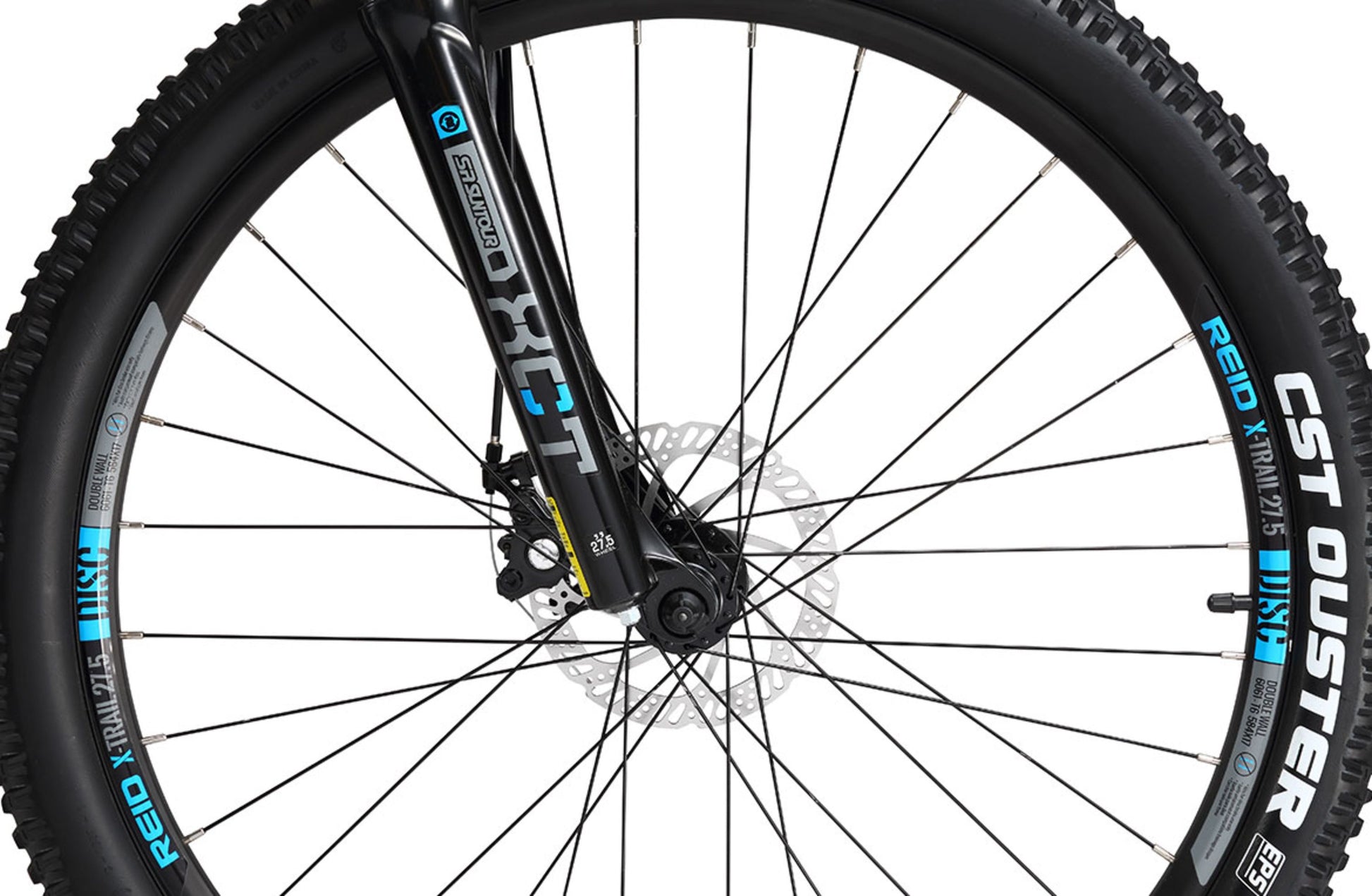

- Suntour XCT 100mm travel suspension fork with hydraulic lockout and preload adjustment
- Powerful Tektro disc brakes for all-conditions control
- Shimano Altus 24-speed gearing with all the range to get you smoothly up the hill and quickly down again during trail riding
- CST OUSTER 27.5 x 2.25" MTB Tyres
- Lightweight design - 14.5 kg
| Frame | Reid 6061 aluminium alloy mtb frame |
| Forks | Suntour xct-hlo 100mm travel with lockout and preload adjustment |
| Weight | 14.5 kg |
| Wheelset / Rim | Double wall alloy mtb disc specific |

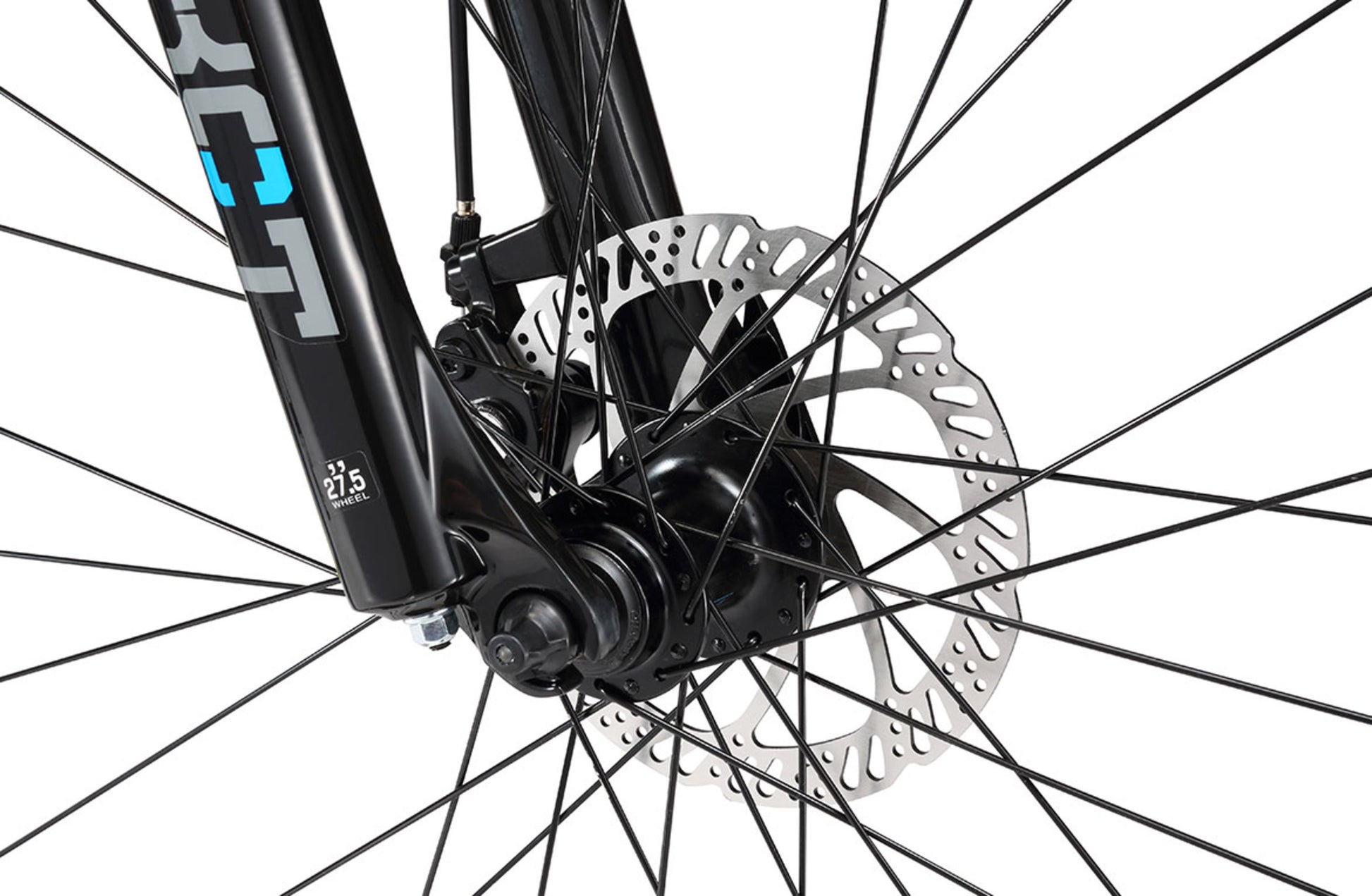

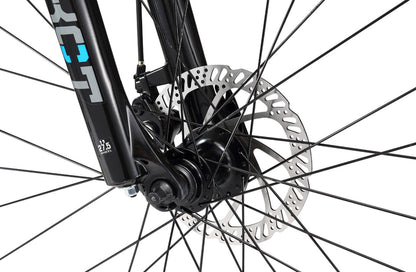

| Brakes | Tektro md280 mechanical disc brake 160mm rotors |

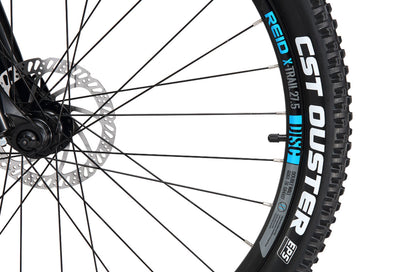

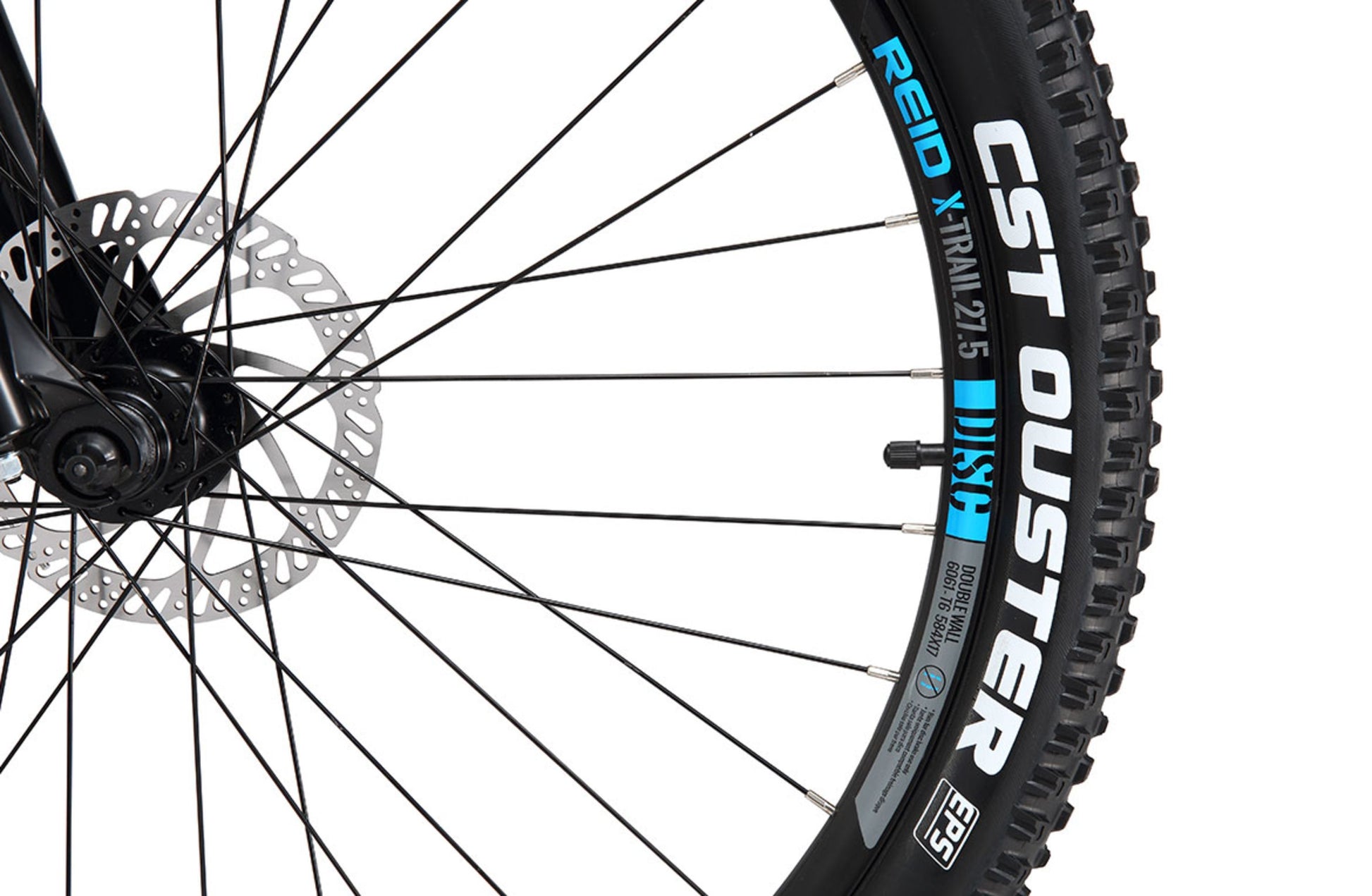

| Tyres | Cst ouster 27.5 x 2.25\ mtb |
| Hubs | Kt alloy quick release f & r |
| Freewheel / Cassette | Shimano hg200 8-speed (12-32t) |
| Front Derailleur | Shimano tourney ty700 |

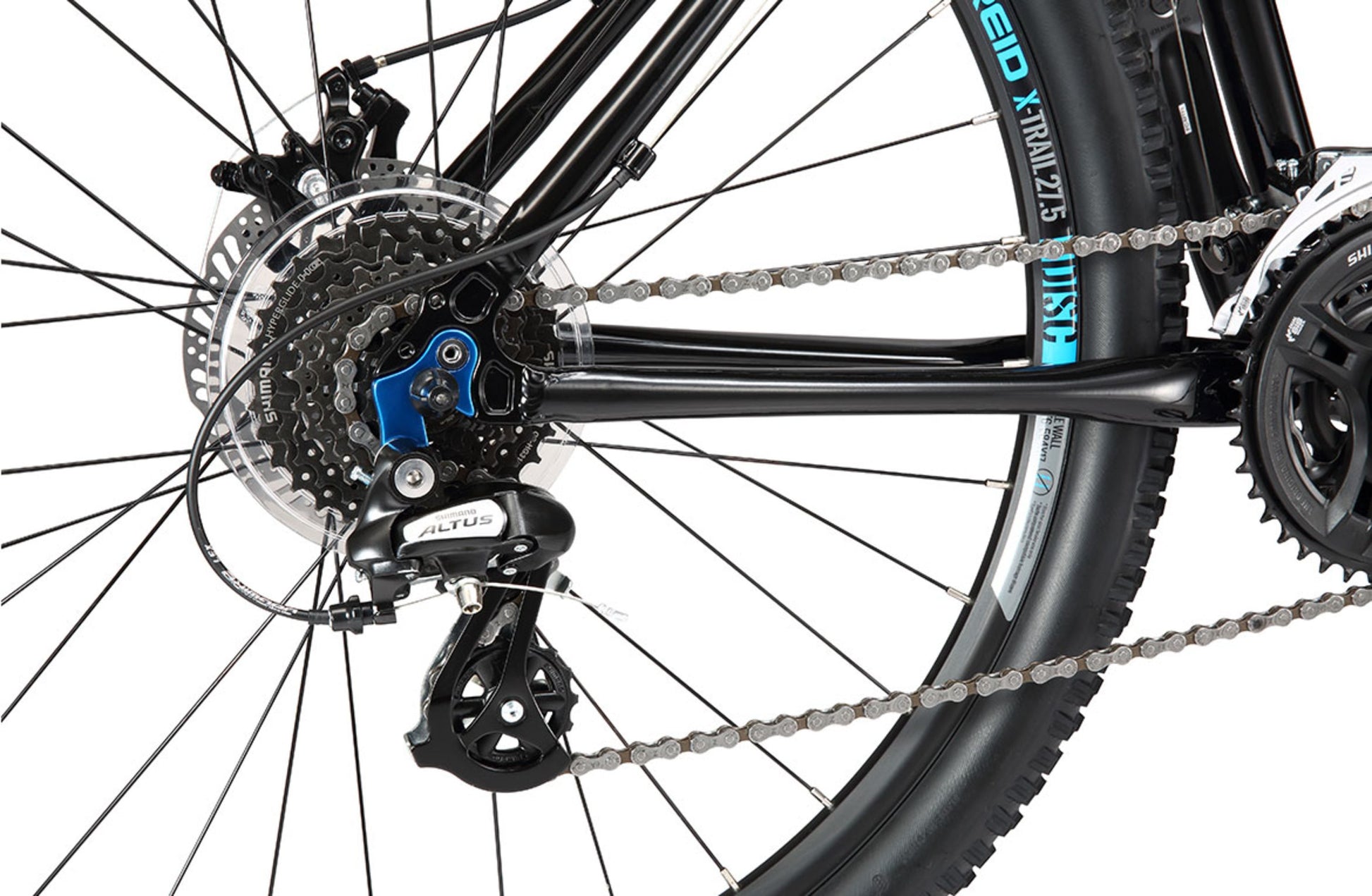

| Rear Derailleur | Shimano altus m310 |

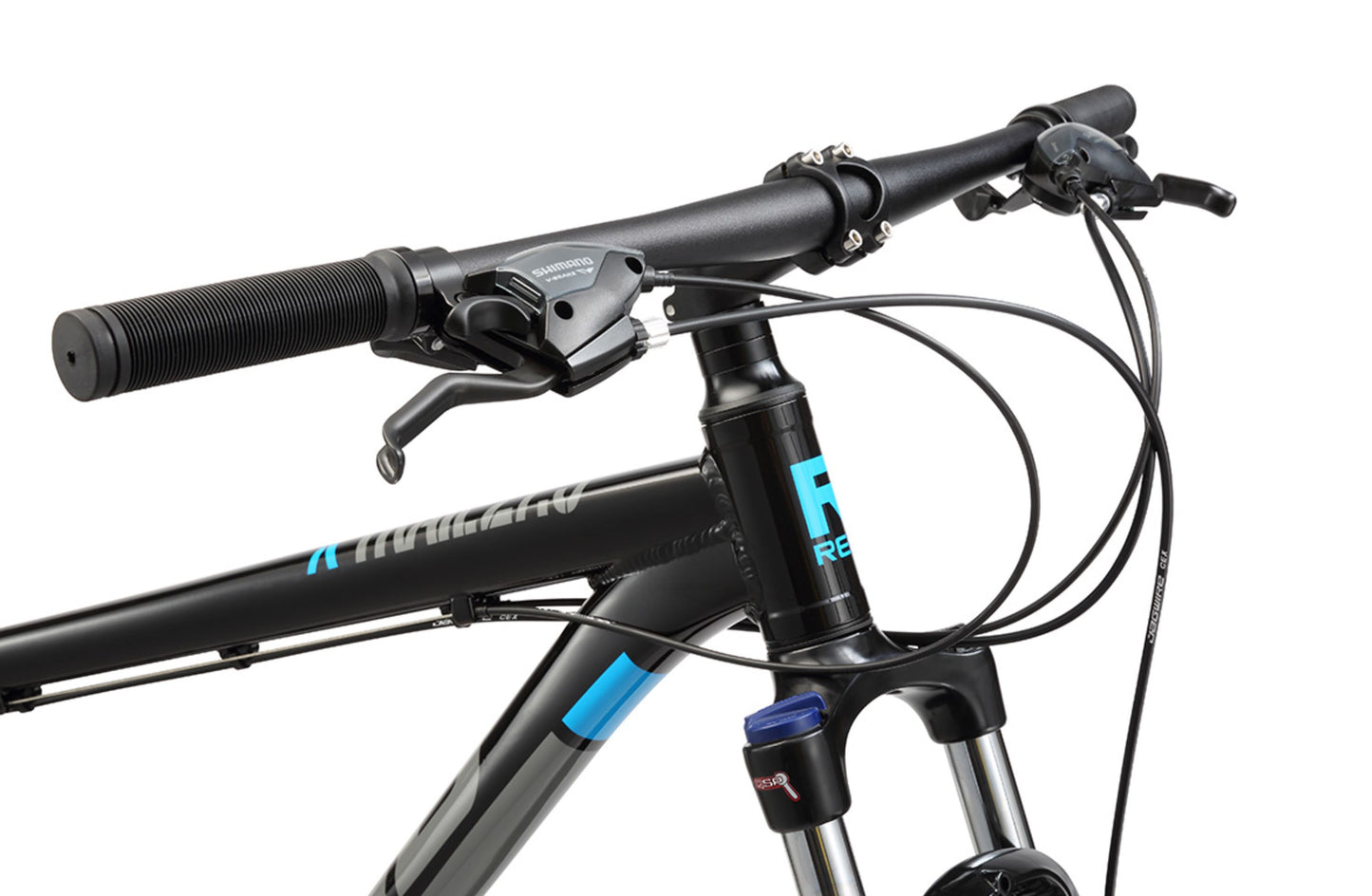

| Handlebars | Zoom alloy riser bar 70mm (s/m) 720mm (l/xl) 31.8mm barbore |
| Stem | Alloy threadless 60mm (s) 70mm (m) 80mm (l) 90mm (xl) |
| Shifters | Shimano ef500 integrated |
| Bottom Bracket | Neco b908 sealed bearing |
| Brake Lever | Shimano ef500 integrated |
| Pedals | Alloy platform 9/16\ steel axle |
| Chain | Kmc z72 |
| Grips | Mtb 130mm with alloy lock-on |
| Saddle | Reid mtb |
| Seatpost | Alloy 27.2mm micro adjust 350mm |

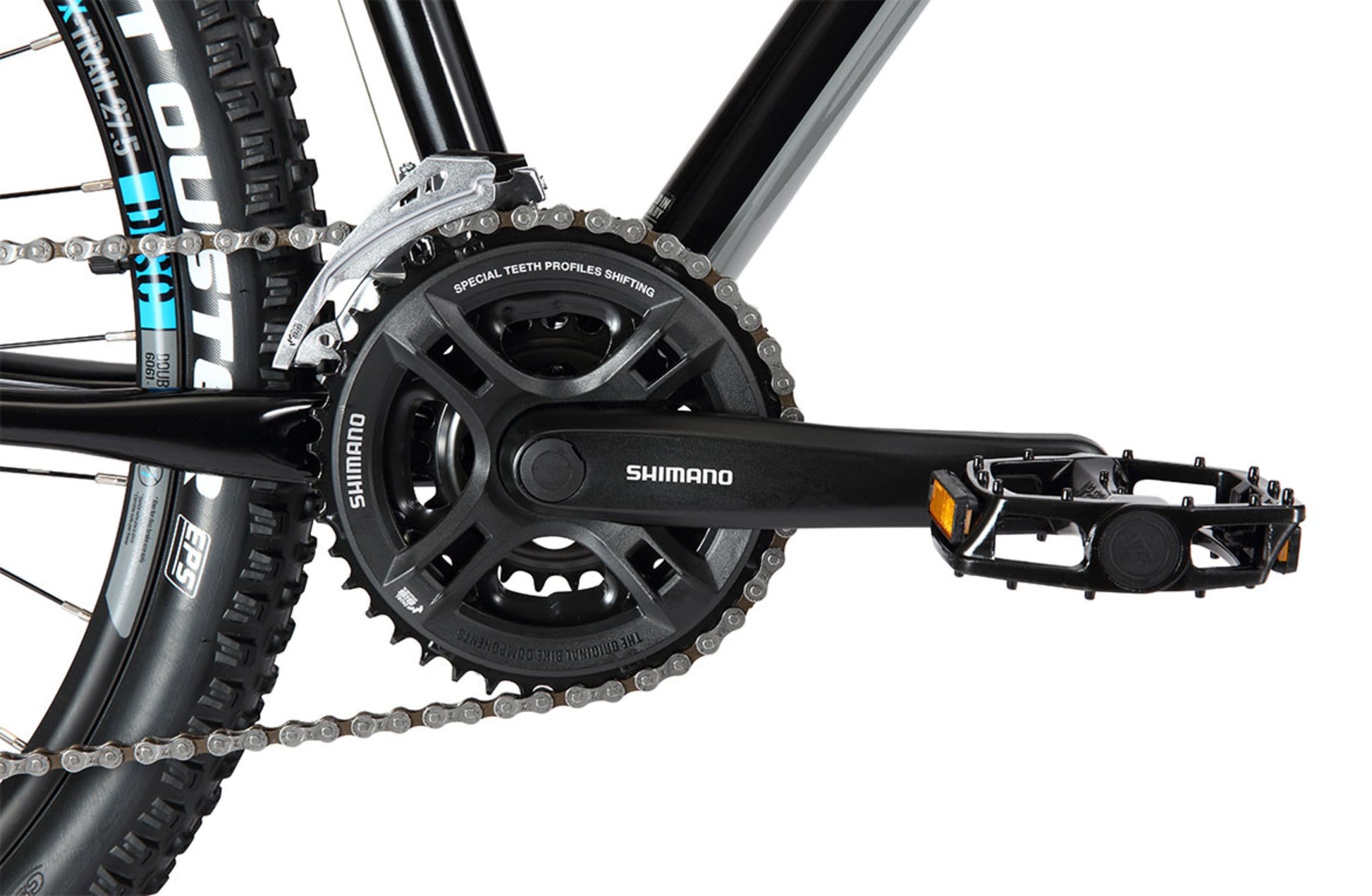

| Chainset | Shimano ty301 170mm alloy 24/34/42t |
| Kickstand | Not included |
| Bell | Yes |
| Small | Medium | Large | X Large | |
| Top tube length | 556 | 587 | 606 | 630 |
| Seat tube length | 390 | 430 | 480 | 520 |
| Head tube length | 100 | 100 | 100 | 100 |
| Seat tube angle | 73 | 73 | 73 | 73 |
| Head tube angle | 70.5 | 70.5 | 70.5 | 70.5 |
| RC length | 435 | 435 | 435 | 435 |
| BB drop | 48 | 48 | 48 | 48 |
| Fork offset | 42 | 42 | 42 | 42 |
| Front centre | 626 | 645 | 664 | 690 |
| Wheelbase | 1056 | 1076 | 1095 | 1095 |
| Full fork length | 497 | 497 | 497 | 497 |
| CM | FEET | |
| SMALL | 160cm - 167cm | 5'2" - 5'5" |
| MEDIUM | 167cm - 176cm | 5'5" - 5'8" |
| LARGE | 176cm - 185cm | 5'8" - 6'1" |
| X LARGE | 185cm - 195cm | 6'1" - 6'4" |
This series of how-to video guides will take you through each step of assembling and tuning your new Bike. Watch the series or choose the tasks you need help with:
Assembly instructions guide
If you prefer to work from step-by-step diagrams, you can use this Assembly Instruction Guide for key points on all basic areas of bike assembly.
Need more assistance?
Please contact Customer Service for friendly expert advice to help you get your bike ready to ride. We welcome your questions as they will help us to improve the instructions we provide in future.
Our X-Trail 27.5" MTB Gloss Black includes the industry-leading Reid Warranty: lifetime on frame and rigid forks, 2 years on non-consumable parts and a free first service to get you going. Test ride in-store or shop online to enjoy a 30 Day Test Ride to guarantee you get a great deal.
