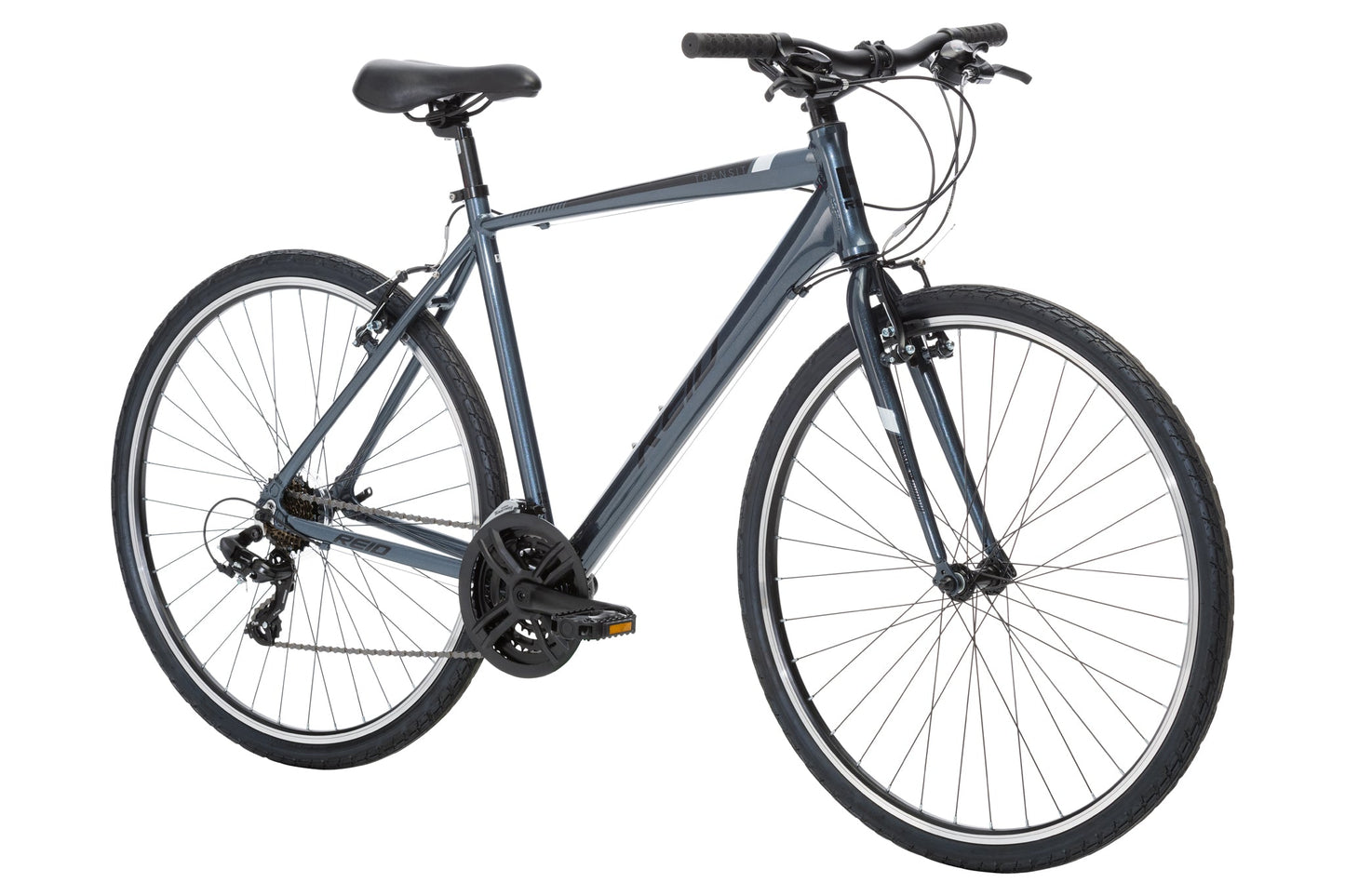

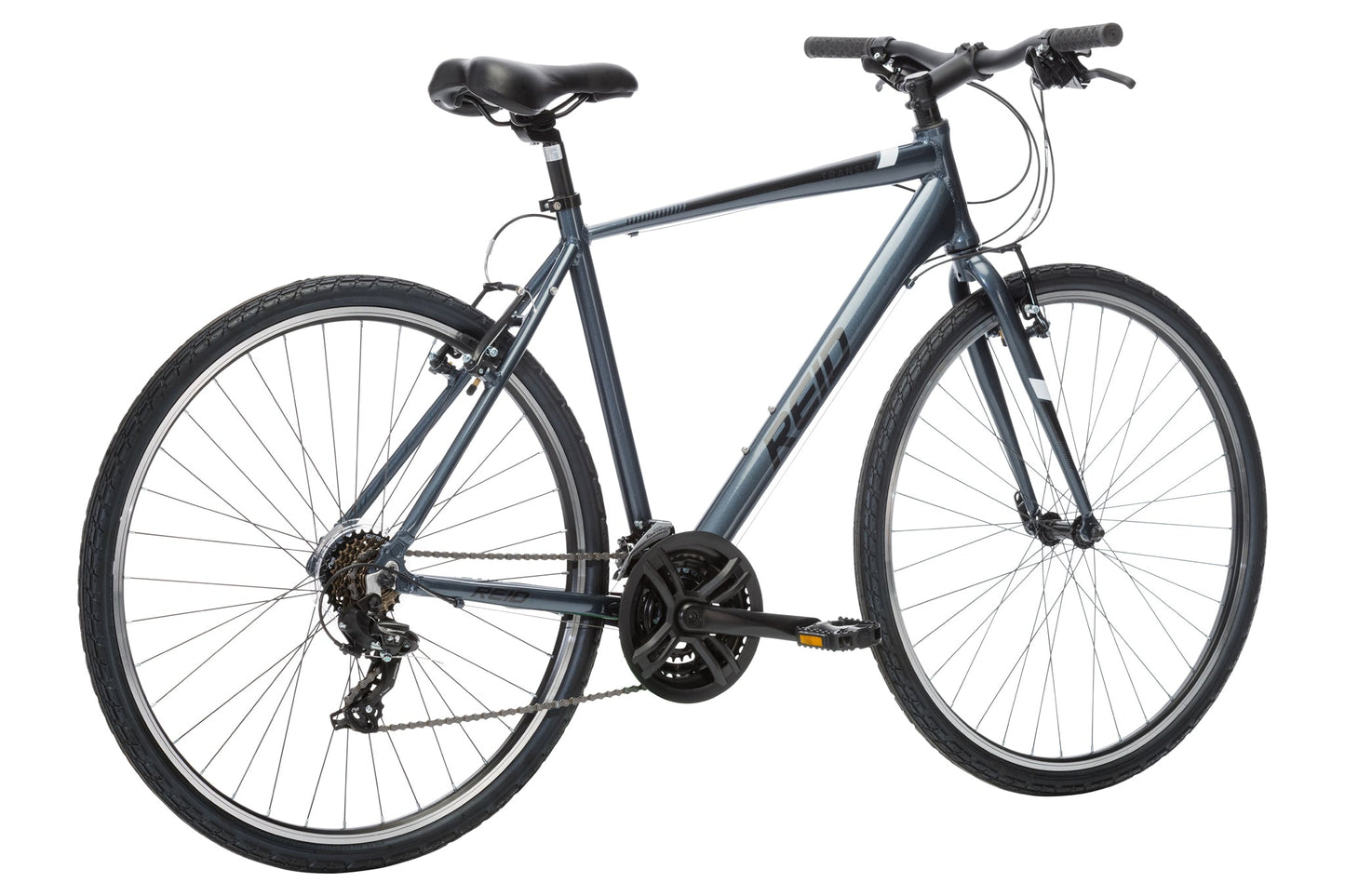

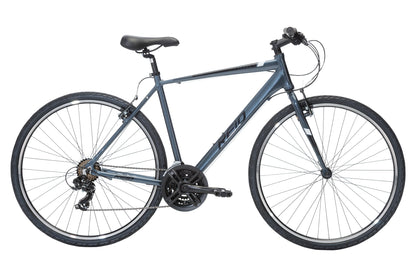

Our popular Transit hybrid bike gets a sleek style upgrade, with the latest components and new hydroformed frame and forks for a streamlined profile.
Whether it’s a weekend bike path cruise, regular commute to work or pushing yourself on fitness rides - the Transit is the perfect bike for all-round everyday use. Agile, comfortable, efficient and fun for however you like to ride.

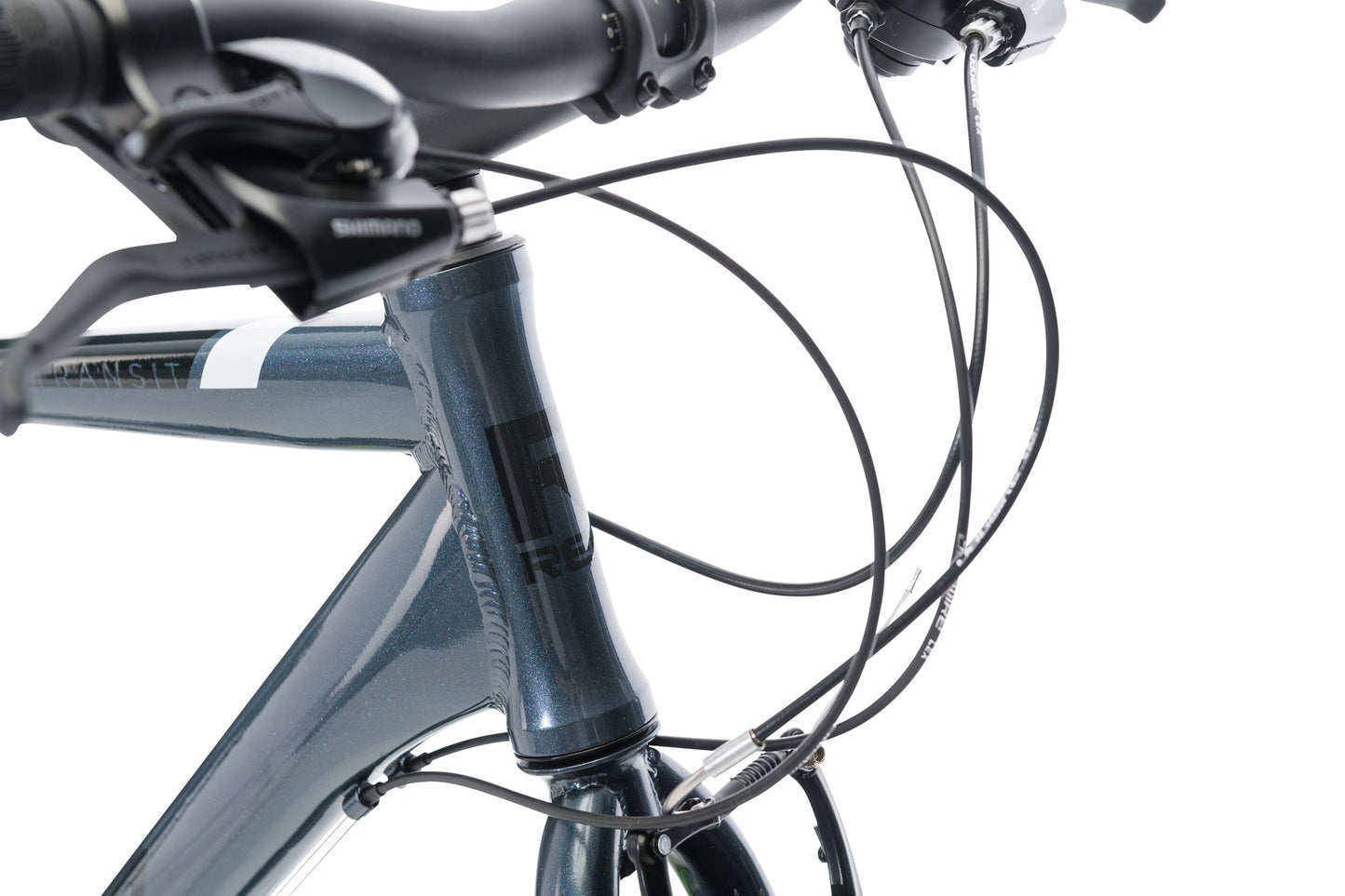

This versatile bike is built on a new lightweight hydroformed 6061 aluminium alloy frame with integrated headset; and features all the mounts you need to rig your ride with fenders, mudguards and pannier racks for luggage.
The geometry is designed for a nimble but balanced bike, with a comfortable posture to handle less-than-perfect urban roads and paths.
This is a bike for everyday use but thoughtfully designed in ways you may not even notice - the Transit will simply corner with ease, and quickly get you where you need to go in comfort.

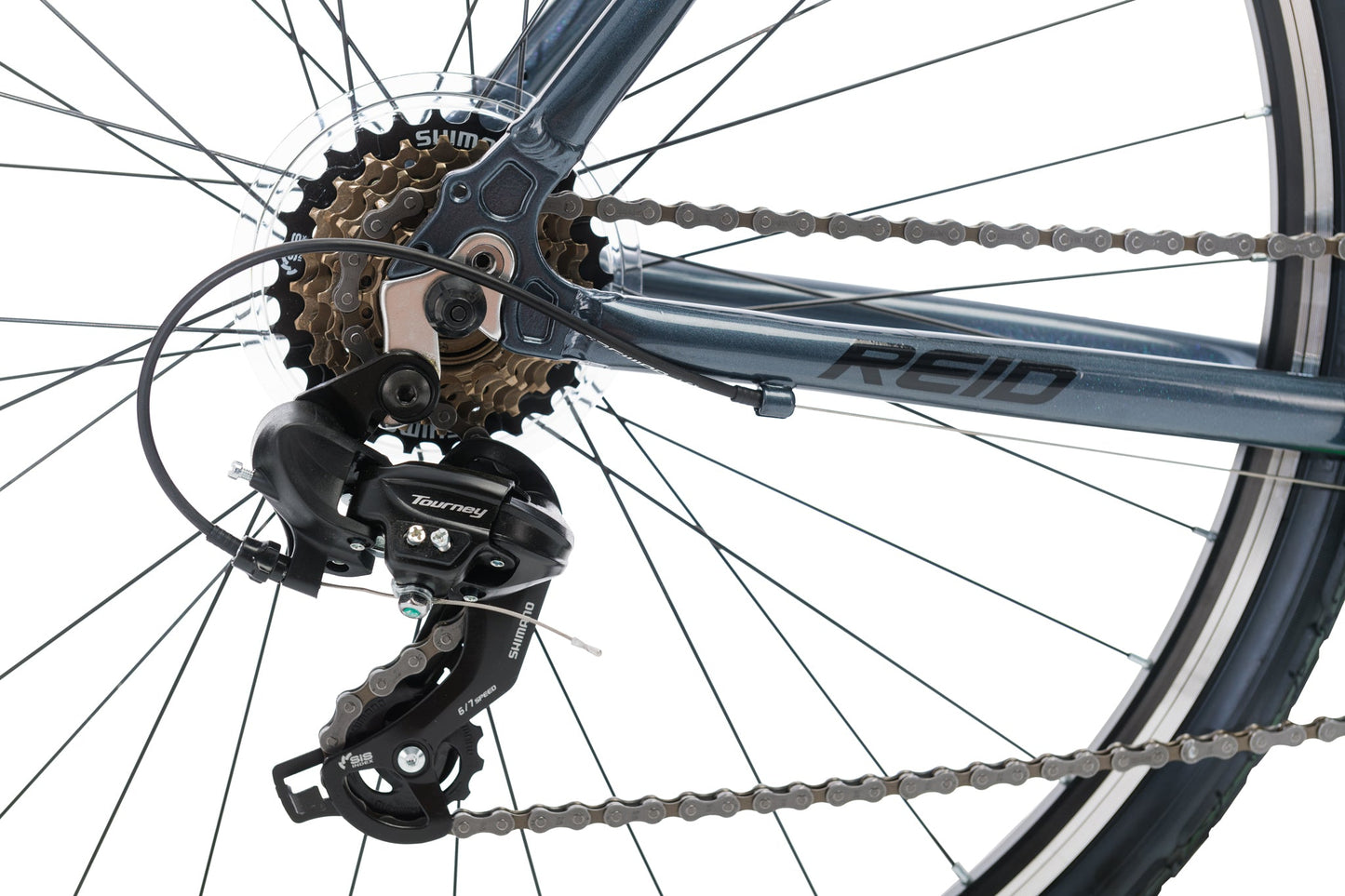

Proven Shimano Tourney 21-speed gearing provides ample range to climb hills confidently, shift reliably and also get up to serious speed when you push it.
The Transit runs on wide 40 millimetre commuter tyres, fitted to durable double-wall alloy rims with quick release hubs to withstand the rigours of urban riding.
This bike is available in a range of colourways, and in unisex or a step-through WSD frame design. WSD or Women Specific Design is an approach to building bikes that considers female proportions to produce a bike more suited to a female rider.
Key Features:
- Lightweight hydroformed 6061 aluminium alloy frame with integrated headset and braze-on mounts for pannier racks and mudguards.
- Smooth and reliable Shimano EZ-Fire Plus 21-speed gearing.
- Durable and lightweight double walled alloy rims with quick release hubs.
- Fast rolling Kenda 700x40c tyres.
| Frame | Hydroformed 6061 alloy |
| Forks | Steel |
| Wheelset / Rim | 3/8\ |

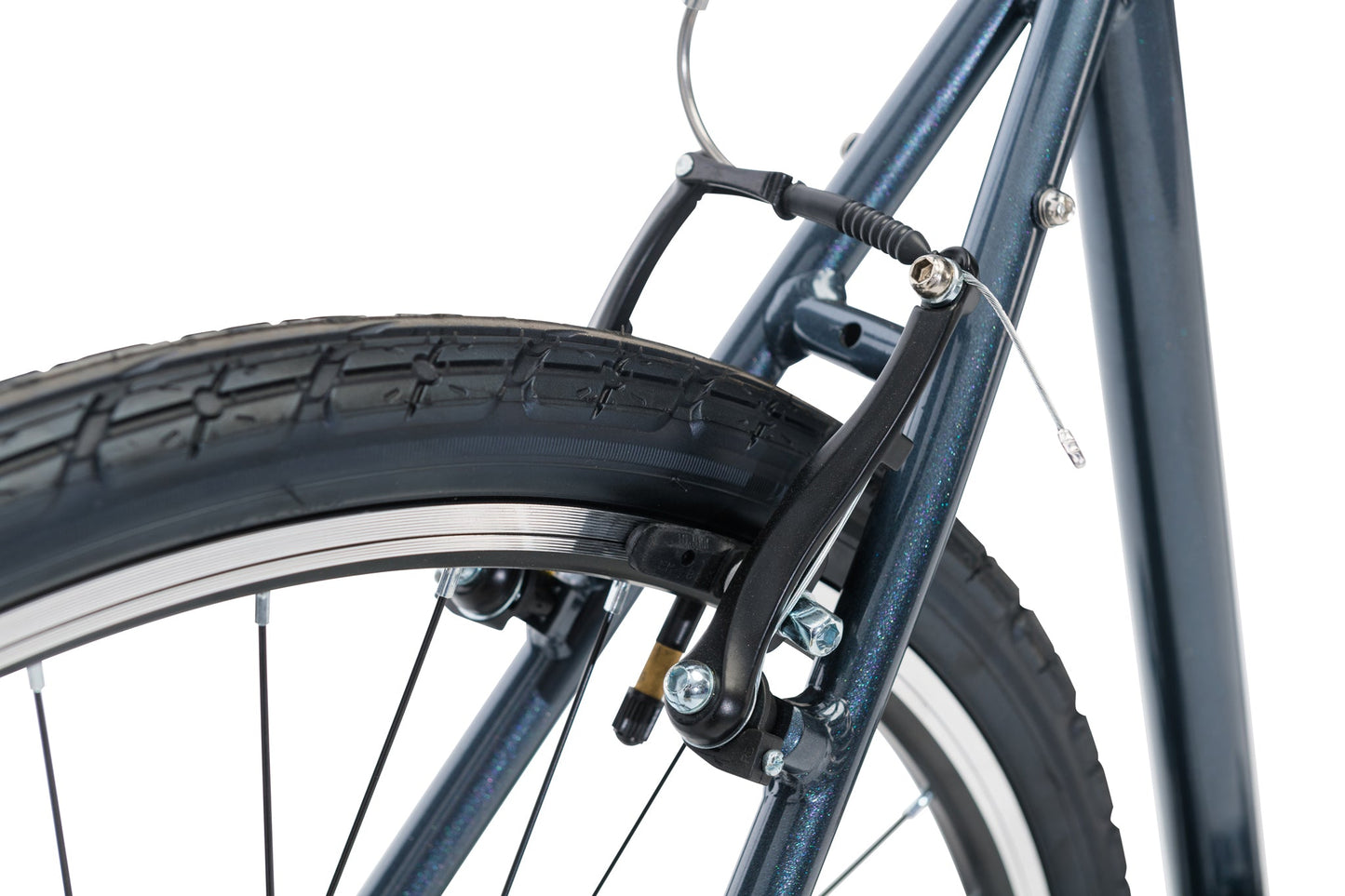

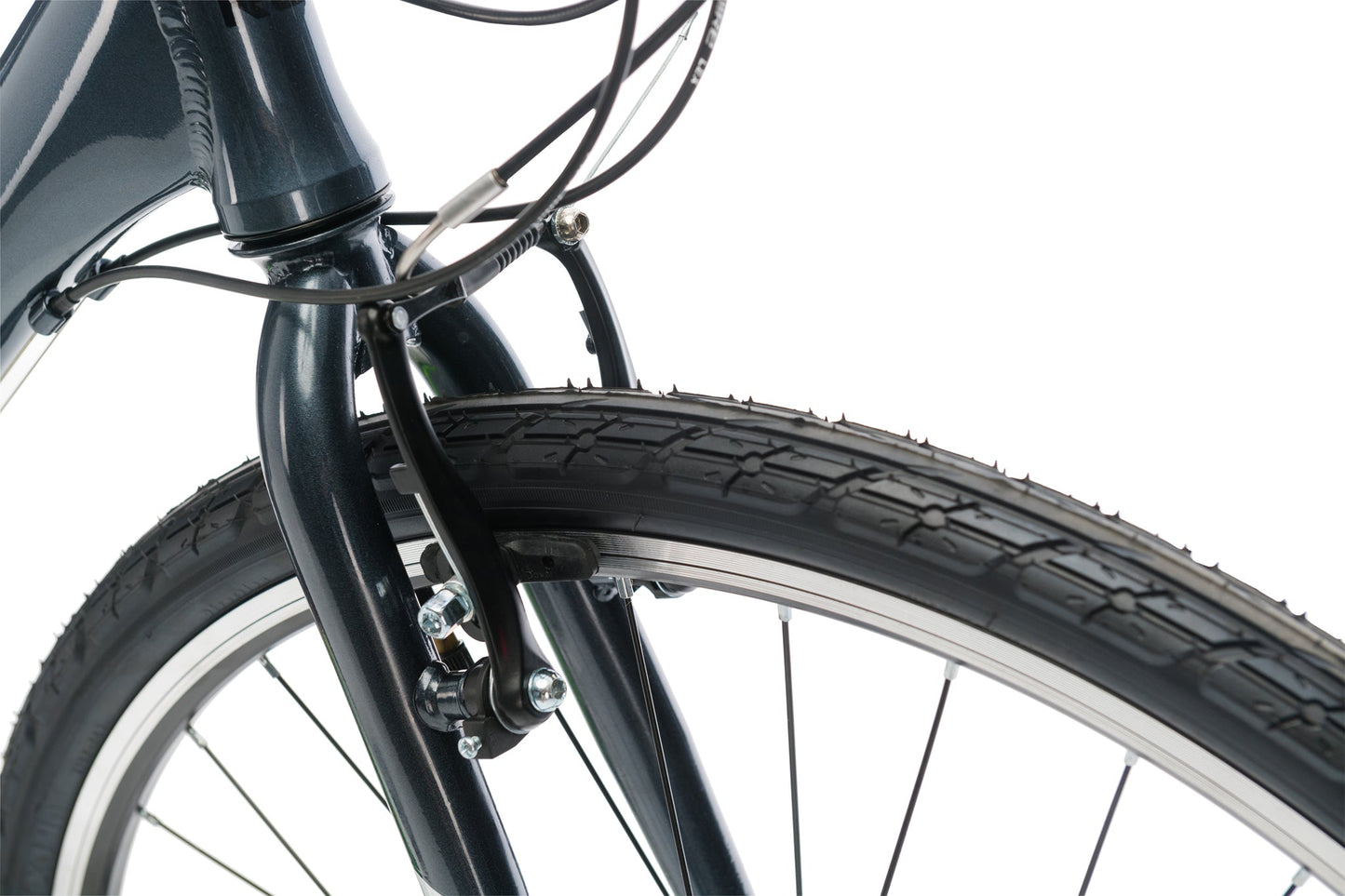

| Brakes | V-brakes |
| Tyres | Kenda 198 700 x 40c |
| Hubs | 3/8\ 135mm old |

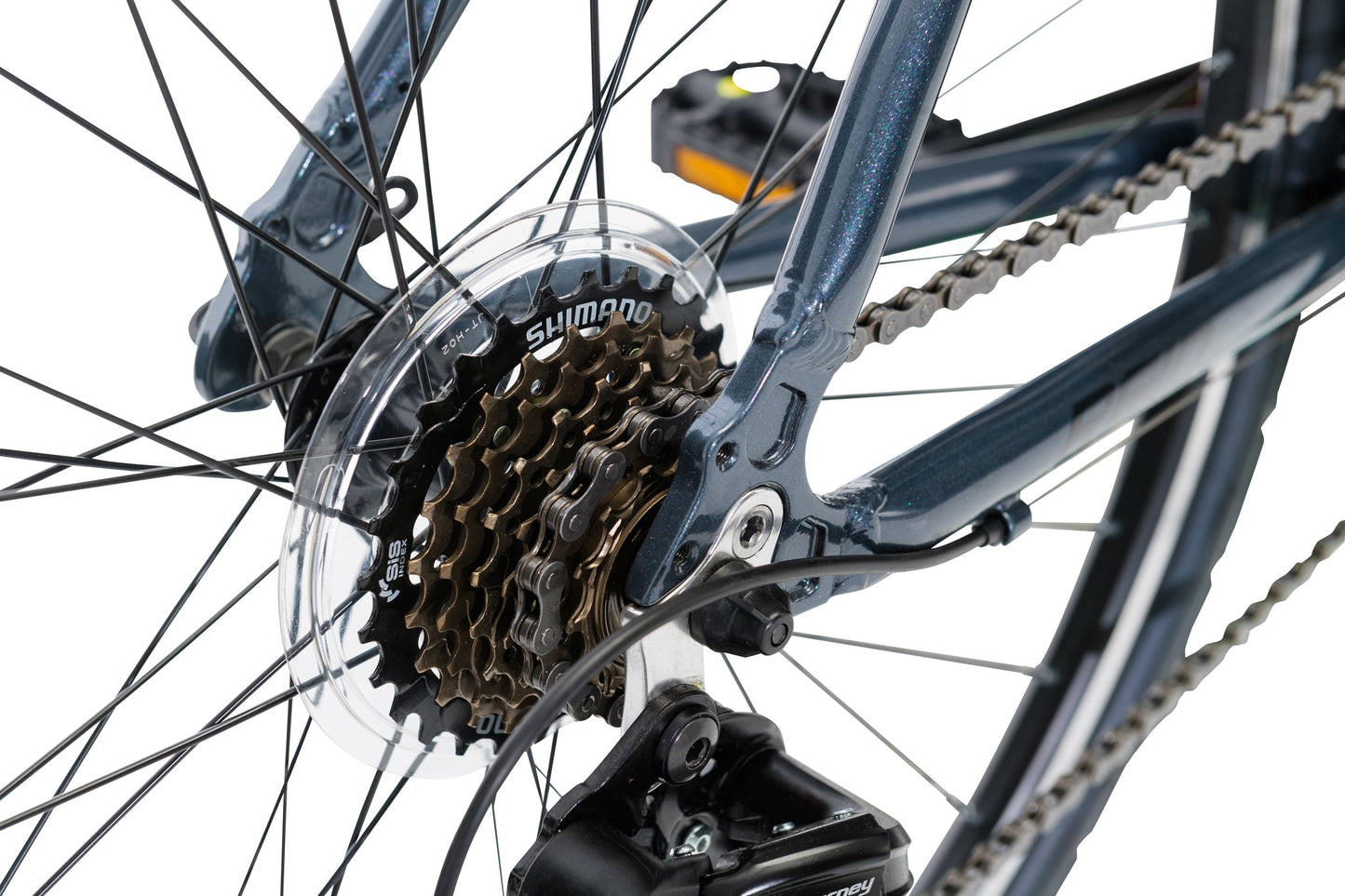

| Freewheel / Cassette | Shimano mf-tz21 |

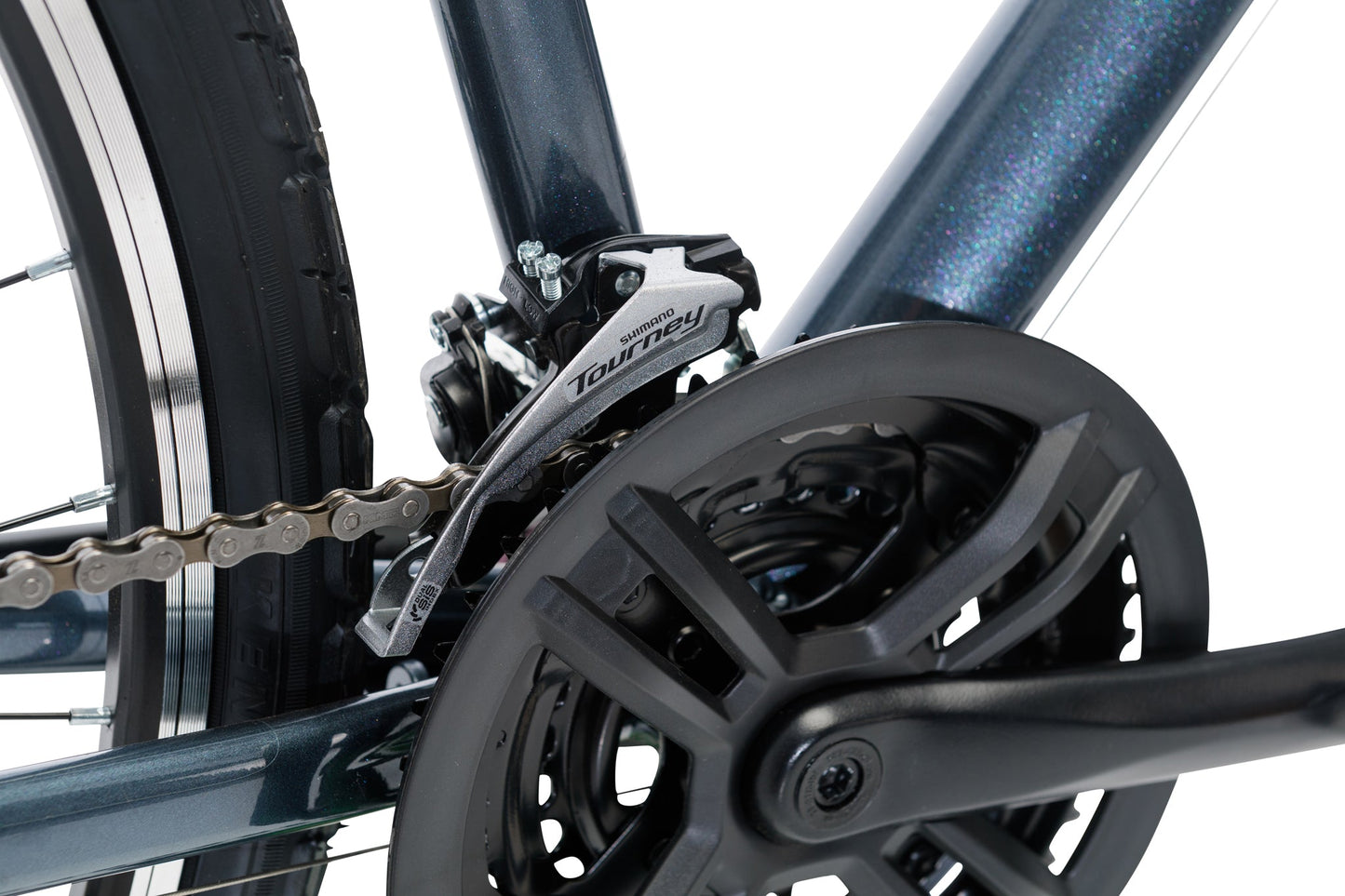

| Front Derailleur | Fd-tz510 |
| Rear Derailleur | Rd-ty300 |
| Handlebars | Alloy 680 x 22.2 rise |
| Stem | 1 1/8\ |

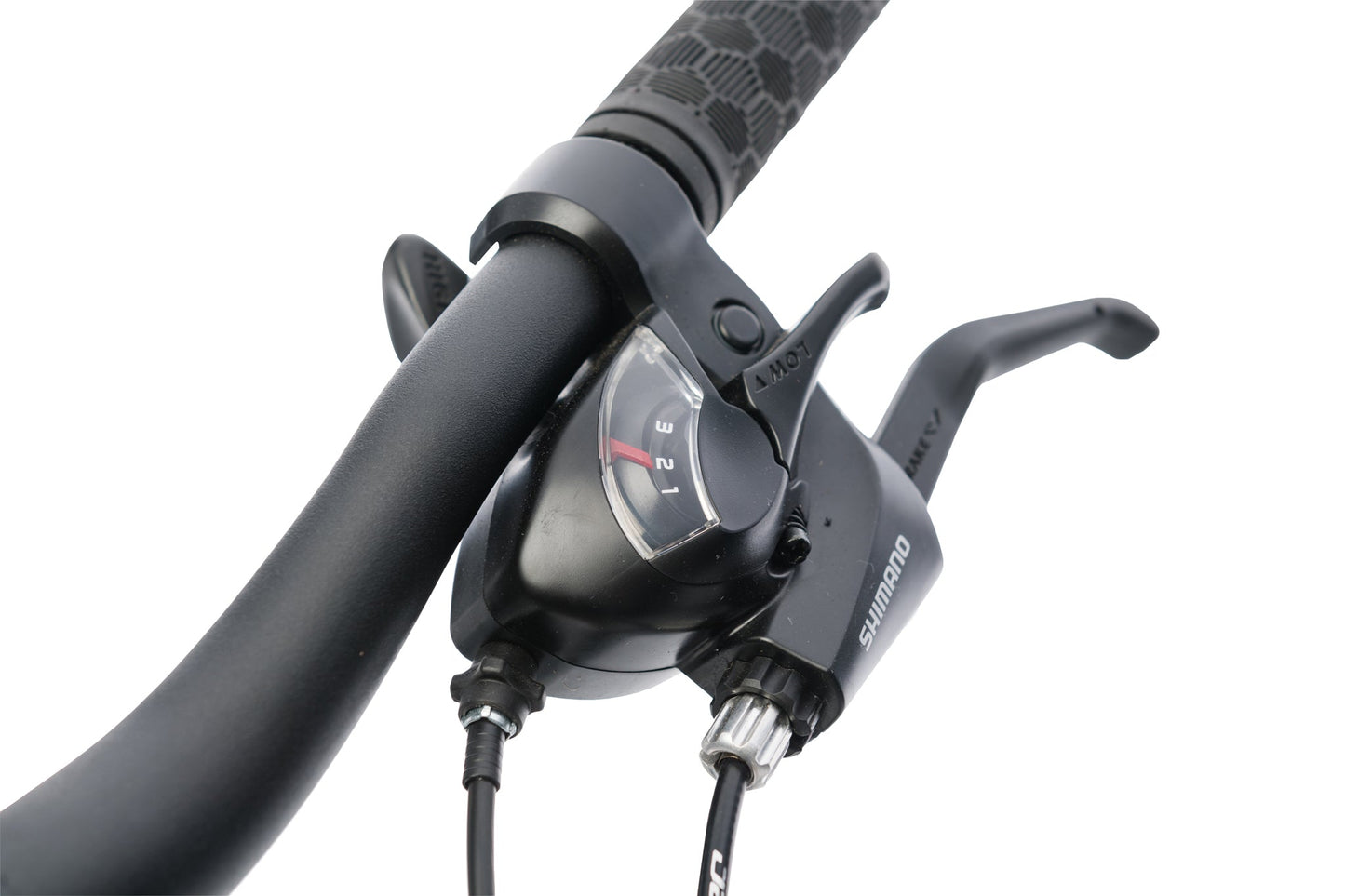

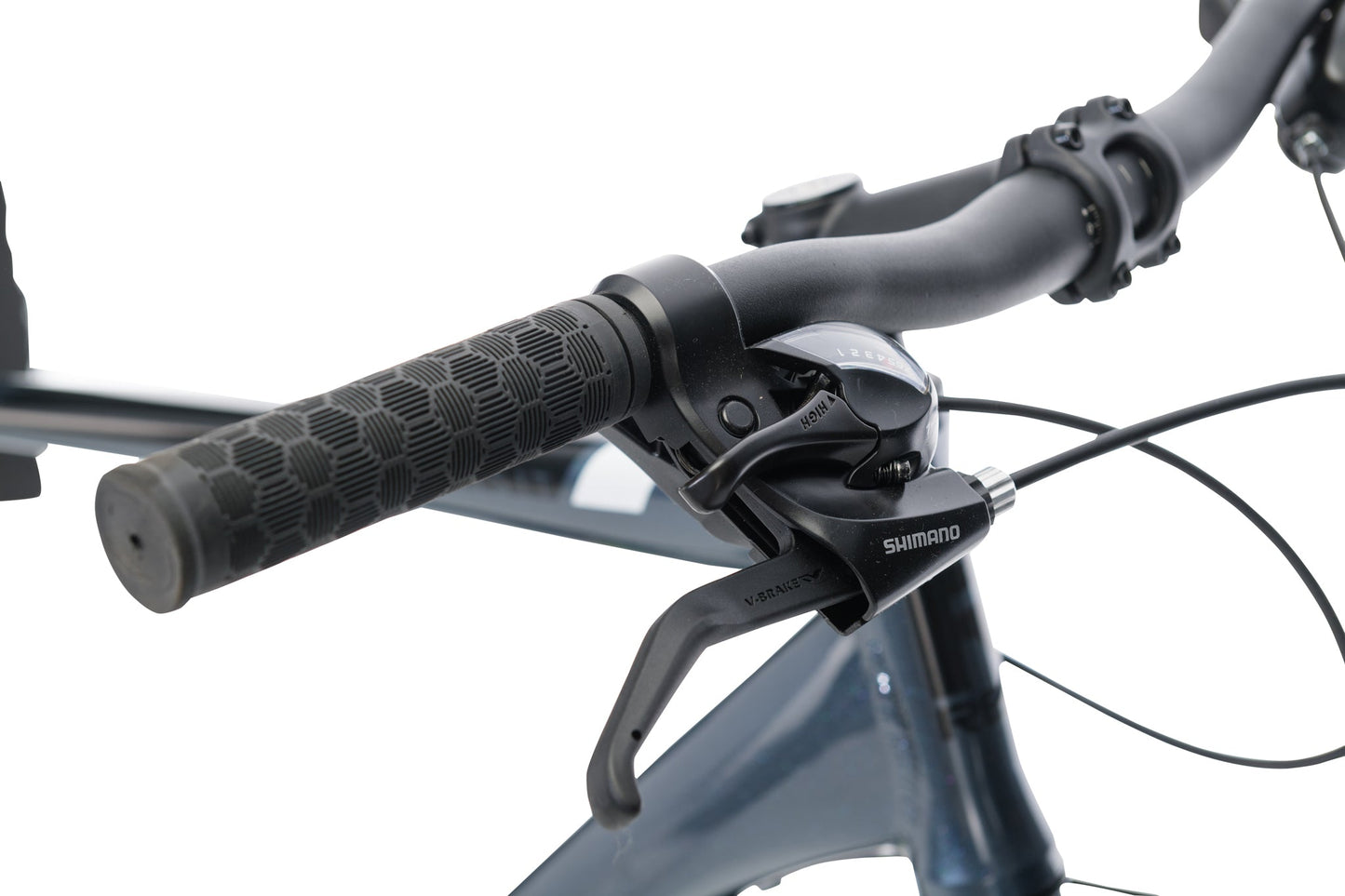

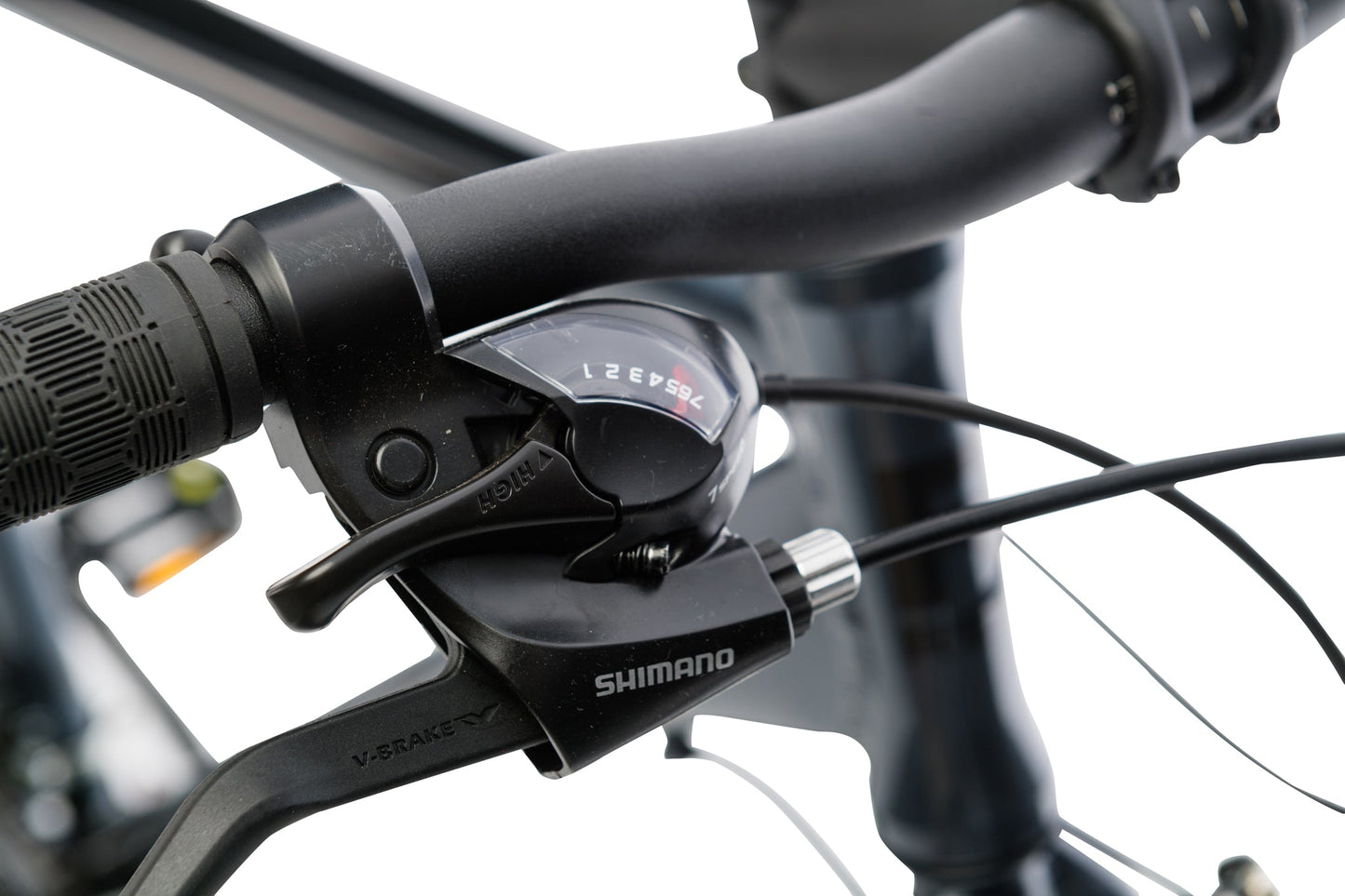

| Shifters | Shimano st-ef41 integrated with shifter |
| Bottom Bracket | Neco b908 sealed bearing |
| Brake Lever | Shimano st-ef41 integrated with shifter |
| Pedals | 9/16\ resin |
| Chain | Kmc z33 |
| Grips | Black rubber |

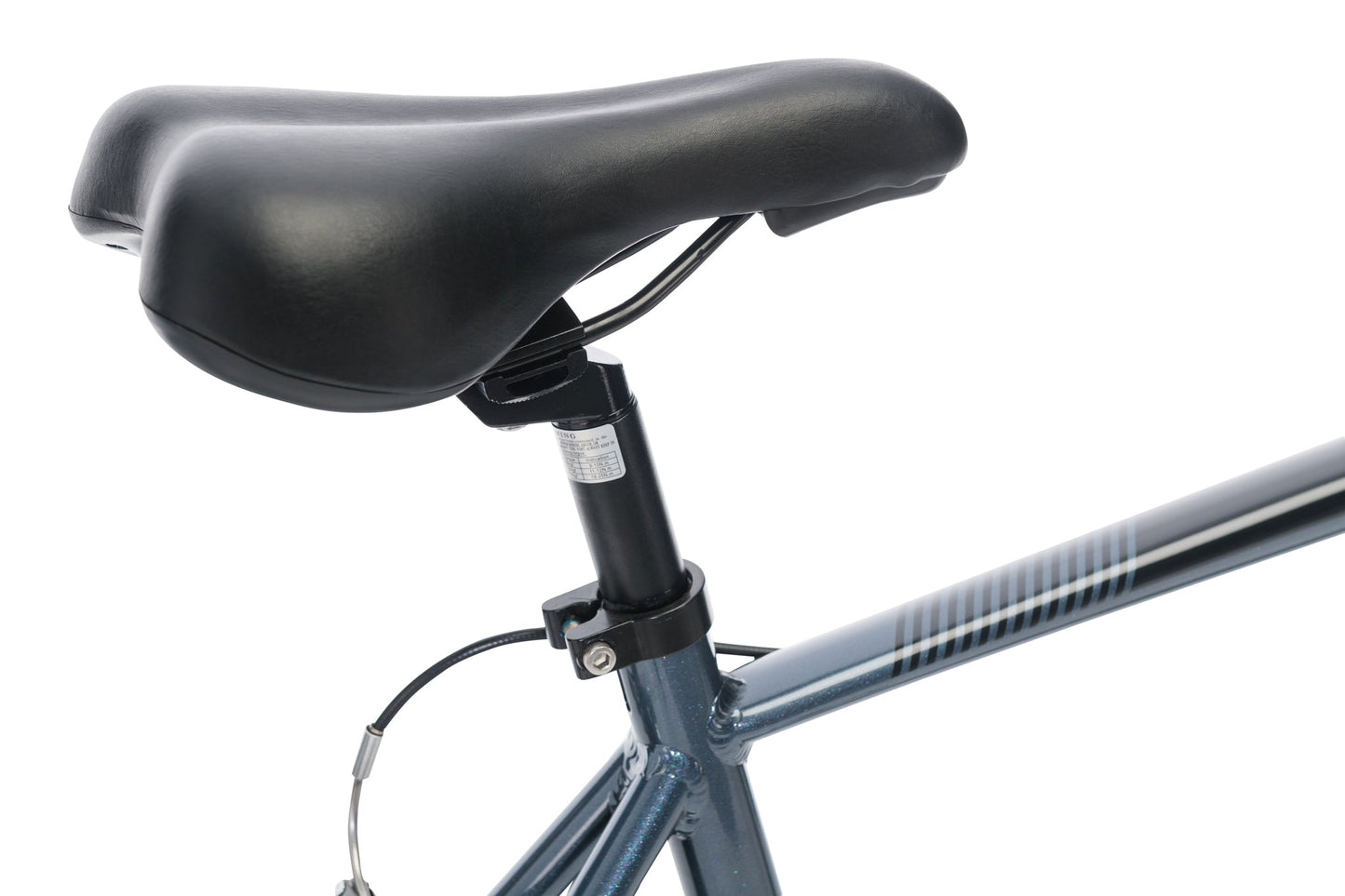

| Saddle | Black commuter saddle |
| Seatpost | Alloy 27.2mm |
| Kickstand | Not included |
| Bell | Included |
| Chain Guard | Included |
| Mudguards | Not included |
| Small | Medium | Large | X-Large | |
| Top tube length | 570 | 570 | 580 | 582 |
| Seat tube length | 450 | 480 | 510 | 540 |
| Head tube length | 140 | 150 | 160 | 170 |
| Seat tube angle | 73.5 | 73.5 | 73.5 | 73.5 |
| Head tube angle | 71.5 | 71.5 | 71.5 | 71.5 |
| RC length | 465 | 465 | 465 | 465 |
| BB drop | 74.7 | 74.7 | 74.7 | 74.7 |
| Fork offset | 48 | 48 | 48 | 48 |
| Front centre | 620 | 620 | 620 | 620 |
| Wheelbase | 1074 | 1074 | 1074 | 1074 |
| Full fork length | 415 | 415 | 415 | 415 |
| CM | FEET | |
| SMALL | 157cm - 165cm | 5'2" - 5'5" |
| MEDIUM | 165cm - 178cm | 5'5" - 5'10" |
| LARGE | 178cm - 185cm | 5'10" - 6'1" |
| X LARGE | 185cm - 191cm | 6'1" - 6'3" |
This series of how-to video guides will take you through each step of assembling and tuning your new Bike. Watch the series or choose the tasks you need help with:
Assembly instructions guide
If you prefer to work from step-by-step diagrams, you can use this Assembly Instruction Guide for key points on all basic areas of bike assembly.
Need more assistance?
Please contact Customer Service for friendly expert advice to help you get your bike ready to ride. We welcome your questions as they will help us to improve the instructions we provide in future.
Our Transit LE Commuter Bike Charcoal includes the industry-leading Reid Warranty: lifetime on frame and rigid forks, 2 years on non-consumable parts and a free tune-up to get you going. Test ride in-store or shop online to enjoy a 30 Day Test Ride to guarantee you get a great deal.
Click and Collect
Buy online and collect in-store from our Melbourne or Perth stores fully assembled by our bike mechanics and ready to ride.
Be advised that your chosen store will phone you within 24 hours of ordering to confirm a collection date based on your availability, the location of stock and your chosen collection store.
Home Delivery
Our bikes are shipped in a box 85% assembled and require basic assembly, like turning handlebars and inserting pedals. Check out our Assembly Videos that give instructions on how to do this.
Buy One, Plant One
Since January 2020 we have partnered with Eden Reforestation Projects to donate enough money to pay a local person a fair wage to grow, plant and guard to maturity 1 native tree for every bike we sell.
We've now planted more than 200,000 trees and counting.
