Blacktop eBike WSD Black

Blacktop eBike WSD Black

Rated 5.0 out of 5 stars
5 Reviews
By pairing the latest hub-drive electric bike technology with a tough hybrid commuter design, our versatile new Blacktop WSD ebike is Australia’s most affordable way to get around the city faster and with less effort.

FREE with every bike! Bicycle Network Membership, First Service and more.

Regular price $1,274.99
Regular price $1,699.99 Sale price $1,274.99

Size Guide

Click & Collect Customers: Your chosen store will phone you within 24 hours to confirm a collection date based on location of stock and your chosen store.

View full details
DescriptionSpecificationsGeometrySize GuideShipping & Warranty Assembly

Buy now or choose up to 12 months interest free using ZIP Finance at checkout. Discover your finance options here.

With advances in battery technology meaning smaller, more powerful units; and motors getting smoother and more discrete - it’s no surprise everyone is getting on an ebike!

Electric bikes use a battery powered motor to give you pedal-assistance up to 25km/hr to help you ride further, with less effort so you can get there faster and in better shape.

The Blacktop 1.0 WSD is the perfect do-it-all electric bike for riders who want to take charge of their daily commute; or replace the car for weekend adventures and visiting friends.

Powering the new Blacktop 1.0 WSD is a light and unobtrusive Bafang 250 watt electric motor positioned in the rear hub. This affordable option still keeps the centre of gravity low - for stable handling when navigating traffic or fast cornering.

The torque of the electric motor coupled with the Shimano 7-speed drivetrain will give you all the range you need for fast city riding or weekend touring.

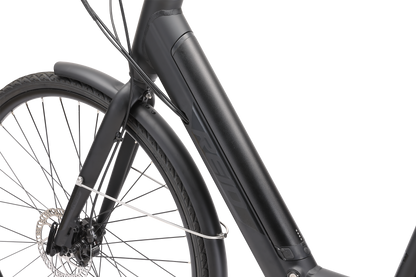

The elegant frame-integrated battery pack is a fast-charging, lightweight 36 volt 10.4 Ah (374.4 Wh) unit that will help you cruise through up to 70 kilometres of pedal-assisted riding on a single charge. Just choose your power level on the handlebar mounted display unit and go!

A fast bike needs good stopping power, and the Blacktop is fitted with Tektro mechanical disc brakes so you are assured of reliable control - even when riding in the wet.

WSD or Women Specific Design is an approach to building bikes that considers female proportions to produce a bike more suited to a female rider.

The Blacktop 1.0 WSD is also available in unisex/regular frame design. Both configurations are optimised for a fast, smooth and controlled riding experience. And as becomes clear from the first pedal stroke - these bikes are also heaps of fun!

With considered details like internal cabling to keep everything neat, fitted full-length mudguards, a rear pannier rack and wide, comfortable 40 millimetre commuter tyres - this bike is ready to ride.

Key Features:

  • Hydroformed alloy frame in a step-through WSD style with internal cabling to keep everything neat and safe.
  • Powered by Bafang 250W rear hub motor with discrete frame-integrated 36 volt, 10.4 Ah battery pack (374.4 Wh).
  • Choose your level of pedal assistance on the handlebar mounted LCD display and travel up to 70km on a single charge.
  • Trusted Shimano 7 speed gearing.
  • Tektro mechanical disc brakes for stopping power and control in all conditions.
  • Ready to ride and fitted with full-length mudguards, kickstand and rear pannier rack.



    Electric Motor Bafang swz02 250w rear hub motor
    Display Lcd multi-function display
    Battery 36v 10.4ah - internal downtube mounted
    Frame Reid custom hydroformed alloy frame with dib and internal wiring and cabling
    Forks Reid alloy commuter
    Wheelset / Rim Reid 700c double wall disc
    Brakes Tektro mechanical disc brakes
    Tyres 700 x 40c
    Hubs Alloy qr front bafang 250w rear hub motor
    Freewheel / Cassette Shimano 7-speed 14-28t freewheel
    Rear Derailleur Shimano ty300 7 speed
    Handlebars Reid alloy riser bar
    Stem Reid alloy
    Shifters Shimano rs35 7 speed shifter
    Bottom Bracket Neco sealed bearing
    Brake Lever Alloy
    Pedals Alloy platform
    Chain Kmc
    Grips Ergonomic rubber grip
    Saddle Reid city sport
    Seatpost Reid alloy 27.2mm micro adjust
    Chainset Prowheel 42t with alloy guard
    Kickstand Not included
    Bell Yes
    We continually work to improve our products so designs and specifications are subject to change. Please contact us to confirm if you have any questions.
    Small Large
    Top tube length 579 593
    Seat tube length 420 470
    Head tube length 180 180
    Seat tube angle 73 73
    Head tube angle 71 711
    RC length 440 440
    BB drop 45 45
    Fork offset 45 45
    Front centre 636 636
    Wheelbase 1076 1076
    Full fork length 423 423
    *Length measurments are in millimeters, unless otherwise stated.
    SMALL 151cm - 165cm 4'9" - 5'4"
    LARGE 165cm - 183cm 5'4" - 6'0"
    *If you are outside of the size range or unsure of the right fit for you, give us a call or come in and visit your local store to talk about your best options.

    This series of how-to video guides will take you through each step of assembling and tuning your new Bike. Watch the series or choose the tasks you need help with:

    How to: Unbox video
    How to: Install the seatpost
    How to: Inflate tyres
    How to: Install a-head handlebars
    How to: Install front mudguard vintage
    How to: Adjust disc brakes
    How to: Install pedals
    How to: Install quick release wheels
    How to: Adjust a rear derailleur
    Bafang user guide
    How to: Quick bike fit
    Assembly instructions guide

    If you prefer to work from step-by-step diagrams, you can use this Assembly Instruction Guide for key points on all basic areas of bike assembly.

    Need more assistance?

    Please contact Customer Service for friendly expert advice to help you get your bike ready to ride. We welcome your questions as they will help us to improve the instructions we provide in future.

    Our Blacktop eBike WSD Black includes the industry-leading Reid Warranty: lifetime on frame and rigid forks, 2 years on non-consumable parts, 1 year/5,000 km (whichever comes first) warranty on eBike system components and a free first service to get you going. Test ride in-store or shop online to enjoy a 30 Day Test Ride to guarantee you get a great deal.

    Click and Collect

    Buy online and collect in-store from our Melbourne, Brisbane or Perth stores fully assembled by our bike mechanics and ready to ride!

    Be advised that your chosen store will phone you within 24 hours of ordering to confirm a collection date based on your availability, the location of stock and your chosen collection store.

    Home Delivery

    Our bikes are shipped in a box 85% assembled and require basic assembly, like turning handlebars and inserting pedals. Check out our Assembly Videos that give instructions on how to do this.

    Buy One, Plant One

    Since January 2020 we have partnered with Eden Reforestation Projects to donate enough money to pay a local person a fair wage to grow, plant and guard to maturity 1 native tree for every bike we sell.

    We've now planted more than 200,000 trees and counting.

    Learn more

    Book a test ride

    Don't just read about it - feel the difference! Schedule a test ride and experience the thrill of eBikes

    Find your nearest store

    eBike Finance Options

    Ride now, pay later. Explore our flexible finance options tailored for your eBike purchase.

    Discover finance plans

    eBike Buying Guide

    Ready to choose the right eBike for you? Dive into our extensive guide all things electric!

    Read the Buying Guide

    eBikes FAQ

    Q. How far can I travel on a full charge?

    The range you can expect depends on how hard the battery is working. This will be affected by factors like the weight of the rider, how much luggage you’re carrying, tyre pressure, hills/terrain, road condition, wind and the level of assistance or power setting you use.

    We will list the distance you can expect to ride under ideal conditions in the product details section of each Electric Bike.

    As a general guide though, the range varies from around 60km per full charge for our 10.4Ah battery hub motor eBikes, up to 100-120km+ for our Shimano Steps and 14Ah Ananda mid-mount eBikes. The dual-battery system on the KADe can even cover 150km+.

    Q. How do I charge an Electric Bike and how long will it take?

    Simply plug the charger into a standard wall socket at work or when you get home. To charge the battery from 0% to 80% will take 2 hours, 100% in 4 hours. Most of the time though you’ll just need to top up rather than completely refill. Charging times are similar for the Shimano, Bafang and Ananda systems.

    Q. What are the benefits of a hub motor style eBike?

    For commuting and touring electric bikes designed for use on roads and paths, rear hub motors offer a more discrete, lighter and more affordable choice over a mid-mount motor design.

    Bafang are the largest rear hub eBike manufacturer in the world and growing rapidly in Europe and the US. The motor is light and unobtrusive at only 2.9 kg, recharge time is quick and the range is good. Considering how affordable these ebikes are, a new electric bike now makes a lot of sense for more people.

    Q. What are the benefits of a mid-mount motor style eBike?

    The mid-mount position offers more options in terms of gearing, smoother acceleration and lowers the centre of gravity of the bike giving a more stable ride over broken ground or when cornering. This benefit is really felt when off-road or riding at speed.

    Mid-drive motors are especially preferred by riders looking for more torque when riding (perfect for pinch climbs on a Mountain Bike). Unlike a hub-drive motor, the mid-drive motor directly drives the crank instead of the wheel. This has the benefit of multiplying power and allowing the bike to better take advantage of existing gears.

    Q. Can I ride an eBike in the rain?

    Yes, all of these units are sealed and made for all-conditions riding.

    Q. Can I switch off the motor and ride it like a normal bike?

    Yes. Remove the battery pack and it will feel very much like a normal bike.

    Q. What does 'Pedelec' mean?

    The most popular electric bike system in Australia is the pedelec (or pedal assist) system. You ride a pedelec by pedalling as normal, while the electric motor adds power to each pedal stroke - flattening out the hills and getting you up to speed with much less effort.

    Q. How much does it cost to charge an eBike?

    It depends on the battery, but as an example:

    The Shimano Steps system uses a 418Wh battery. At 30c/kWh x 0.418kWh = 12.5c for a full charge. Costs are similar with the Bafang and Ananda systems.

    100km for 12.5c and a fraction of the carbon output of a car. Yes, this is the future of personal transport.

    Q. How often should I service my Electric Bike?

    The same as we would recommend for any bicycle.

    We recommend your electric bike is serviced during the first 3 months of ownership as components bed in. Frequency of servicing after that depends on usage and what maintenance you choose to do yourself in terms of caring for the chain and other basic tasks. A regular rider who does not perform any maintenance may benefit from servicing every 6 months. Click here for more information on servicing.

    Q. How can I safely handle and use a Li-ion Electric Bike battery?

    Lithium Ion batteries are a powerful technology that have given us handy cordless tools and devices from mobile phones and laptops, to power drills, vacuum cleaners and now electric bikes.

    This is an increasingly common power source that is here to stay, and is safe if handled properly. Read our full safety guide here.
