Size Guide
A modern, trail-ready 29er Mountain Bike has never been so accessible. Getting started but want an MTB you can rely on as your riding progresses? Meet the new Tract 1. With the latest wide-range Shimano Acera 1x8 gearing, Suntour XCT30 DS 100mm fork and Tektro hydraulic disc brakes to deliver a feature packed 29er hardtail Mountain Bike built to get you started on Australian trails.
NOTE: The Tract 1 now features the latest wide-range Shimano Acera 1x8 gearing (this is an upgrade and the main image above shows the previous crankset).
Designed for riders who are looking for a quality entry to the world of Mountain Biking on proper trails, singletrack and XC; the Tract range brings the most up-to-date standards in MTB geometry and specification at this value price point.

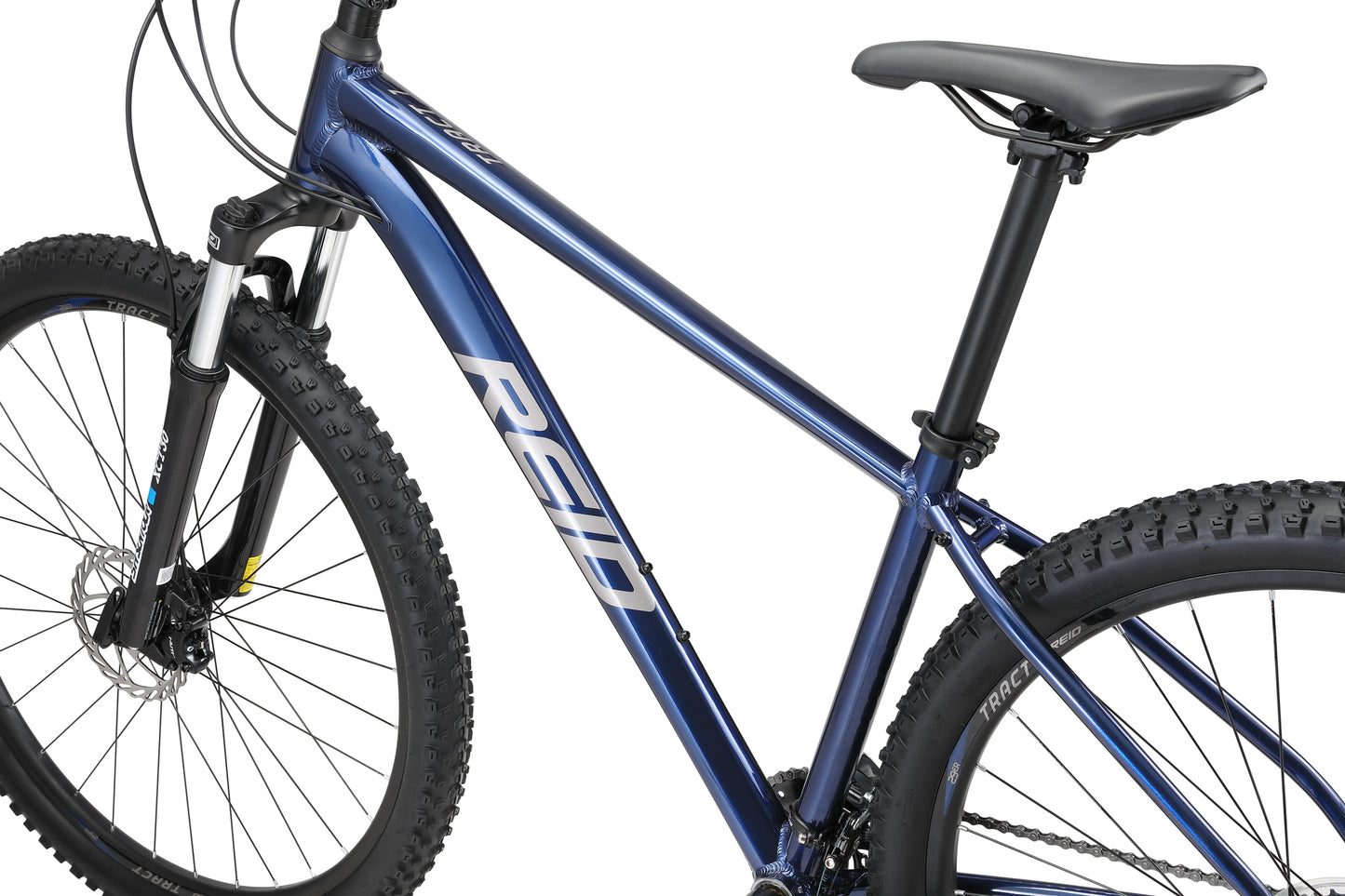

Light, fast and designed for a confidence inspiring ride, the Tract hydroformed double-butted alloy frame features slacker angles and a low-slung top tube for manoeuvrability and control in corners and descents. Geometry and spec choices on this bike were made specifically for off-road and trail performance.
Well balanced and dialled for all-round riding - this bike climbs, descends and covers cross-country distance with ease. With internal gear cabling and rigged with mounts for a drink bottle, rear rack and kickstand; you can set this bike up to perform many duties.
The reliable SR Suntour XCT30 DS 100mm travel suspension fork gives smooth control over broken ground and enough bounce to soak up the hits.
29 inch wheels are the modern standard for Mountain Biking and getting on a 29er has never been as accessible as the Tract. 29 x 2.25” Wanda MTB tyres coupled with durable double-wall alloy rims will hold the ground for a fast and responsive ride.
Braking power and control is delivered by trusted Tektro Hydraulic Disc with 160mm rotors. Hydraulics offer more power with less lever force required than other systems, which gives better modulation and control in all riding conditions.
The Reid Tract range is the best value way to get into Mountain Biking on a progressive, trail-ready 29er MTB that is built to take the demands of the sport. The Tract is a real-deal MTB built from the ground up for singletrack, jumps, rocks, technical climbs and fast descents.
Key Features:
- Tough and lightweight double-butted 6061 hydroformed aluminium alloy frame with internal gear cable routing.
- Modern trail/cross-country (XC) progressive geometry with slacker angles and low standover for confidence inspiring off-road performance.
- Designed for the dirt but versatile for all-round use with mounts for rear rack, drink bottle and kickstand.
- Lightweight SR Suntour XCT30 DS 100mm travel suspension fork for comfort and control on singletrack and trails.
- The latest wide-range Shimano Acera 1x8 gearing for trail-ready performance.
- Tektro Hydraulic Disc brakes with 160mm rotors for stopping power and modulation control in the dirt and in the wet.
| Frame | 6061 aluminium alloy with internal cables |
| Forks | Sr suntour xct30 ds 100mm travel |
| Wheelset / Rim | Reid 29\ double wall 32h disc |
| Brakes | Tektro hd-m275 hydraulic disc |
| Tyres | Wanda 29x2.25\ |
| Hubs | 32h quick release |
| Freewheel / Cassette | Shimano cs-hg400 8 speed 12-32t |
| Rear Derailleur | Shimano rd-m3020 acera 8 speed |
| Handlebars | Reid 31.8mm alloy riser 740mm x 30mm rise |
| Stem | Reid 31.8mm alloy a head 70mm |
| Shifters | Shimano ml-315 |
| Bottom Bracket | Sealed bearing |
| Brake Lever | Tektro hd-m275 |
| Pedals | Reid alloy platform 9/16\ |
| Chain | Kmc z8 |
| Grips | Reid single lock on |
| Saddle | Reid mtb sport |
| Seatpost | Reid alloy 30.9mm |
| Chainset | Prowheel alloy cc10y-nw |
| Bell | Yes |
| Small | Medium | Large | Extra Large | |
| Top tube length | 560 | 608 | 628 | 651 |
| Seat tube length | 381 | 432 | 483 | 533 |
| Head tube length | 120 | 120 | 120 | 130 |
| Seat tube angle | 74 | 74 | 74 | 74 |
| Head tube angle | 68 | 68 | 68 | 68 |
| RC length | 440 | 440 | 440 | 440 |
| BB drop | 65 | 65 | 65 | 65 |
| Fork offset | 46 | 46 | 46 | 46 |
| Front centre | 661 | 708 | 729 | 753 |
| Wheelbase | 1093 | 1142 | 1168 | 1191 |
| Full fork length | 515 | 515 | 515 | 515 |
| CM | FEET | |
| SMALL | 160cm - 167cm | 5'2" - 5'5" |
| MEDIUM | 167cm - 178cm | 5'5" - 5'10" |
| LARGE | 178cm - 185cm | 5'10" - 6'1" |
| EXTRA LARGE | 185cm - 193cm | 6'1" - 6'4" |
This series of how-to video guides will take you through each step of assembling and tuning your new Bike. Watch the series or choose the tasks you need help with:
Assembly instructions guide
If you prefer to work from step-by-step diagrams, you can use this Assembly Instruction Guide for key points on all basic areas of bike assembly.
Need more assistance?
Please contact Customer Service for friendly expert advice to help you get your bike ready to ride. We welcome your questions as they will help us to improve the instructions we provide in future.
Our Tract 1 Mountain Bike Deep Navy includes the industry-leading Reid Warranty: lifetime on frame and rigid forks, 2 years on non-consumable parts and a free tune-up to get you going. Test ride in-store or shop online to enjoy a 30 Day Test Ride to guarantee you get a great deal.
Click and Collect
Buy online and collect in-store from our Richmond (Melbourne) flagship store fully assembled by our bike mechanics and ready to ride.
Be advised that your chosen store will phone you within 24 hours of ordering to confirm a collection date based on your availability, the location of stock and your chosen collection store.
Home Delivery
Our bikes are shipped in a box 85% assembled and require basic assembly, like turning handlebars and inserting pedals. Check out our Assembly Videos that give instructions on how to do this.
Buy One, Plant One
Since January 2020 we have partnered with Eden Reforestation Projects to donate enough money to pay a local person a fair wage to grow, plant and guard to maturity 1 native tree for every bike we sell.
We've now planted more than 200,000 trees and counting.
