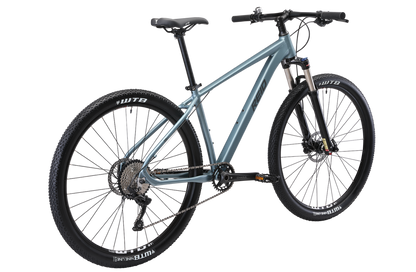

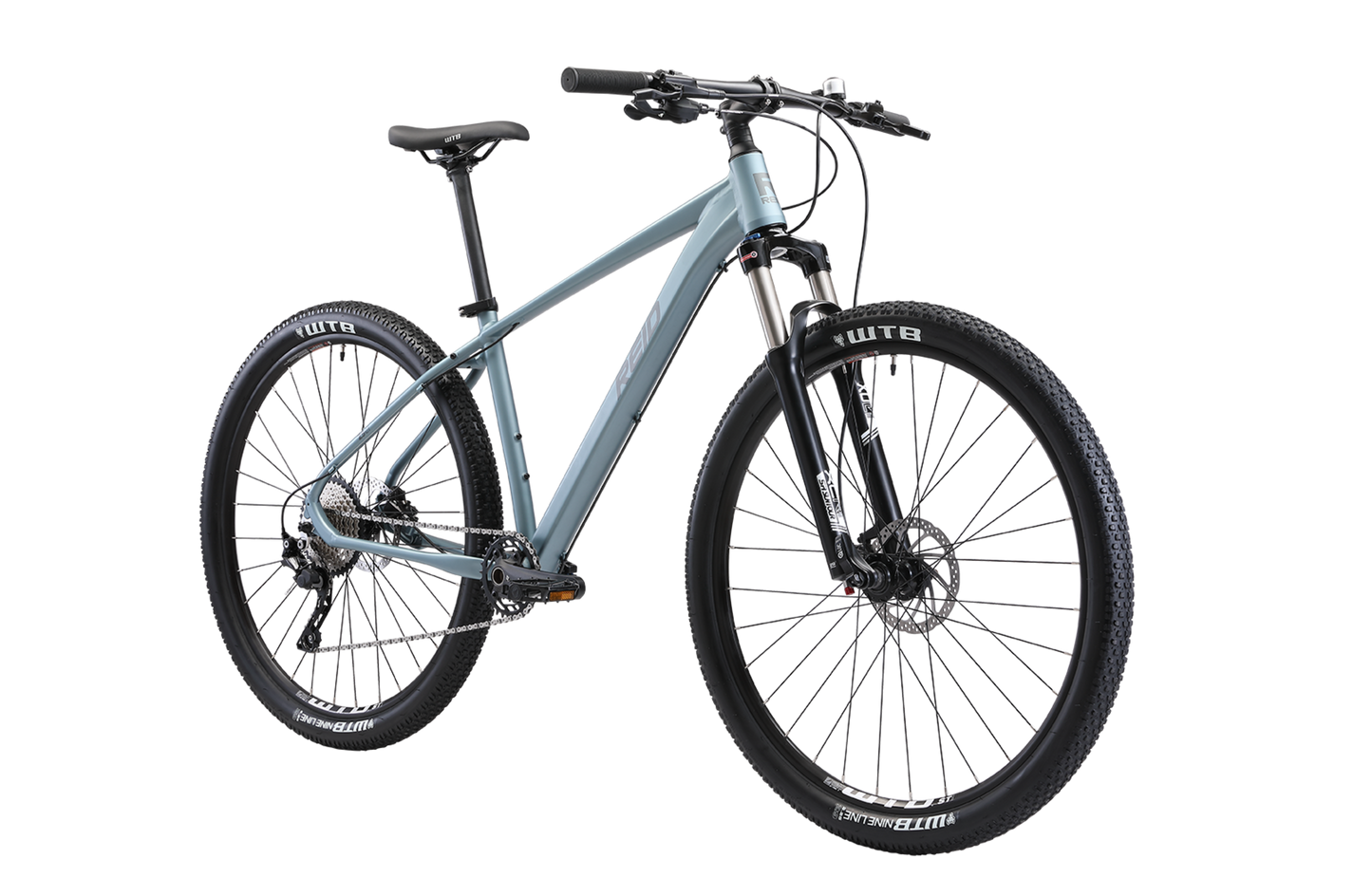

Argon 29er MTB Steel Blue

Argon 29er MTB Steel Blue

Rated 3.8 out of 5 stars
5 Reviews
The new Argon makes it affordable for more riders to enjoy the best of modern Mountain Bike technology. 1 by Shimano gearing, hydraulic discs, thru-axles and an air fork to finish this cross-country and trail 29er.
    Regular price $824.99
    Regular price $1,099.99 Sale price $824.99

    Size Guide

    Find in store
    View full details
    DescriptionSpecificationsGeometrySize GuideShipping & Warranty Assembly

    The new Argon makes it affordable for more riders to enjoy the best of modern Mountain Bike technology. 1 by Shimano gearing, hydraulic discs, a single front thru-axle and an air fork to finish this cross-country and trail 29er.

    Light, fast and designed with MTB geometry to handle the ups and downs of trail riding, the Argon is a versatile all-round Mountain Bike that opens up more possibilities for more riders - so you can expand your limits knowing the bike will ask for more.

    Geometry and spec choices on this bike were made specifically for performance in the dirt. From jumps, rock gardens, technical climbs and fast descents - Argon 29er mountain bike has the answers.

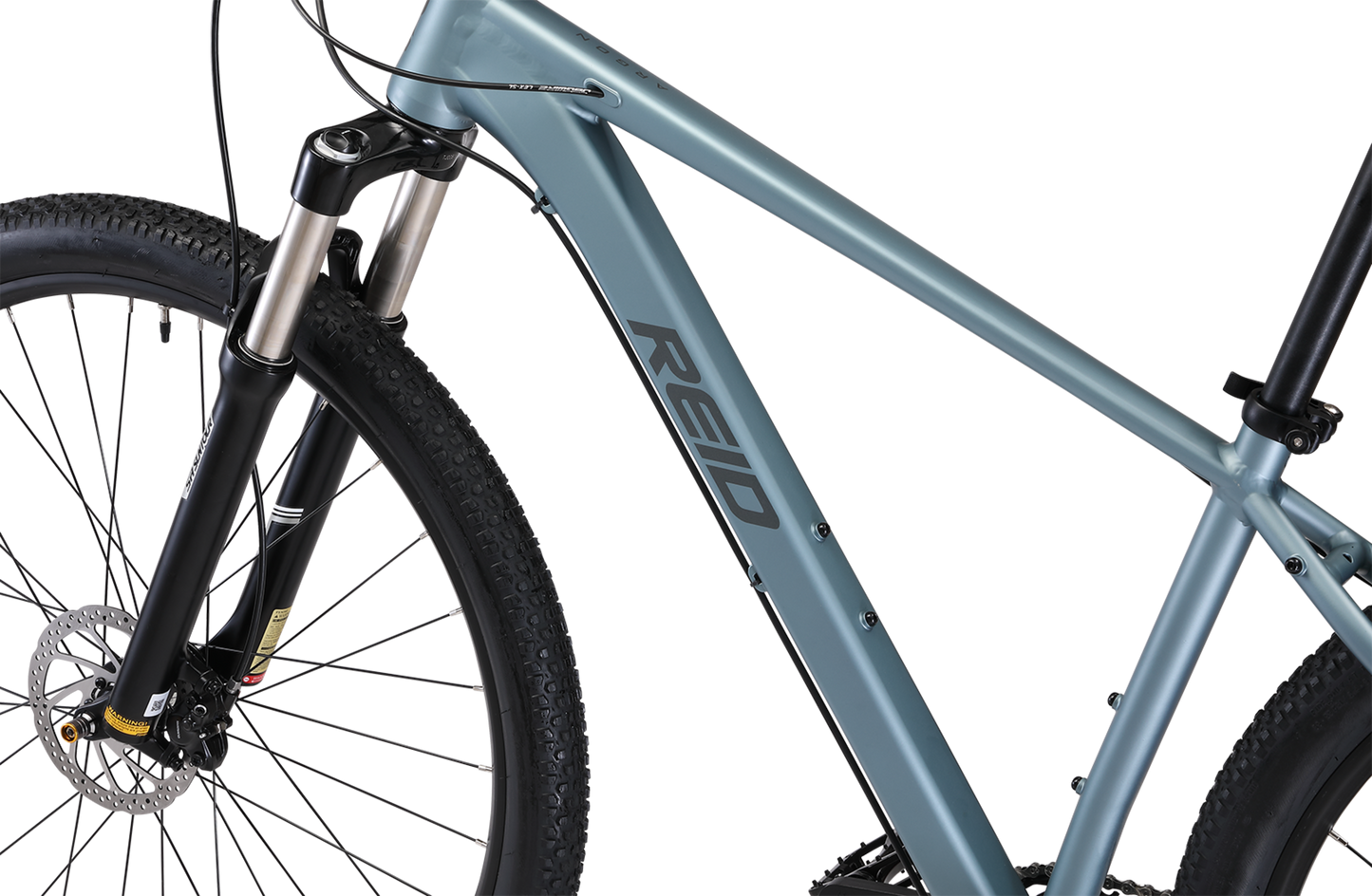

    The frame is a lightweight double-butted 6061 hydroformed alloy with a modern cross-country/trail geometry. Featuring mounts for a rear rack and two drink bottles, you can still set this bike up to perform many duties. The lightweight and easily adjustable Suntour XCR 32 Air 100mm travel suspension fork gives smooth control over broken ground and enough bounce to soak up the hits. The Hydraulic Lock Out feature will be appreciated by riders looking to maximise efficiency on big climbs.

    Braking power and control is delivered by the reliable and smooth Shimano MT200 Hydraulic Discs. Hydraulics offer more power with less lever force required than other systems, which gives better modulation and control in all riding conditions.

    The Argon sees the introduction of Shimano Deore 1 by gearing. Riding with one cog and no front derailleur is the preferred setup for Mountain Biking. 10 gears at the back gives you plenty of range, but the simplicity up front means more clearance over rocks and logs and one less lever to think about when pushing it.

    The other big advance on the Argon is the use of a single front thru-axle. This improves rigidity between wheel and frame and ensures your wheels are always perfectly aligned and securely seated. Coupled with 29 x 2.25” WTB Nineline tyres, this bike holds the trail for a fast and responsive ride. The Argon runs 29er on durable and fast WTB ST i-25 rims to handle the knocks, and a WTB Volt Sport saddle to keep you comfortable throughout.

    Key Features:

    • Tough and lightweight double-butted 6061 hydroformed aluminium alloy frame with modern trail/cross-country (XC) geometry for improved trail performance.
    • Suntour XCR 32 Air 100mm travel suspension fork with hydraulic lock-out for efficiency on the climbs and cushion on the descents.
    • Upgraded Shimano MT200 Hydraulic Discs for remarkable stopping power and modulation control in the dirt and in the wet.
    • Off-road performance with Shimano Deore 1 x 10 gearing. The ideal setup for simplicity and clearance over obstacles like logs and rocks.
    • Finished with quality WTB kit - ST i-25 rims to handle the knocks, and a WTB Volt Sport saddle for comfort.
    • Features a single front thru-axle for improved rigidity between wheel and frame.
    • Tough and light for all day adventures at 13.85kg.


    Frame Reid double butted 6061 hydroformed alloy frame disc brake specific
    Forks Suntour xcr32-air 100mm travel lock out 15mm thru axle
    Wheelset / Rim Wtb st i25 double wall alloy 32 hole 25mm inner width
    Brakes Shimano mt200 hydraulic disc brake
    Tyres Wtb nineline 29 x 2.25” 27tpi.
    Hubs Kt alloy quick release f & r front thru axle 15mm
    Freewheel / Cassette Shimano m4100 deore 10-speed (11-42t)
    Front Derailleur Shimano deore m6000 rapidfire plus (rh only)
    Rear Derailleur Shimano deore m6000
    Handlebars Double-butted alloy 700mm wide 9° backsweep 31.8 barbore
    Stem Alloy threadless 60mm
    Shifters M6000 deore 1 x 10
    Bottom Bracket Prowheel bb73+
    Brake Lever Shimano mt200 hydraulic disc
    Pedals Vp 565 alloy platform 9/16\ steel axle
    Chain Kmc x10
    Grips Velo vlg-1266 mtb rubber 132mm
    Saddle Wtb volt sport
    Seatpost Alloy 27.2mm micro adjust 400mm
    Chainset Prowheel alloy 170mm 32t cnc chainwheel
    Kickstand Not included
    Bell Yes
    We continually work to improve our products so designs and specifications are subject to change. Please contact us to confirm if you have any questions.
    Small Medium Large X Large
    Top tube length 590 605 615 625
    Seat tube length 380 430 480 530
    Head tube length 110 110 120 130
    Seat tube angle 73 73 73 73
    Head tube angle 69 69 69 69
    RC length 455 455 455 455
    BB drop 62 62 62 62
    Fork offset 46 46 46 46
    Front centre 675 689 700 711
    Wheelbase 1121 1137 1148 1159
    Full fork length 510 510 510 510
    *Length measurments are in millimeters, unless otherwise stated.
    SMALL 160cm - 167cm 5'2" - 5'5"
    MEDIUM 167cm - 176cm 5'5" - 5'8"
    LARGE 176cm - 185cm 5'8" - 6'1"
    X LARGE 185cm - 195cm 6'1" - 6'4"
    *If you are outside of the size range or unsure of the right fit for you, give us a call or come in and visit your local store to talk about your best options.

    This series of how-to video guides will take you through each step of assembling and tuning your new Bike. Watch the series or choose the tasks you need help with:

    How to: Unbox video
    How to: Install the seatpost
    How to: Inflate tyres
    How to: Install a-head handlebars
    How to: Adjust disc brakes
    How to: Install pedals
    How to: Install quick release wheels
    How to: Adjust a rear derailleur
    How to: Quick bike fit
    Assembly instructions guide

    If you prefer to work from step-by-step diagrams, you can use this Assembly Instruction Guide for key points on all basic areas of bike assembly.

    Need more assistance?

    Please contact Customer Service for friendly expert advice to help you get your bike ready to ride. We welcome your questions as they will help us to improve the instructions we provide in future.

    Our Argon 29er MTB Steel Blue includes the industry-leading Reid Warranty: lifetime on frame and rigid forks, 2 years on non-consumable parts and a free tune-up to get you going. Test ride in-store or shop online to enjoy a 30 Day Test Ride to guarantee you get a great deal.

    Click and Collect

    Buy online and collect in-store from our Richmond (Melbourne) flagship store fully assembled by our bike mechanics and ready to ride.

    Be advised that your chosen store will phone you within 24 hours of ordering to confirm a collection date based on your availability, the location of stock and your chosen collection store.

    Home Delivery

    Our bikes are shipped in a box 85% assembled and require basic assembly, like turning handlebars and inserting pedals. Check out our Assembly Videos that give instructions on how to do this.

    Buy One, Plant One

    Since January 2020 we have partnered with Eden Reforestation Projects to donate enough money to pay a local person a fair wage to grow, plant and guard to maturity 1 native tree for every bike we sell.

    We've now planted more than 200,000 trees and counting.
