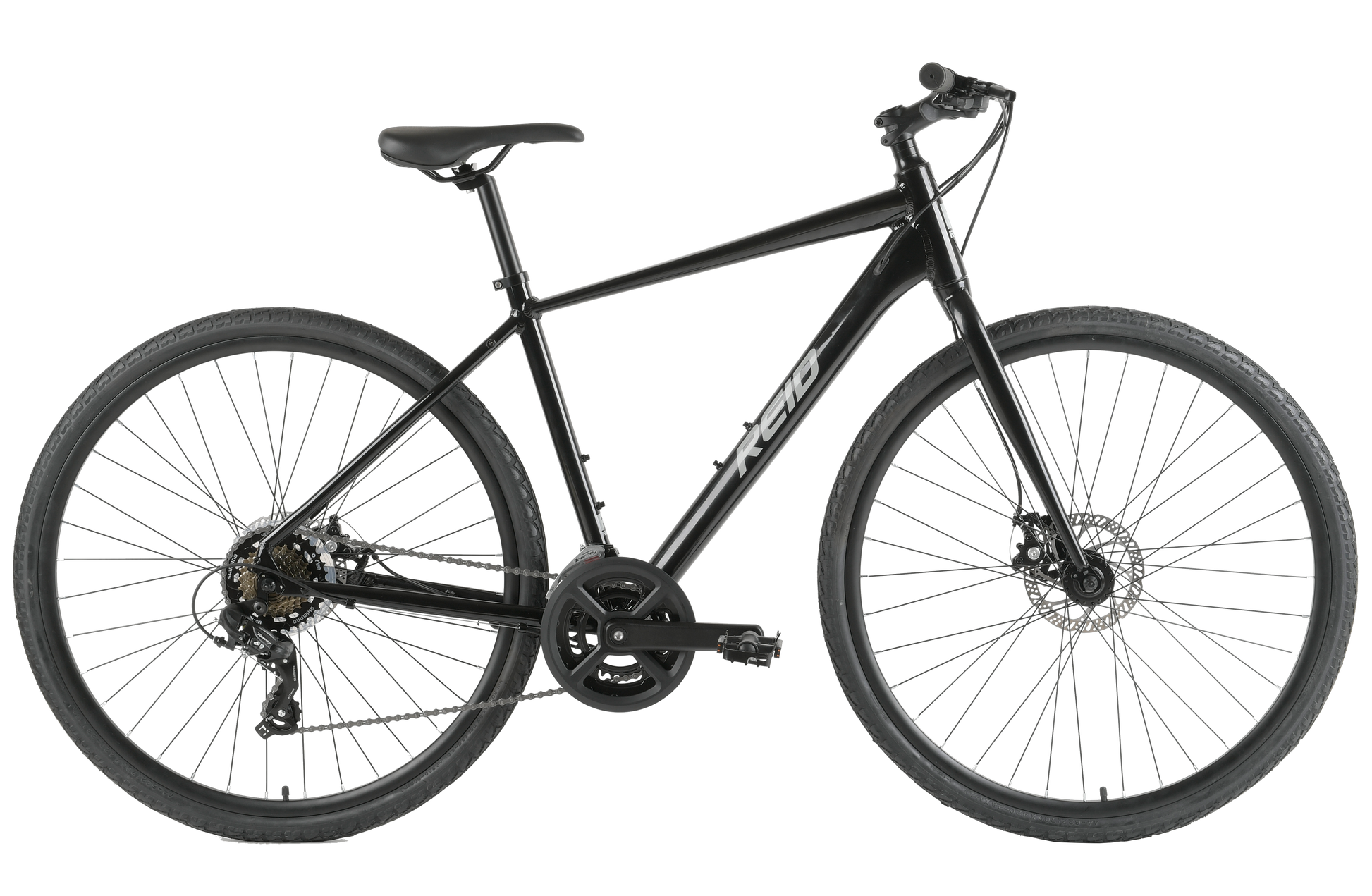

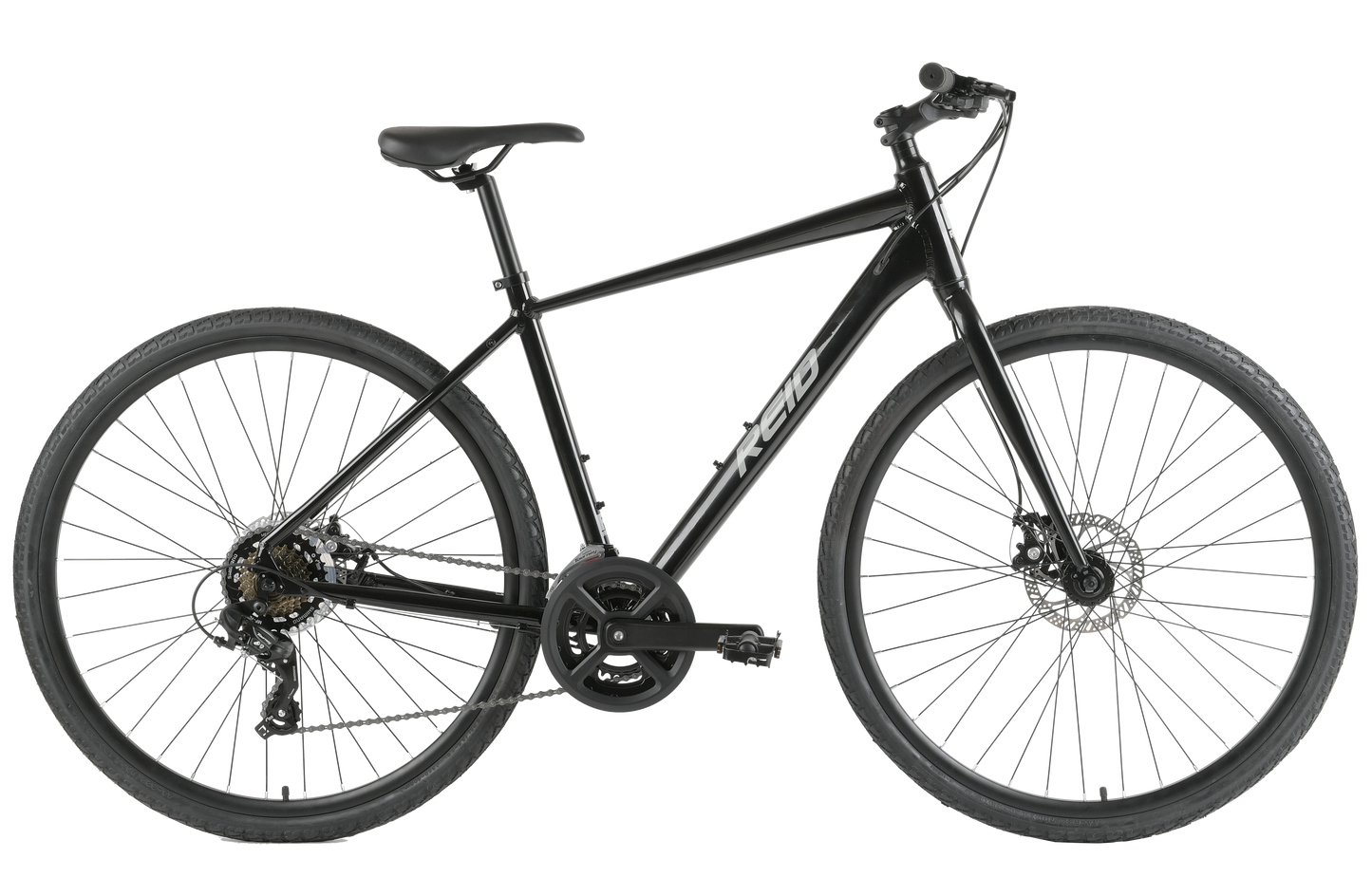

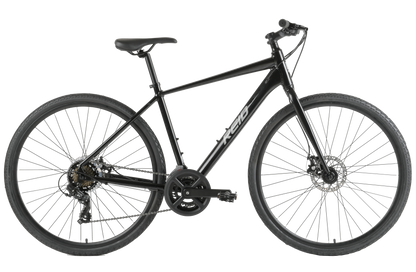

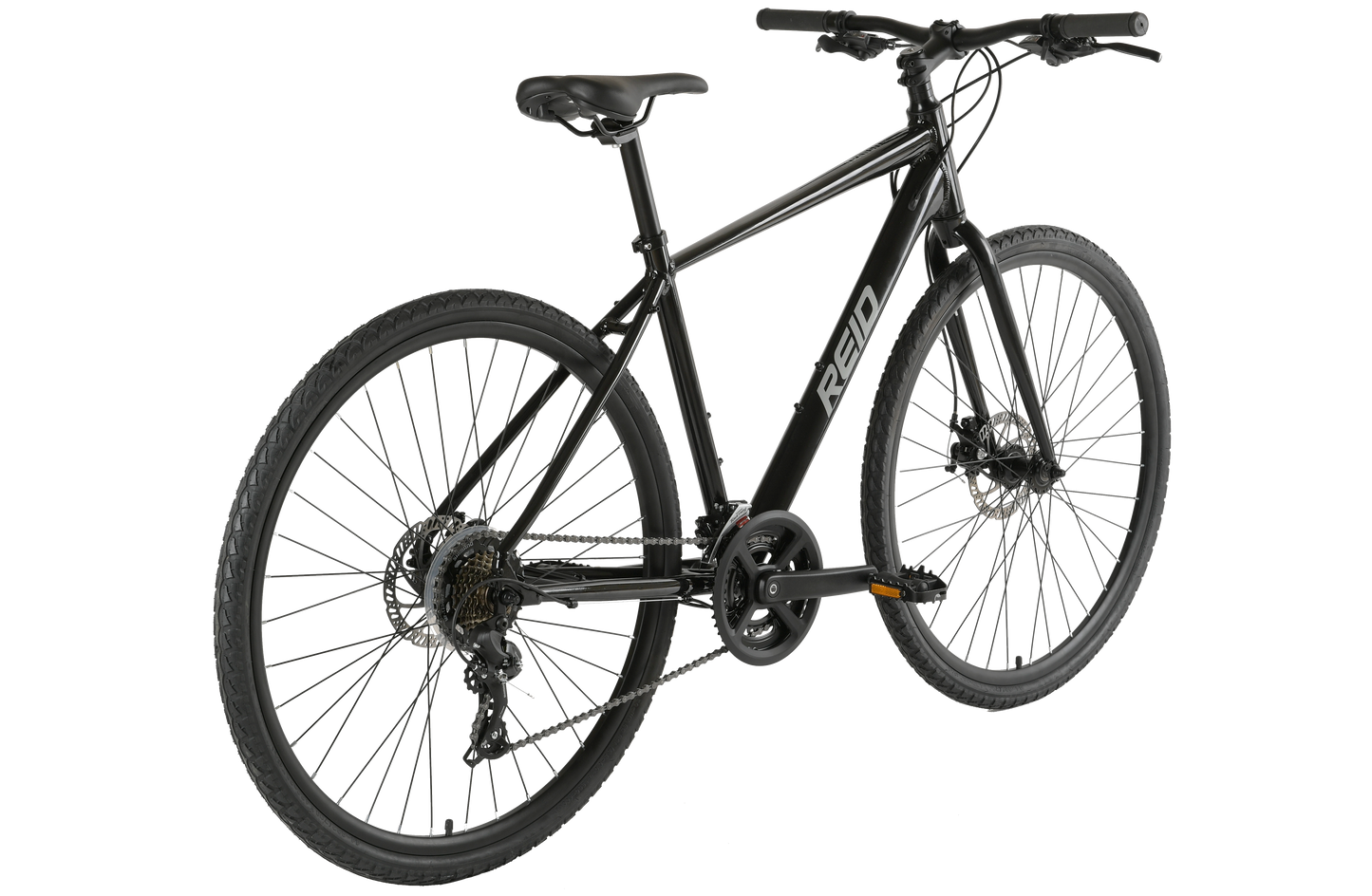

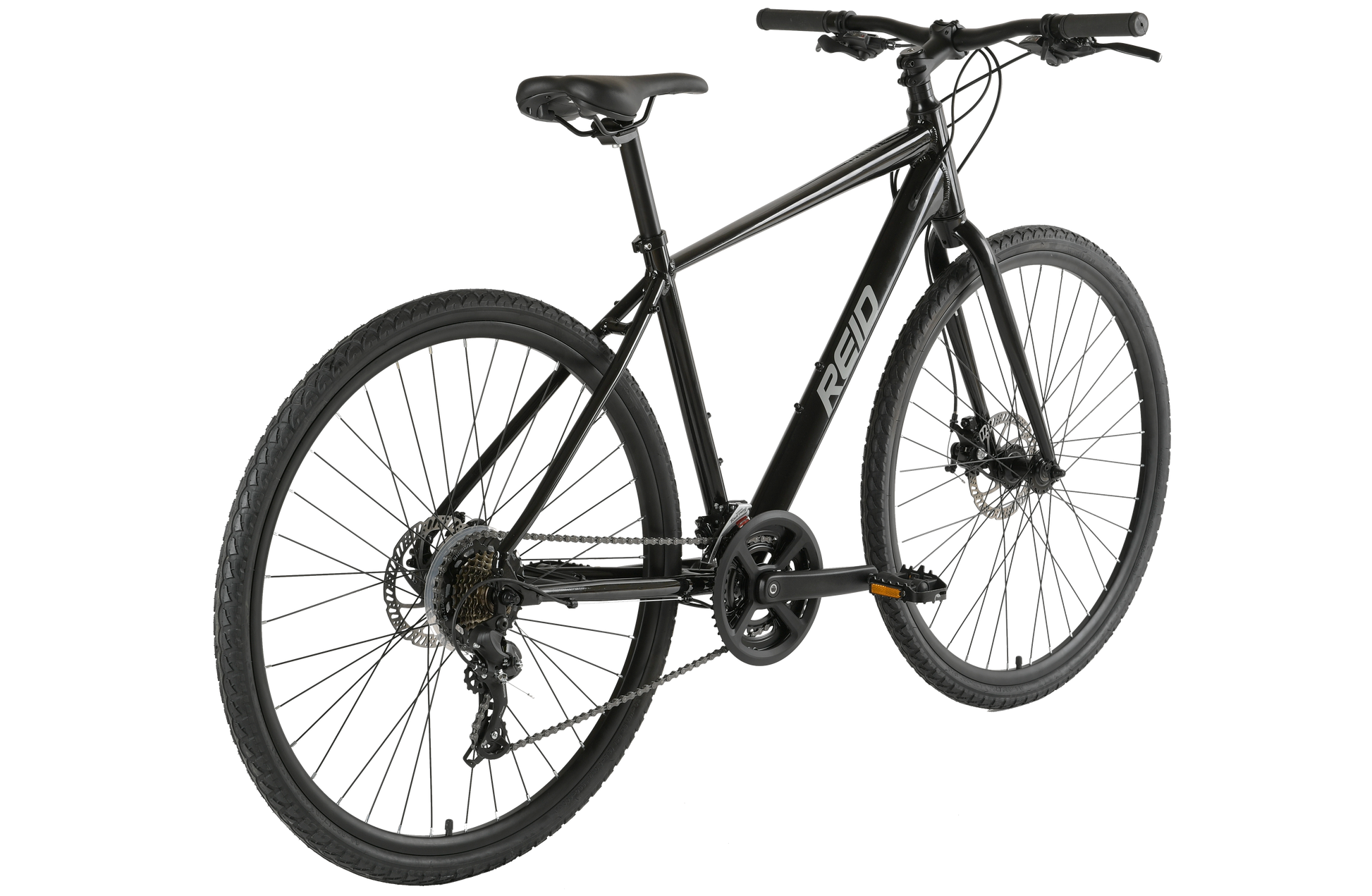

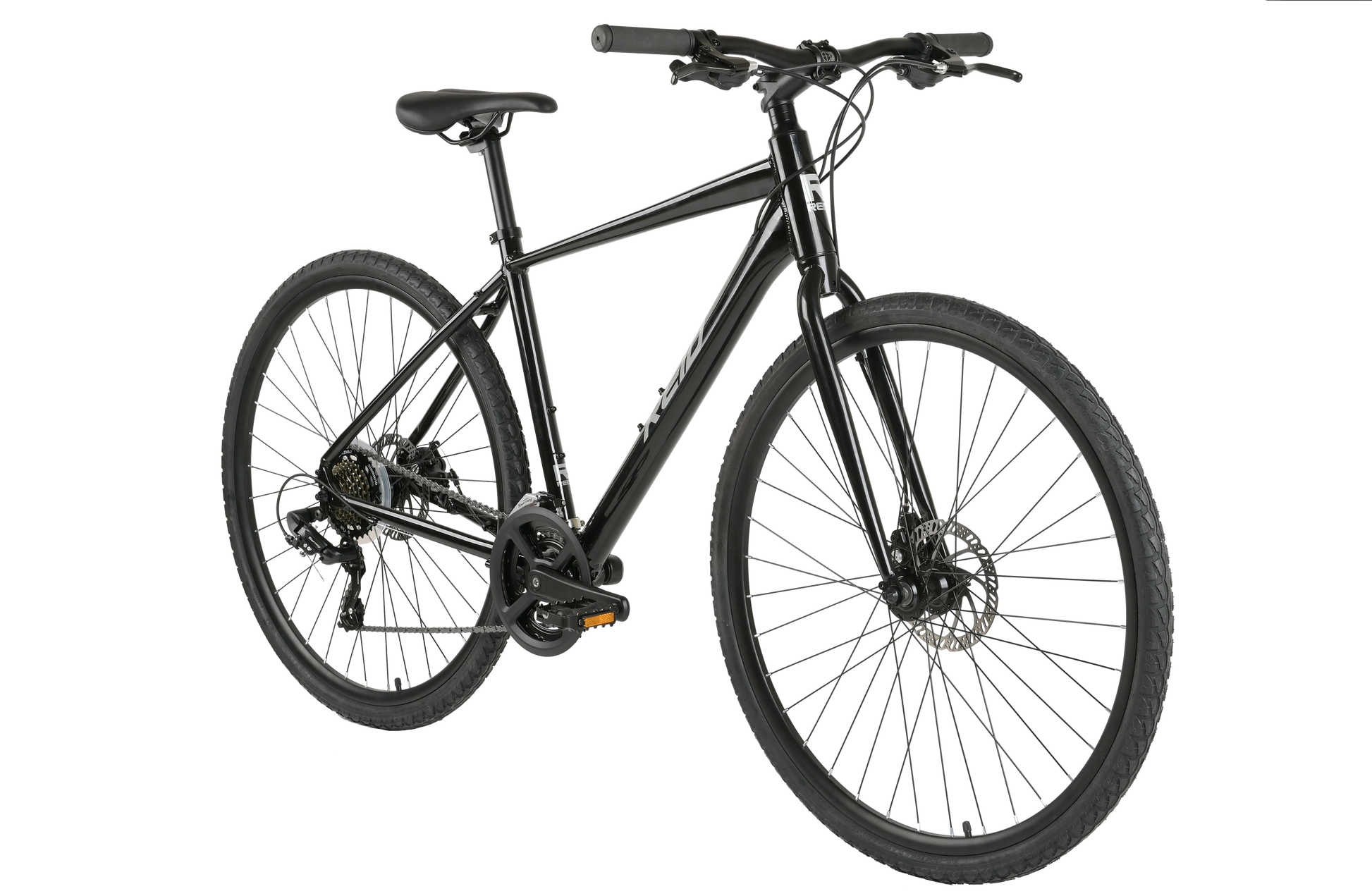

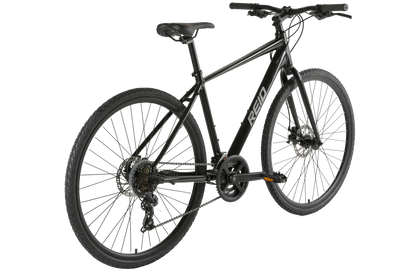

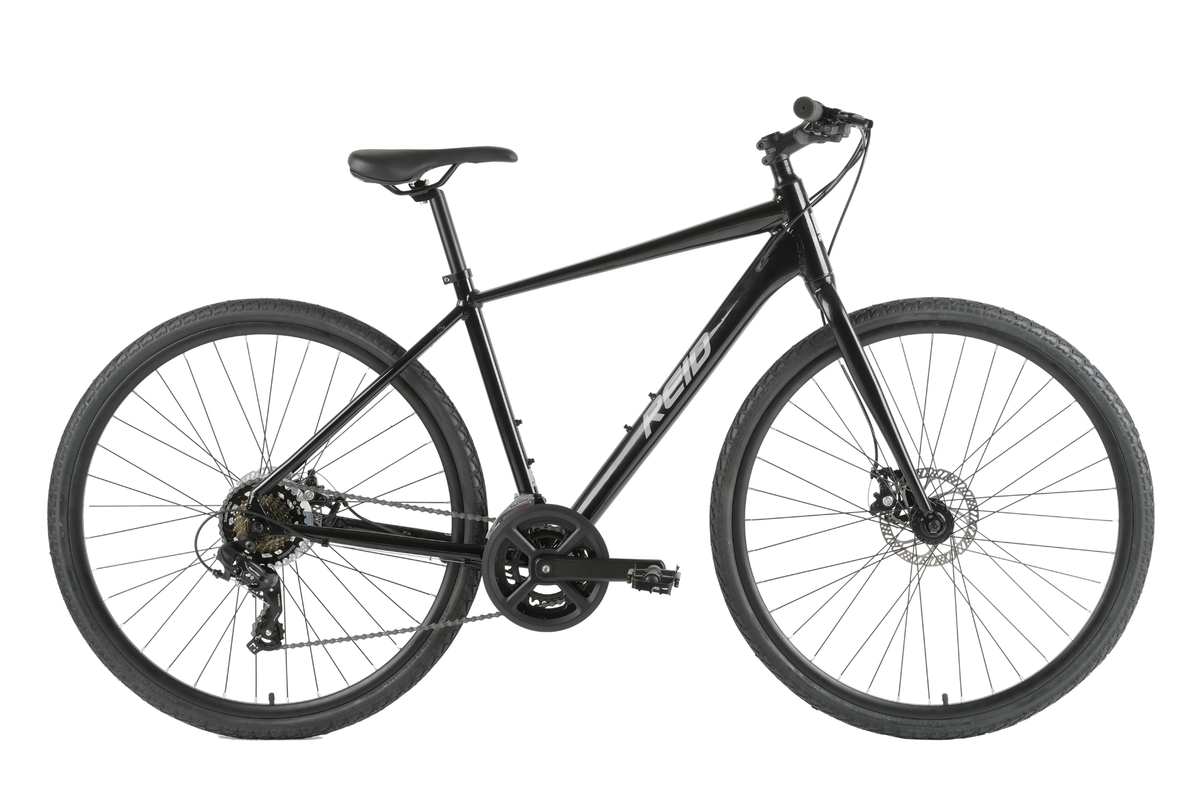

The Transit Disc features comfortable all-round hybrid bike geometry on a lightweight alloy frame. The Transit Disc is designed with versatility in mind so features plenty of rack and mudguard mounts. You can easily set this bike up for all-weather riding or to carry panniers and other luggage for your commute.
Shimano Tourney 14-speed gearing gives this hybrid commuter bike ample gear range for city riding and touring, while keeping the operation light and simple to use.
Tektro MD280 Mechanical Disc Brakes let you ride with confidence and control even in the wet.
Key features:
- Lightweight alloy frame with vibration-damping steel fork.
- Shimano 14-speed Tourney gearing for simple operation.
- Tektro mechanical disc brakes for controlled braking in all conditions.
- Double walled alloy rims with Quick Release alloy hubs.
- Plenty of rack and mudguard mounts.
- Comfortable 700x42c tyres for confident city riding.
Build
| Frame | Reid alloy commuter frame |
|---|---|
| Fork | Reid steel commuter |

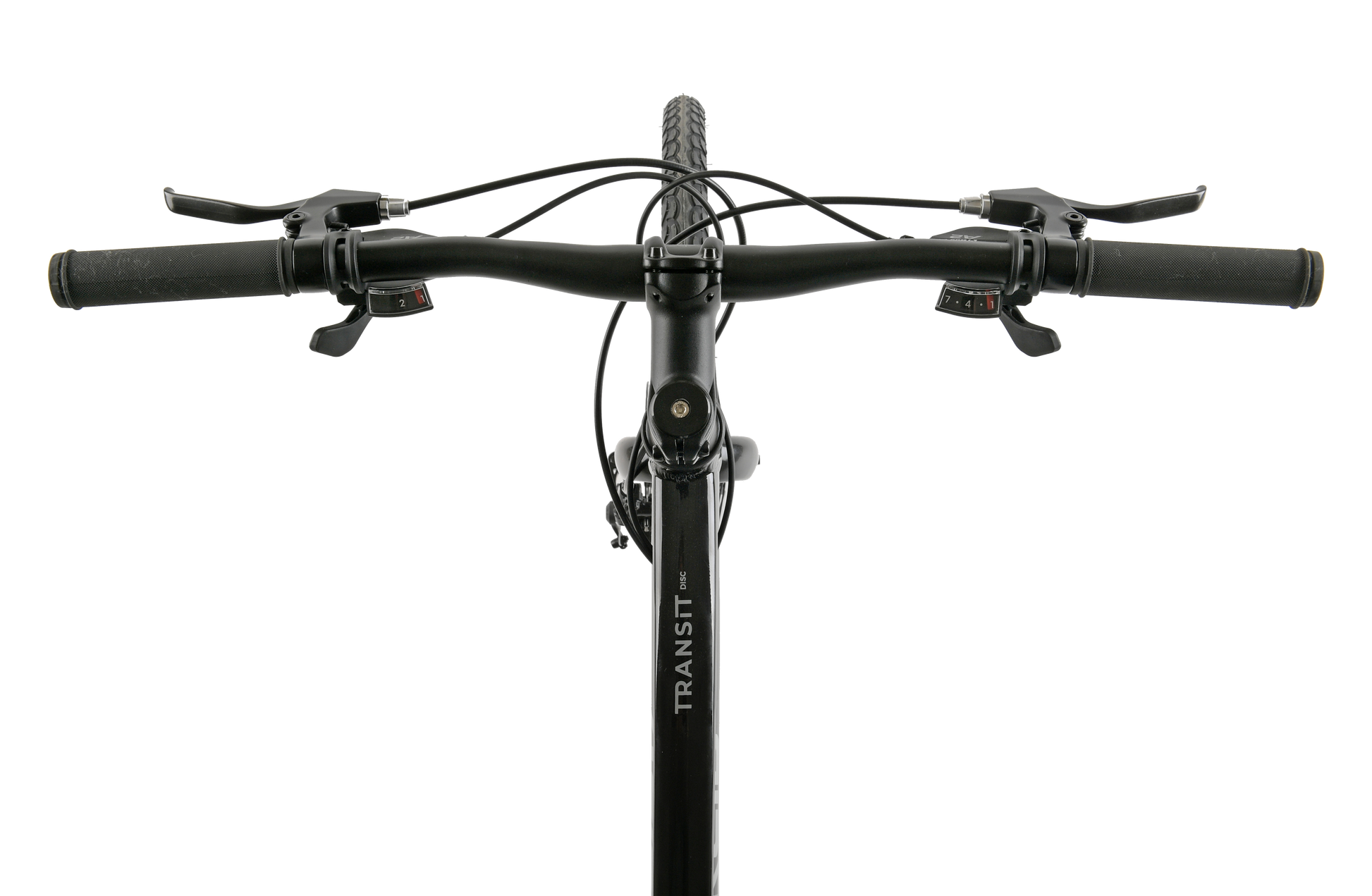

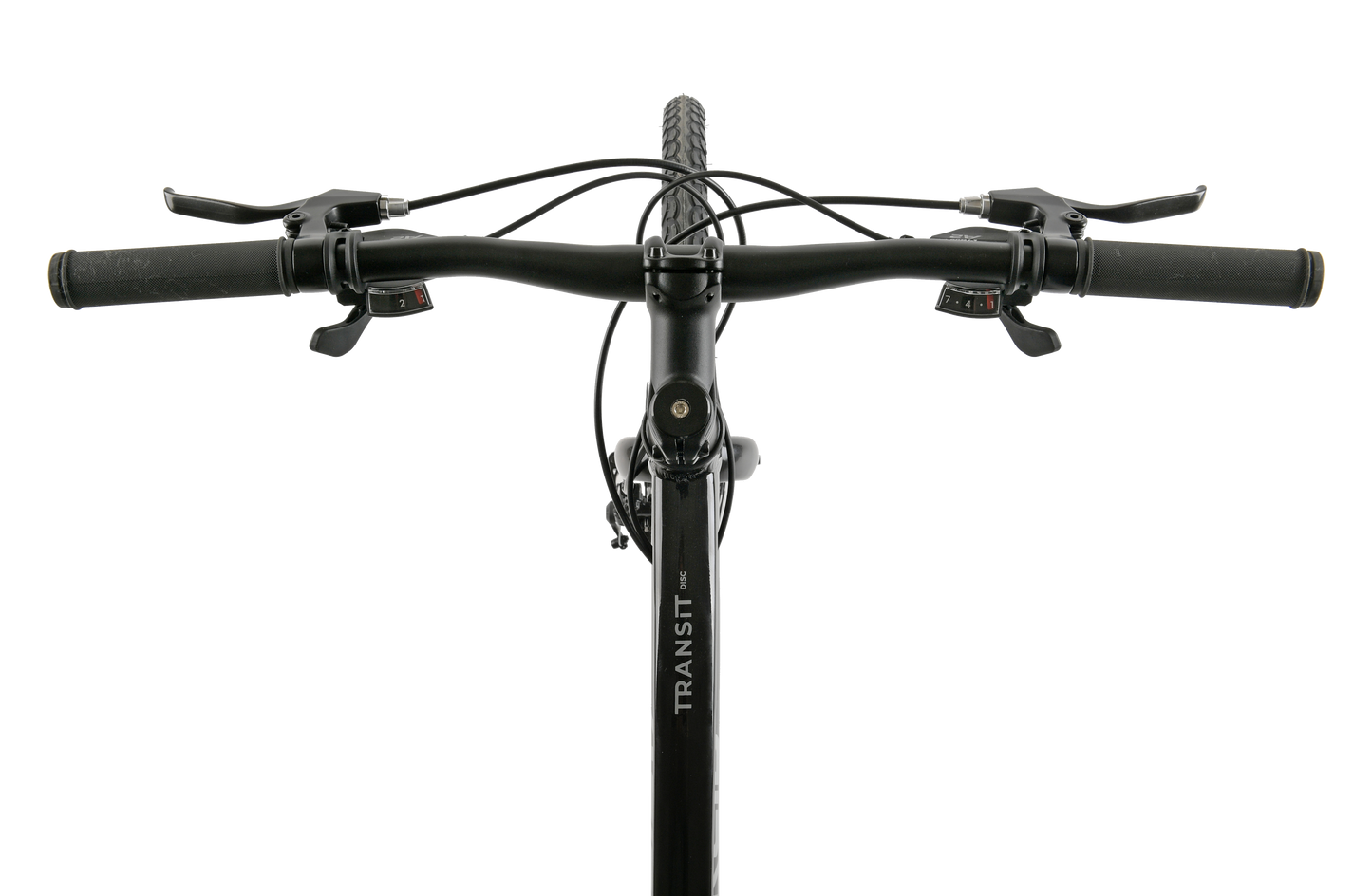

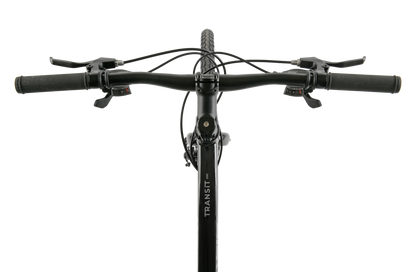

| Handlebars | Reid alloy riser bars 680mm |
| Stem | Reid A head 80mm |
| Pedals | PVC platform, 9/16″ steel axle |
| Saddle | Reid city sport mens |
| Seatpost | Reid alloy 27.2mm micro adjust |
Groupset
| Cassette | Sunrise 8 speed 11-40T |
|---|---|
| Bottom Bracket | Sealed bearing |
| Chain | KMC Z8.3 |
| Brake Lever | Tektro M275 hydro disc brakes |
| Front Derailleur | Shimano TY606 |
| Rear Derailleur | Shimano TX800 8speed |
| Shifters | LTWOO Trigger 16 speed |
| Front Brakes | LTWOO Trigger16 speed |
| Chain Set | Prowheel alloy chainset 46/30T |
Wheels
| Wheelset | Reid double wall alloy |
|---|---|
| Tyres | 700 x 42C commuter |
| Front Hubs | Reid alloy QR |
Extras
| Grips | Reid ergo rubber |
|---|
We reserve the right to modify product specifications and details without prior notification.
| Size | S (45cm) | M (48cm) | L (51cm) | XL (54cm) |
|---|---|---|---|---|
| Top Tube Length | 550 | 560 | 570 | 580 |
| Seat Tube Length | 450 | 480 | 510 | 540 |
| Head Tube Length | 140 | 150 | 160 | 170 |
| Seat Tube Angle | 73.5 | 73.5 | 73.5 | 73.5 |
| Head Tube Angle | 71.5 | 71.5 | 71.5 | 71.5 |
| RC Length | 455 | 455 | 455 | 455 |
| BB Drop | 65 | 65 | 65 | 65 |
| Fork Offset | 48 | 48 | 48 | 48 |
| Front Centre | 605 | 616 | 626 | 682 |
| Wheelbase | 1052 | 1062 | 1073 | 1083 |
| Full Fork Length | 415 | 415 | 415 | 415 |
Length measurements are provided in millimeters and degrees, unless specified otherwise.
| Size | Range (cm) | Range (ft & in) |
|---|---|---|
| Extra Large | 185 - 195 | 6'1" - 6'5" |
| Small | 157 - 165 | 5'2" - 5'5" |
| Medium | 165 - 178 | 5'5" - 5'10" |
| Large | 178 - 185 | 5'10" - 6'1" |
If you are outside of the size range or unsure of the best fit, give us a call and we'll help get you on the right bike.
| Size | Age | Range (cm) | Range (ft & in) |
|---|---|---|---|
| 12" (Balance) | 2 - 4 | 80 - 100 | 2'6" - 3'1" |
| 16" | 4 - 7 | 100 - 120 | 3'4" - 4'0" |
| 20" | 7 - 9 | 120 - 135 | 4'0" - 4'5" |
| 24" | 9 - 11 | 135 - 145 | 4'5" - 4'9" |
If you are outside of the size range or unsure of the right fit for you, give us a call or come in and visit your local store to talk about your best options.
Explore our series of how-to video guides designed to walk you through every stage of assembling and fine-tuning your new Transit Disc MY25 Commuter Bike. Whether you watch the entire series or focus on specific tasks, we've got you covered. Our dedicated Customer Service team is here to offer expert advice and ensure your bike is ready for the road.
How to: Unbox Your Bike
Learn how to safely unpack and assemble your new bicycle.
How to: Install the Seatpost
Step-by-step guide on fitting and securing the seatpost on your bike frame.
How to: Inflate Tires
Properly inflate your bicycle tires to the recommended pressure for a smooth ride.
How to: Install A-Head Handlebars
Mount A-Head handlebars and align them properly.
How to: Adjust Disc Brakes
Fine-tune and align disc brakes for optimal braking performance.
How to: Install Pedals
Correctly attach pedals to the crank arms of your bike.
How to: Install Quick-Release Wheels
Attach and secure wheels with quick-release mechanisms.
How to: Adjust a Rear Derailleur
Adjust the rear derailleur for smooth gear shifting.
How to: Adjust the Front Derailleur
Make adjustments to the front derailleur for precise gear changes.
How to: Quickly Fit Your Bike
Tips for a basic bike fit to ensure comfort and efficiency.
Planning to assemble at home? Remember to install the pedals with care. Make sure to align them square and gently tighten to avoid stripping the threads.
Description
The Transit Disc features comfortable all-round hybrid bike geometry on a lightweight alloy frame. The Transit Disc is designed with versatility in mind so features plenty of rack and mudguard mounts. You can easily set this bike up for all-weather riding or to carry panniers and other luggage for your commute.
Shimano Tourney 14-speed gearing gives this hybrid commuter bike ample gear range for city riding and touring, while keeping the operation light and simple to use.
Tektro MD280 Mechanical Disc Brakes let you ride with confidence and control even in the wet.
Key features:
- Lightweight alloy frame with vibration-damping steel fork.
- Shimano 14-speed Tourney gearing for simple operation.
- Tektro mechanical disc brakes for controlled braking in all conditions.
- Double walled alloy rims with Quick Release alloy hubs.
- Plenty of rack and mudguard mounts.
- Comfortable 700x42c tyres for confident city riding.
Specifications
Build
| Frame | Reid alloy commuter frame |
|---|---|
| Fork | Reid steel commuter |
| Handlebars | Reid alloy riser bars 680mm |
| Stem | Reid A head 80mm |
| Pedals | PVC platform, 9/16″ steel axle |
| Saddle | Reid city sport mens |
| Seatpost | Reid alloy 27.2mm micro adjust |
Groupset
| Cassette | Sunrise 8 speed 11-40T |
|---|---|
| Bottom Bracket | Sealed bearing |
| Chain | KMC Z8.3 |
| Brake Lever | Tektro M275 hydro disc brakes |
| Front Derailleur | Shimano TY606 |
| Rear Derailleur | Shimano TX800 8speed |
| Shifters | LTWOO Trigger 16 speed |
| Front Brakes | LTWOO Trigger16 speed |
| Chain Set | Prowheel alloy chainset 46/30T |
Wheels
| Wheelset | Reid double wall alloy |
|---|---|
| Tyres | 700 x 42C commuter |
| Front Hubs | Reid alloy QR |
Extras
| Grips | Reid ergo rubber |
|---|
We reserve the right to modify product specifications and details without prior notification.
Geometry
| Size | S (45cm) | M (48cm) | L (51cm) | XL (54cm) |
|---|---|---|---|---|
| Top Tube Length | 550 | 560 | 570 | 580 |
| Seat Tube Length | 450 | 480 | 510 | 540 |
| Head Tube Length | 140 | 150 | 160 | 170 |
| Seat Tube Angle | 73.5 | 73.5 | 73.5 | 73.5 |
| Head Tube Angle | 71.5 | 71.5 | 71.5 | 71.5 |
| RC Length | 455 | 455 | 455 | 455 |
| BB Drop | 65 | 65 | 65 | 65 |
| Fork Offset | 48 | 48 | 48 | 48 |
| Front Centre | 605 | 616 | 626 | 682 |
| Wheelbase | 1052 | 1062 | 1073 | 1083 |
| Full Fork Length | 415 | 415 | 415 | 415 |
Length measurements are provided in millimeters and degrees, unless specified otherwise.
Size Guide
| Size | Range (cm) | Range (ft & in) |
|---|---|---|
| Extra Large | 185 - 195 | 6'1" - 6'5" |
| Small | 157 - 165 | 5'2" - 5'5" |
| Medium | 165 - 178 | 5'5" - 5'10" |
| Large | 178 - 185 | 5'10" - 6'1" |
If you are outside of the size range or unsure of the best fit, give us a call and we'll help get you on the right bike.
Assembly
Explore our series of how-to video guides designed to walk you through every stage of assembling and fine-tuning your new Transit Disc MY25 Commuter Bike. Whether you watch the entire series or focus on specific tasks, we've got you covered. Our dedicated Customer Service team is here to offer expert advice and ensure your bike is ready for the road.
How to: Unbox Your Bike
Learn how to safely unpack and assemble your new bicycle.
How to: Install the Seatpost
Step-by-step guide on fitting and securing the seatpost on your bike frame.
How to: Inflate Tires
Properly inflate your bicycle tires to the recommended pressure for a smooth ride.
How to: Install A-Head Handlebars
Mount A-Head handlebars and align them properly.
How to: Adjust Disc Brakes
Fine-tune and align disc brakes for optimal braking performance.
How to: Install Pedals
Correctly attach pedals to the crank arms of your bike.
How to: Install Quick-Release Wheels
Attach and secure wheels with quick-release mechanisms.
How to: Adjust a Rear Derailleur
Adjust the rear derailleur for smooth gear shifting.
How to: Adjust the Front Derailleur
Make adjustments to the front derailleur for precise gear changes.
How to: Quickly Fit Your Bike
Tips for a basic bike fit to ensure comfort and efficiency.
Planning to assemble at home? Remember to install the pedals with care. Make sure to align them square and gently tighten to avoid stripping the threads.
Our Transit Disc MY25 Commuter Bike includes the industry-leading Reid Warranty: lifetime on frame/rigid forks and 2 years on non-consumable parts. Shop online to enjoy a 30 Day Test Ride to guarantee you get a great deal.
Home Delivery
Our bikes are shipped in a box 85% assembled and require basic assembly, like turning handlebars and inserting pedals. Check out our Assembly Videos that give instructions on how to do this.
Buy One, Plant One
Since January 2020 we have worked with not-for-profit reforestation partners to donate enough money to pay a local person a fair wage to grow, plant and guard to maturity 1 native tree for every bike we sell.
We've now planted more than 395,000 trees and counting.
- Reviews
- Questions
Good Bike for the price
Early days, but for the price point the bike is good and over all comfortable to ride. Handles steep hills with an ease. Only gripe maybe the gear changing is a bit noisy. Fun to ride.
Reid Cycles
Hi William, Thanks for leaving a review! Glad to hear you are enjoying your new bike. Noisy gear changing is potentially a sign of under-tensioned derailleurs, or poorly set limit screws. If it's a cable tension issue, it will likely continue to get louder as the new cables on your bike stretch and get looser. You can follow this video guide for the rear derailleur: https://youtu.be/GBsRcNPRK3g?si=NlNNCgq8MTUzn3kN Or this one for the front: https://youtu.be/vRw2Y9WNmQ0?si=WfWyKpzC_n50stIl If it continues to get worse I recommend heading into a local bike shop for a gear tune! Kind regards, Lauren
Happy rider
Having had a Reid "commuter" bike a few years ago I always wanted a replacement and this transit fills the bill completely. It is comfortable, fast and easy to ride, the quality of the fit and finish is excellent. I will now be ordering some accessories and parts like a rear mudguard, kick stand and better grips. My old bike had superb grips for long distance, these stock grips just don't have the same feel.
Good value for money
Good bike for simple commuting and although a little clunky, it's extremely good value for money. Very happy!
