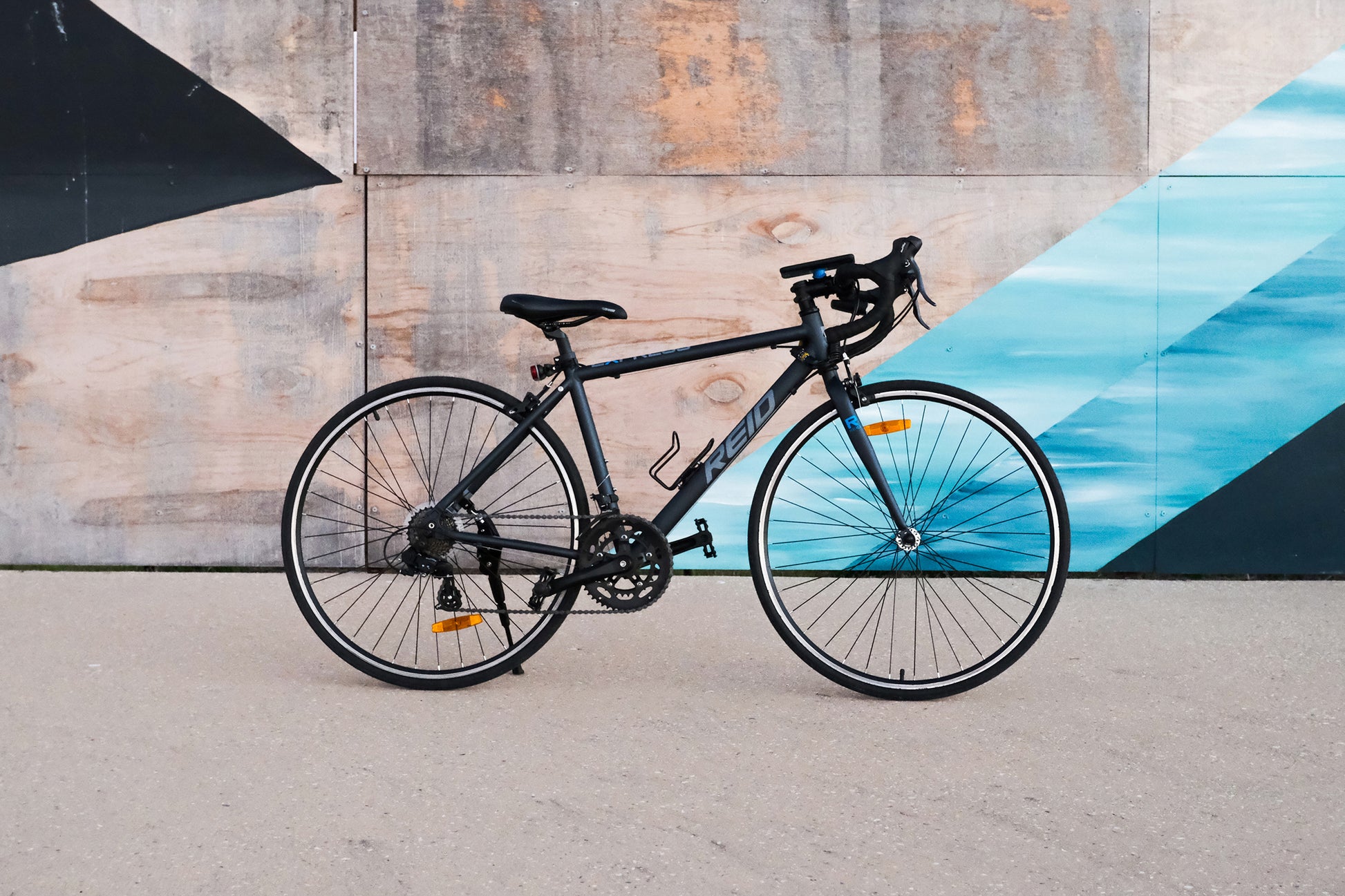

The Express drop bar road bike features everything you need to get started in Road riding, fitness training, fast commuting or triathlons. Australia’s best value STI road bike.
Express Drop Bar Road Bike Features Everything You Need To Get Started Road Riding With Shimano Total Integration.
The Express is a great option for those riders looking to get into cycling and are looking for an entry-level road bike that doesn't skimp on quality. The Express is one of our best value road bikes on offer, built for performance, comfort and those riders on a budget.
The Express road bike features a lightweight Reid 6061 Aluminium Alloy Frame and Steel Fork. This simple yet versatile racer is built with relaxed geometry making for a more comfortable upright ride without sacrificing speed and agility.

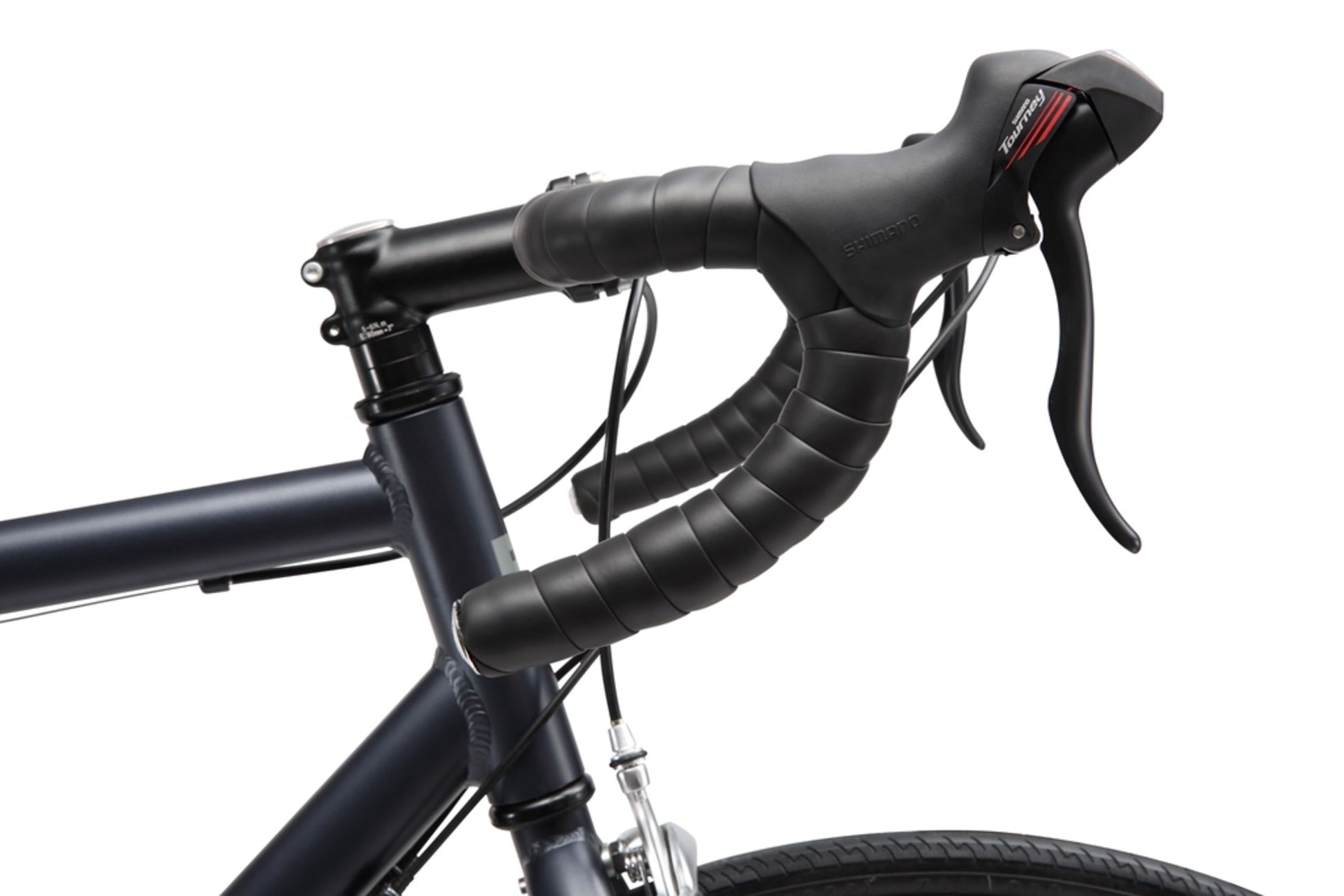

This drop bar road bike features Shimano A070 STI integrated brakes and gear levers making the rider feel safe and in control while moving at speed.
STI stands for Shimano Total Integration – the handy integration of brake and gear levers built into one package, so you don’t have to move your hands off the brake levers to change gears. Pushing the brake lever sideways shifts the gears in one direction. A small lever on the inside of the hood of the levers shifts the gears in the other direction. This makes it easier to change gear quickly and accurately, while keeping your hands on the bars and in control.
Additional features like Tektro R312 dual pivot caliper make stopping on a dime a breeze. Kenda K196 700 x 26C Commuter tyres and Reid Double Wall Alloy rims offer a strong wheelset ready for anything you throw at them on the road.
Key Features:
- Shimano STI integrated brake and gear levers make for easy and safe control while moving at speed
- Compact double crankset with 14-speeds for a wide, evenly spaced gear range
- Kenda K196 700 x 26C Commuter Tyres and Reid Double Wall Alloy Rims
- Proven Promax alloy dual-pivot brakes for reliable control
- Light, fast double wall alloy wheelset for fast rolling
- Comfortable Reid Sport Saddle and Reid Bartape
- Lightweight Design - 10.81kg
| Frame | Reid 6061 aluminium alloy road frame |
| Forks | Reid steel commuter fork w/ rack mounts |
| Weight | 10.81 kg |
| Wheelset / Rim | Reid double wall alloy |

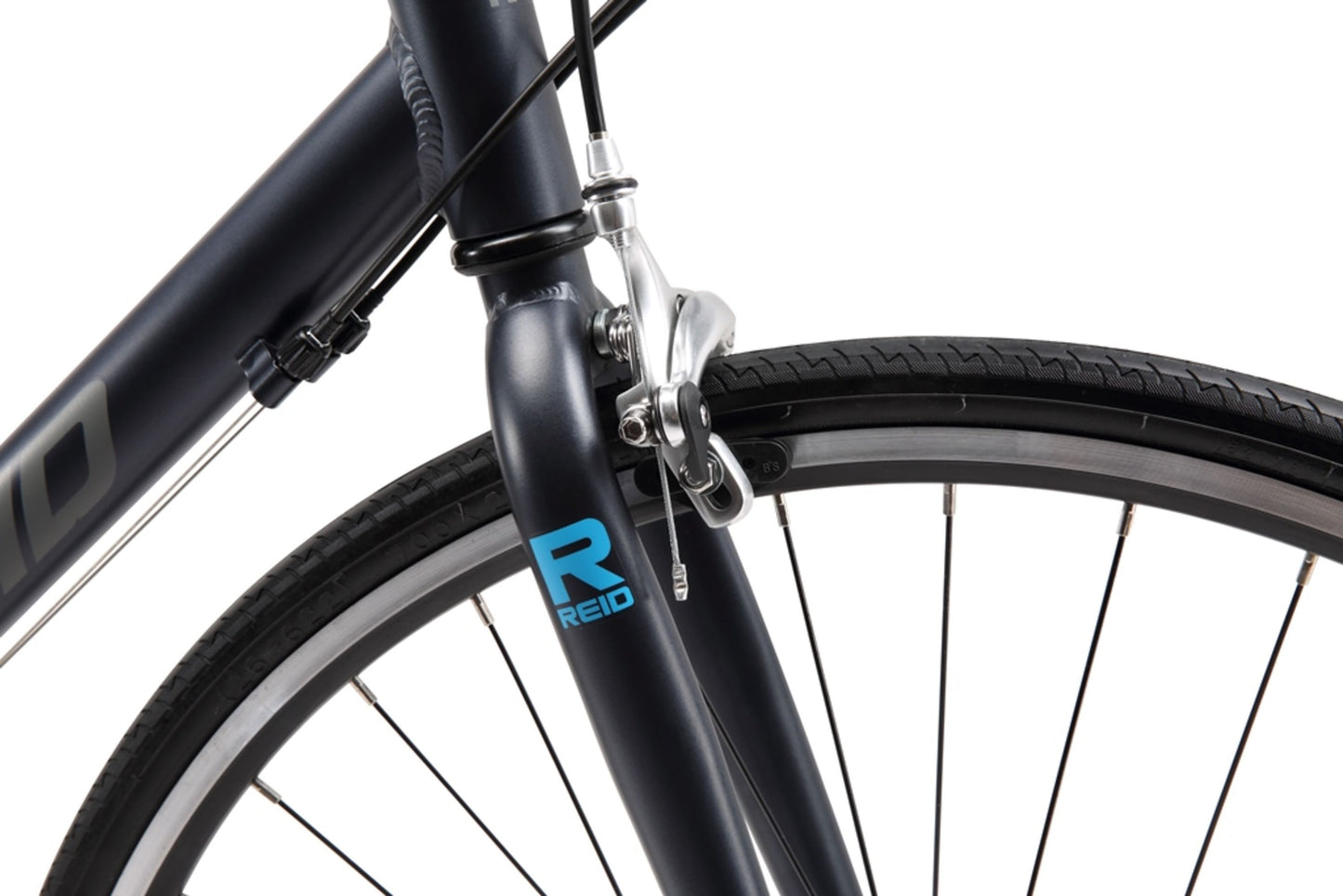

| Brakes | Tektro r312 dual pivot caliper |
| Tyres | Kenda k196 700 x 26c commuter |

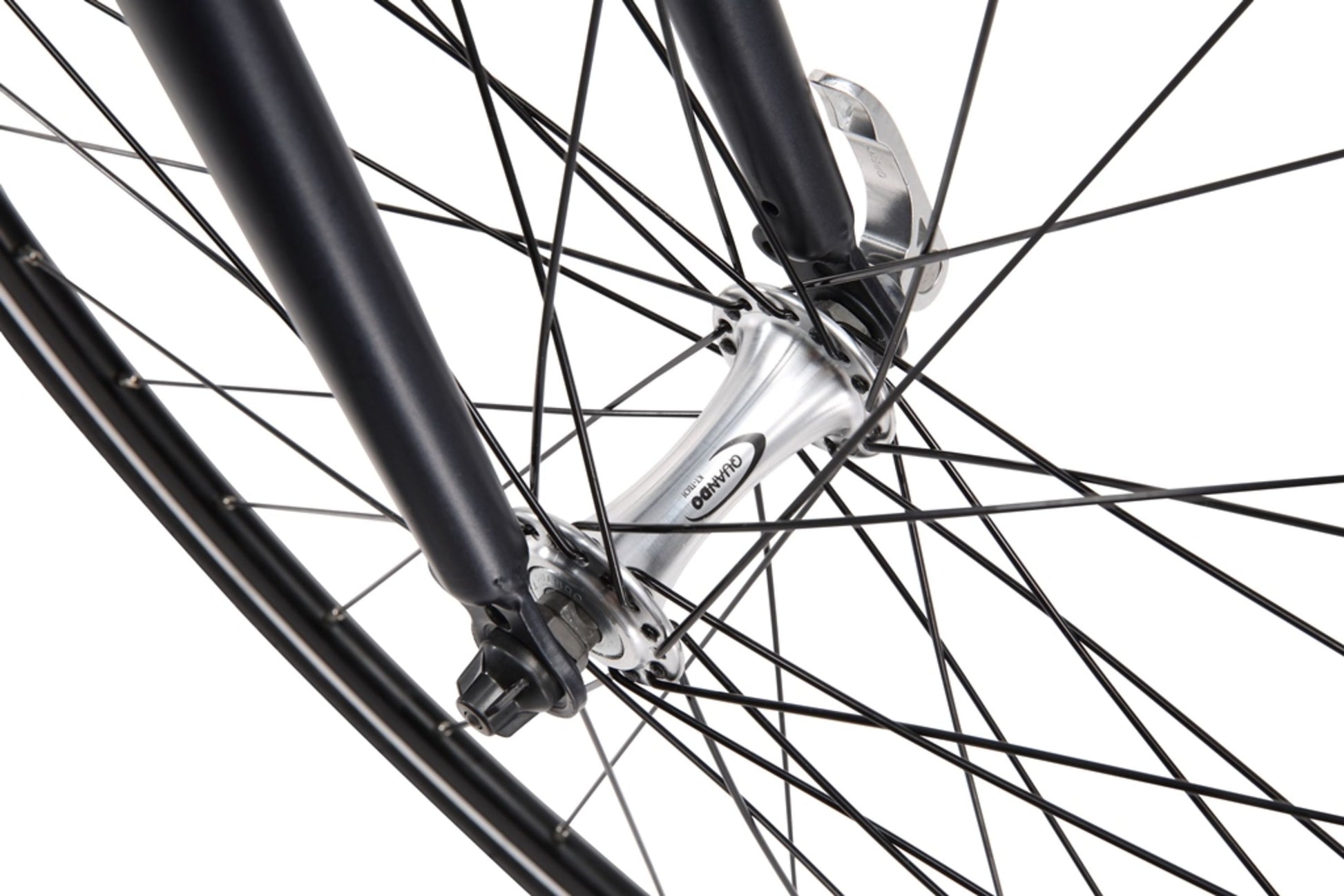

| Hubs | Kt alloy quick release f & r |
| Freewheel / Cassette | Shimano 7-speed freewheel (14-28t) |
| Front Derailleur | Shimano tourney a070 |

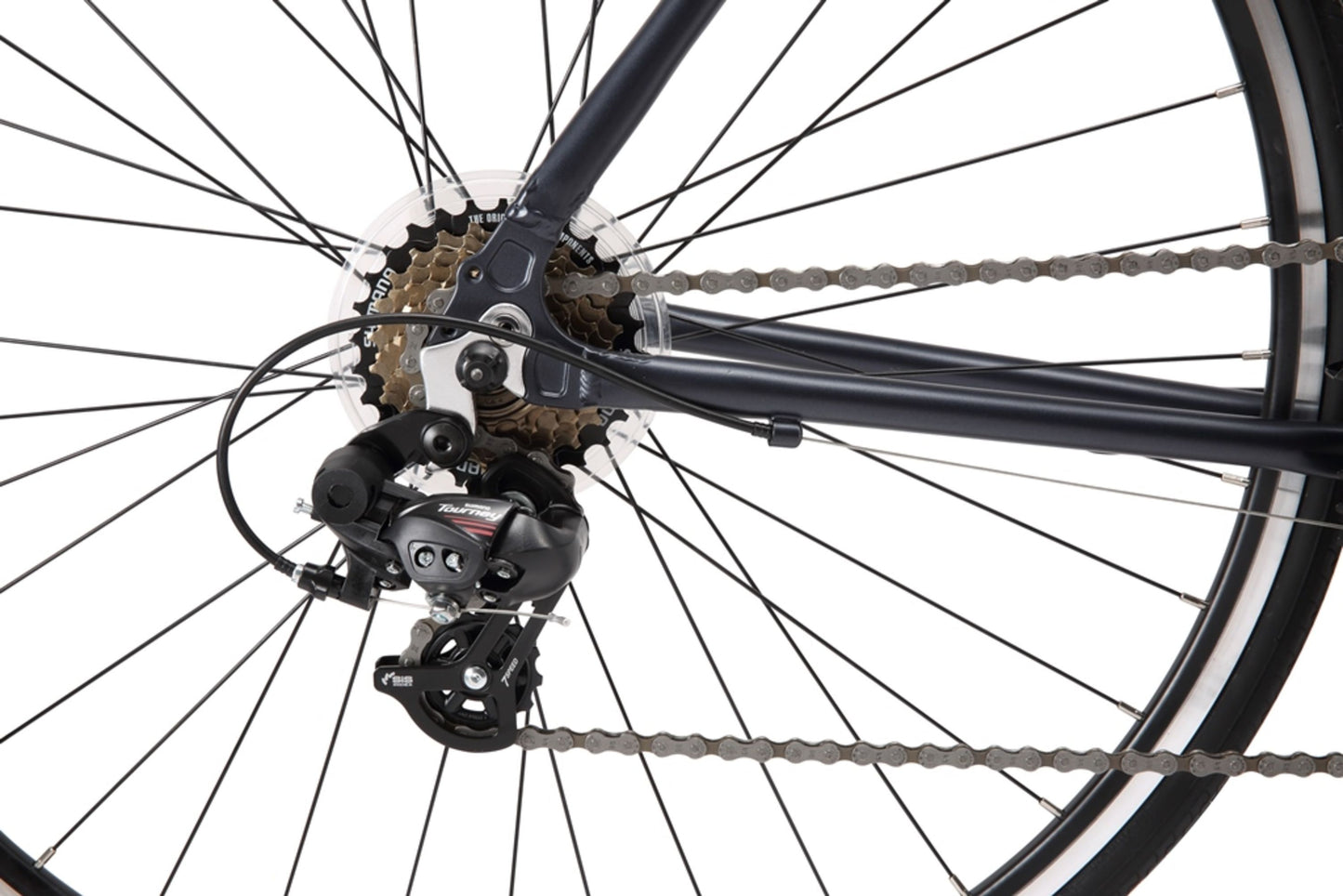

| Rear Derailleur | Shimano tourney a070 |
| Handlebars | Zoom alloy dropbar 420mm wide reach 80mm drop 124mm 31.8 barbore |
| Stem | Reid alloy race stem threadless 90mm 7° pitch |
| Shifters | Shimano tourney a070 |
| Bottom Bracket | Neco b908 sealed bearing |
| Brake Lever | Shimano a070 sti |
| Pedals | Vp-320 alloy platform 9/16\ steel axle |
| Chain | Kmc z33 |
| Grips | Reid bar tape |
| Saddle | Reid sport |
| Seatpost | Alloy 27.2mm micro adjust 250mm |
| Chainset | Reid alloy compact 170mm 34/50t steel |
| Kickstand | Not included |
| Bell | Yes |
| Small | Medium | Large | X Large | |
| Top tube length | 530 | 550 | 573 | 590 |
| Seat tube length | 470 | 510 | 510 | 570 |
| Head tube length | 140 | 160 | 180 | 200 |
| Seat tube angle | 74 | 74 | 73 | 73 |
| Head tube angle | 72 | 72 | 72 | 72 |
| RC length | 420 | 420 | 420 | 420 |
| BB drop | 70 | 70 | 70 | 70 |
| Fork offset | 45 | 45 | 45 | 45 |
| Front centre | 587 | 598 | 609 | 623 |
| Wheelbase | 997 | 1008 | 1020 | 1033 |
| Full fork length | 378 | 378 | 378 | 378 |
| CM | FEET | |
| SMALL | 160cm - 167cm | 5'2" - 5'5" |
| MEDIUM | 167cm - 176cm | 5'5" - 5'8" |
| LARGE | 176cm - 185cm | 5'8" - 6'1" |
| X LARGE | 185cm - 195cm | 6'1" - 6'4" |
This series of how-to video guides will take you through each step of assembling and tuning your new Bike. Watch the series or choose the tasks you need help with:
Assembly instructions guide
If you prefer to work from step-by-step diagrams, you can use this Assembly Instruction Guide for key points on all basic areas of bike assembly.
Need more assistance?
Please contact Customer Service for friendly expert advice to help you get your bike ready to ride. We welcome your questions as they will help us to improve the instructions we provide in future.
Our Express Road Bike Gunmetal Grey includes the industry-leading Reid Warranty: lifetime on frame and rigid forks, 2 years on non-consumable parts and a free tune-up to get you going. Test ride in-store or shop online to enjoy a 30 Day Test Ride to guarantee you get a great deal.
